Durable Wear Resistant Round HDPE Plastic Truck Mat Outrigger Leg Support Pads
Portable Temporary UHWM PE Round Outrigger Pad Mobile Truck Plastic Foot Pads
Durable Wear-resistant Round HDPE Plastic Truck Mat Outrigger Leg Support Pads
Heavy duty outrigger pads is made of UHMWPE, it is tough, Longlasting and Durable. It is a high load capacity outrigger crane padwith a large vertical load bearing capacity.UHMWPE plastic outrigger pads are used to support vehicles and cranes without warping, splintering , bending or any other damage.
Benefits of Crane Otrigger Pads:
Work in sub zero temperatures.
Easy to mount, replace.
Reduced downtime.
Lower maintenance costs.
Durable & Long Lasting.
Cost Efficient compared to Steel or Aluminu
Safer to use in the field compared to other wood based pads.
Product Specification:
| Size | Load Capacity | Weight |
| 800*50mm | 35Ton | 25kg |
| 800*60mm | 40 Ton | 30 kg |
| 900*50mm | 45 Ton | 30 kg |
| 900*60mm | 50 Ton | 35 kg |
| 1000*50mm | 55 Ton | 29.25kg |
| 1000*60mm | 60Ton | 40 kg |
| 1000*70mm | 75 Ton | 50.75kg |
| 1000*80mm | 80 Ton | 61.5kg |
| 1200*60mm | 90 Ton | 66.4kg |
| 1200*70mm | 110 Ton | 77.45kg |

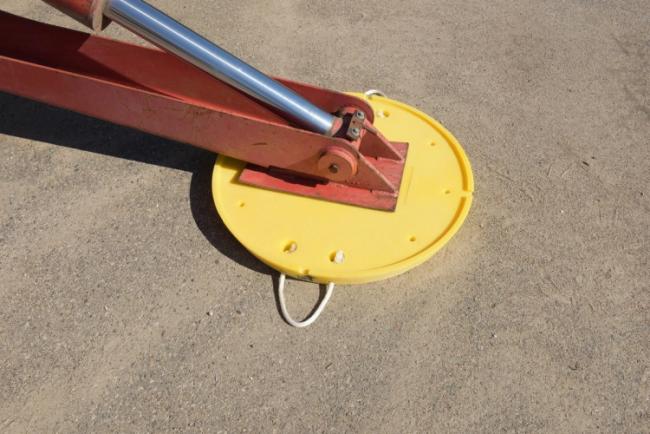

UHMW Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!
UHMW Plastic Crane Outrigger Pads Features:
* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.
* Long lasting service life
One outrigger pad can be used forever! Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.
* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.
Company Profile :
Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.
We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
