RGBW DMX512 24V Low Voltage Outdoor Wall Wash Light

Price Negotiable
Price: Negotiate
MOQ: One Piece
Delivery Time: 5-8 work days
Brand: SHWellShow
Product Description

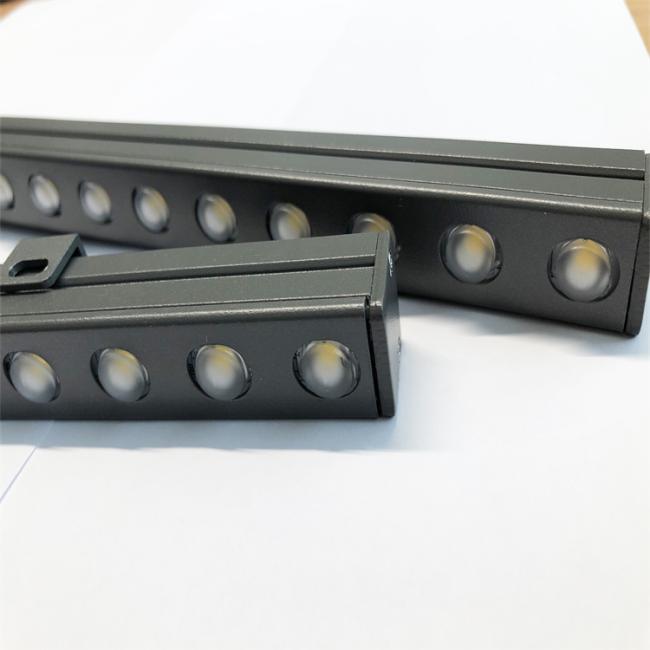

Outdoor Led Wall Wash Lights 24V Low Voltage RGBW DMX512 Wall Wash Lighting Led

LED wall washing lamps widely used are basically 1W high-power LED tubes (each LED tube will have a high light effect lens made of PMMA, whose main function is to distribute the light emitted by the LED tube twice), which are arranged in a single line (second-line or multi-line arrangement, I classify them as LED projective lamps). The LED tubes of most LED wall washing lamps share a radiator, and their luminous angles are generally narrow (about 20 degrees), medium (about 50 degrees) and wide (about 120 degrees). The farthest effective projection distance of high-power LED wall washing lamps (narrow Angle) is 5-20 meters. Its commonly used power types include 9W, 12W, 18W, 24W, 36W, etc., and its commonly used dimensions are generally 300, 500, 600, 900, 1000, 1200, 1500mm, etc. Different lengths and power densities can be selected according to actual engineering applications.



The led wall wash light features :

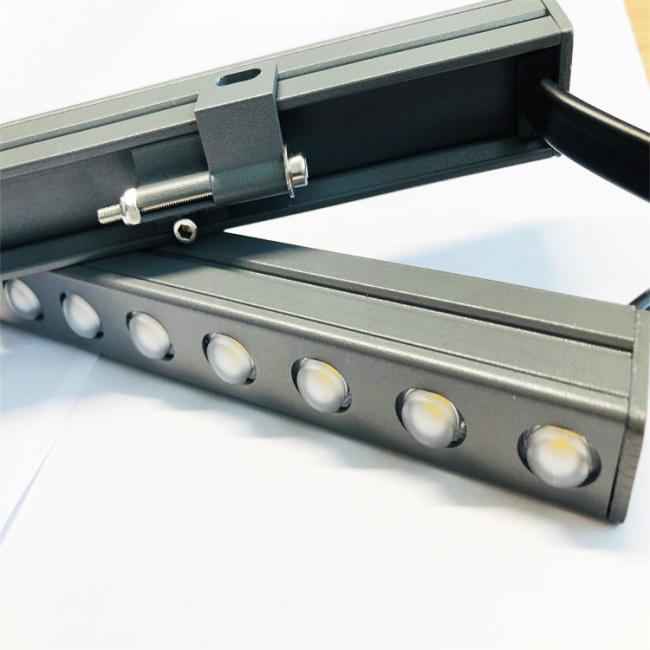

  • Snap-on Clips, or custom adjustable angle Clips, perfect for including back connectors
  • Each of our lamp beads adopts high display finger CRI> 90, high flow lamp beads, ensure that your lamp beads highlight demand, asalways to provide you with high quality lamp strip
  • The back outlet can realize no dark area splicing, which is better for on-site installation



Product Name LED wall wash Light
Volgate 24V
Power 12W/Meter Customized
LED QTY 12led/Meter Customized
CCT 2700~6500K Customized
CRI 90
Lumen/W 125lm/W
Lumen/Meter 1500lm/meter
Length 0.5M 1M (Can be customized)
Led Brand Cree/lumileds/Osram Customized
PCB  Aluminum + PCB + Glass
Beam Angle(°)FWHM 15° 25° 40° Customized
Cutting Size 100mm
Definition of line sequence Red=+24V Black=-24V
Outgoing lines way Straight line & Side line & Bare & Connector
Control Mode Single color temperature
Maximum serial number Single power supply 5 meters in serial
Material Aluminum + Glass
Oper.Temp. “-25℃~+50℃
IP Rating IP20 IP65 IP67 Customized
IK Rating IK08
Certification CE & RoHS



Certification :

The led neon lights we have been doing the CE & RoHS Certification already as the below show.

Shanghai Wellshow Opto Electronics Co.,Ltd., founded in 2013 in China, relying on Dongguan Lan Kaixin as the production base;With the industry's advanced manufacturing equipment and the first through the ISO9001 quality management system certification;More than 40products have won national invention patents, utility model and appearance patents, products through CCC, CQC, CE, RoHS and other national lamps and lanterns inspection certification;Focusing on LED technology application innovation, industrial design innovation, business model innovation, is LED outdoor lighting, LED indoor lighting to soft light strip, neon light strip,linelight, LED module, intelligent lighting, commercial lighting and other products integrated application solutions provider.

FAQ

Q1. Are you a factory or trading company? A: We are a factory, we provide ODM& OEM services.

Q2. Do you have any MOQ limit for led
light order? A: Low MOQ, 1pc for sample checking is available

Q3. What about the lead time? A:Delivery time for sample:3-5days
after get your samples request and samples charge. Delivery time for mass production: 10-18days after order confirmed after
receiving buyer's deposit

Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx
or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q6: How to deal with the faulty? A: Firstly, Our products are produced in
strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send
new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can
discuss the solution including re-call according to real situation.
