Mini OV9734 6mm Industrial Endoscope Inspection Camera Wide Angle 95 Lens
Mini OV9734 6mm Wide Angle 95 Lens Industrial Endoscope Camera Module
Specificaitons
| FOV(D*H*V) | 95**85°*43.5° |
| TV Distortion | <-10% |
| Basic tolerance | ±0.1mm |
| Output | USB2.0 UVC |
| Format | YUV&MJPEG |
| Resolution | 720P Max 30fps |
| Image Sensor | CMOS |
| Product Type | Endoscope Camera Module |
| Certification | CE RoHS Reach |
| Focal Length | 1.08mm |
Description

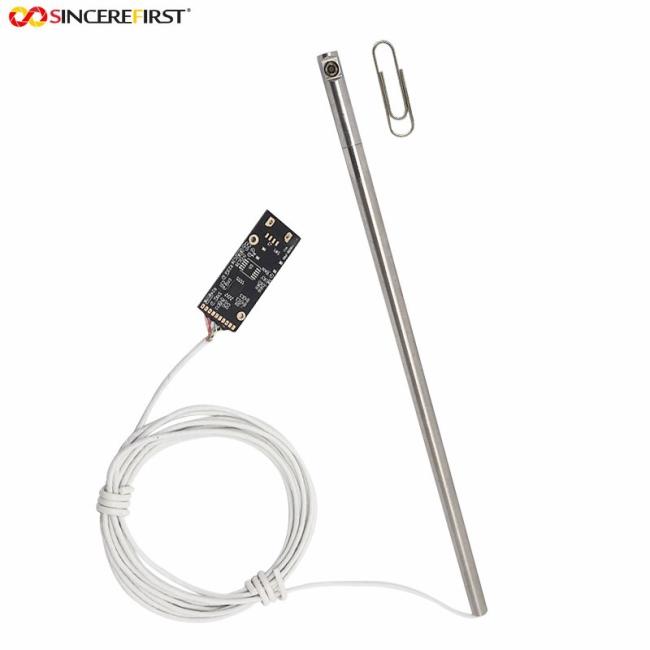

The OV9734 is a 1MP 1/9-inch USB HD endoscope camera module for medical applications. It has a high-performance image processing decoder board with USB2.0 interface, built-in image processor, and digital signal processor, outputs high-quality image quality, through advanced image algorithm technology.
Features
The OV9734 endoscope camera module has a 1/9-inch HD sensor and is capable of capturing crisp 720p HD video at 30 frames per second (fps) or VGA video at 45 fps1. It is UVC compliant, Plug & Play, DC3.3V and supports USB2.0.
Applicaitons
An endoscope is a testing instrument that integrates traditional optics, ergonomics, precision machinery, modern electronics, mathematics, and software. One has an image sensor, optical lens, light source illumination, mechanical device, etc. It can enter the stomach through the mouth or enter the body through other natural orifices. Using an endoscope can see lesions that X-rays cannot, so it is very useful for doctors. For example, an endoscopist can look at ulcers or tumors in the stomach and use this to determine the best treatment plan.
