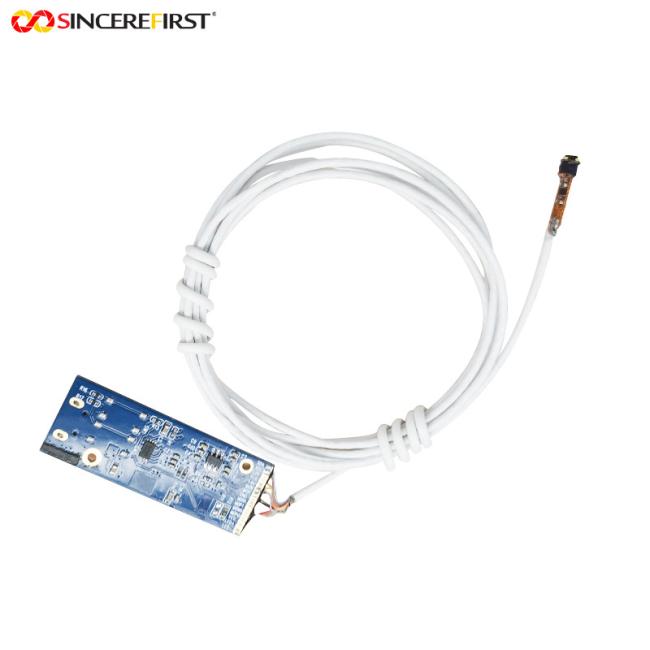

Mini 3.3mm 1000P Oral Endoscope Camera Module Wide Angle 140 Degree
Product Description:
The ES101 endoscope camera module has a maximum resolution of 1000Hx1000V and adopts a high-performance 1.4um BSI pixel design. ES101 adopts an innovative architecture to support high frame rate readout. The sensor supports fullframe mode, skip mode, binning mode, windowmode and other output formats, and is compatible with LVDS/MIPI+10bit/8bit image output modes to meet more solution requirements.

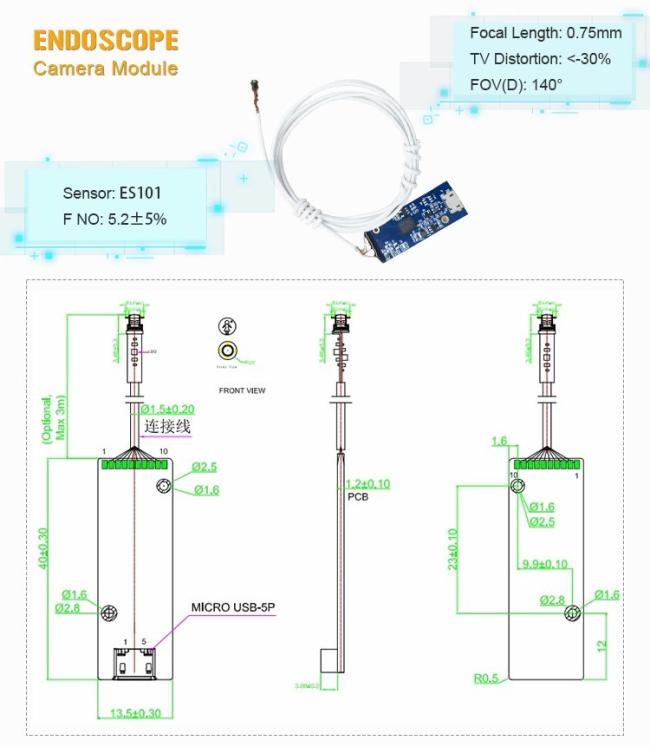

Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Medical Endoscope Camera Module |
| Diameter | 3.3mm |
| Features | Mini Endoscope Camera Module |
| Sensor | ES101 |
| Led | 0201 White Led |
| DSP | USB2.0 UVC |
| Focusing Range | 10-100mm |
| Focal Length | 0.75mm |
| FOV(D) | 140° |
| F Number | 5.2±5% |
Applications:
The endoscope camera module is a versatile device that can be used in a variety of medical applications, including oral examinations, gastroscopy, bronchoscopy, laparoscopy, and arthroscopy. It can also be used in veterinary medicine to examine animals. The camera module's small size and flexible cable make it ideal for use in endoscopes, allowing doctors and veterinarians to easily perform minimally invasive surgeries.
