Sony IMX378 CMOS Sensor MIPI PCB Camera Module For Macro Shooting

Product Description:

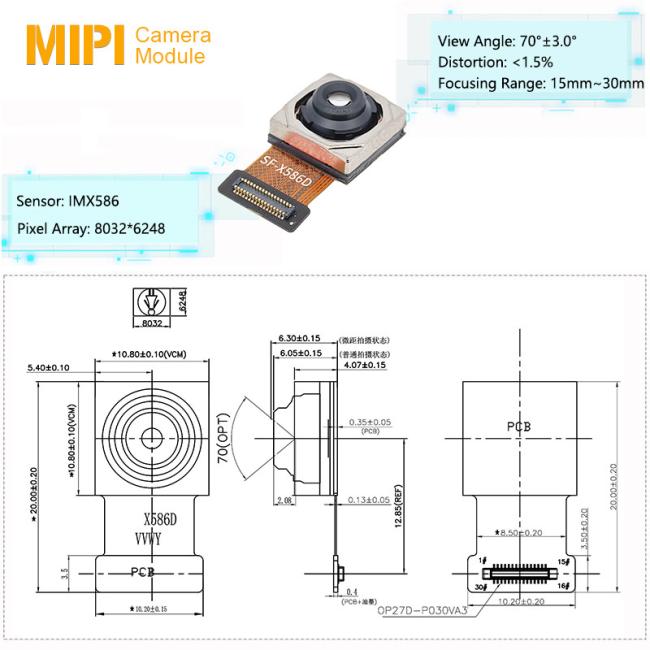

This 50MP Sony IMX586 MIPI FPC camera module. It adopts the MIPI camera module interface, with a unit pixel size of 0.8 μm and a 1/2-inch sensor size, high resolution, good image quality and autofocus function, with a depth of field of 15mm~30mm and an aberration rate of less than 1.5%. It is small in size and light in weight, and can be flexibly mounted on a variety of equipment. Currently, it is mainly used in surveillance equipment, high-fidelity cameras, smart homes and medical imaging.

Features:

1.High resolution: 50-megapixel resolution delivers crisp, clear images.

2.Compact design: Smaller module size enables thinner and lighter cell phone designs and compatibility with multi-camera systems.

3.Low Noise: Noise reduction technology suppresses noise in the image to improve image purity.

4.Auto Focus: High-speed response maintains accuracy regardless of moving objects or dark scenes.

Technical Parameters:

Applications:

Smart Shopping Cart: supermarket intelligent sales.

Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Drones: Used for target tracking, obstacle avoidance, aerial photography, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Cooperative Brands & Customers:

Why Chooes US:

Details Pictures:
