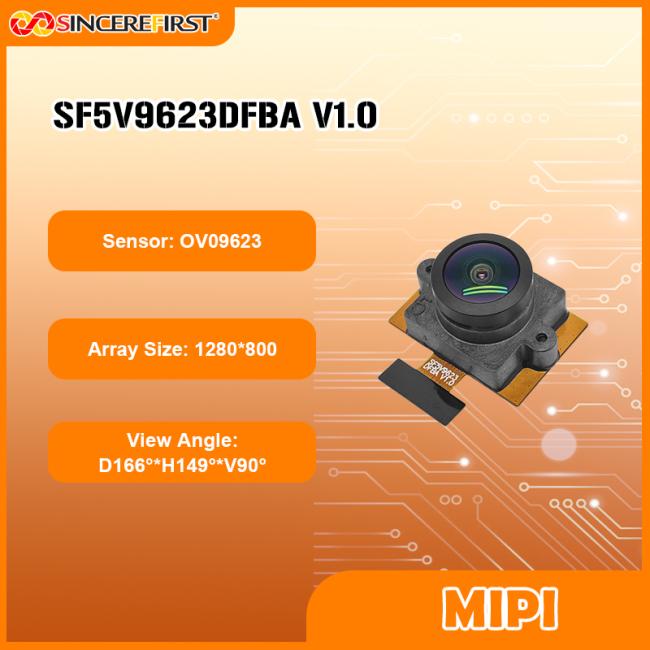

Fixed Focus OmniVision OV9623 CMOS Sensor FPC Camera Module

Product Description:

This is fixed focus OmniVision OV9623 CMOS sensor FPC camera module. It adopts the MIPI high-speed data transmission interface and provides a 1-megapixel high-definition output, which can achieve stable and smooth image acquisition in the embedded system. Its ultra-compact dimensions are only 24.2mm×17.1mm, making it easy to integrate into devices with limited space. With an F1.8 large aperture and a focusing range of 20cm to infinity, it significantly enhances the ability to capture details in low-light conditions. The module supports HDR imaging technology and is designed with a 166° diagonal field of view and a 149° horizontal field of view, which can effectively balance the transition between light and dark in strong light or backlight scenes. The manual focus function offers flexible fine-tuning control, suitable for diverse needs such as industrial precision inspection and safety monitoring.

Features:

1. High-Speed and Stable Transmission: The MIPI interface supports high-bandwidth data transmission, ensuring delay-free imaging at a resolution of 1280×800, making it suitable for scenarios with high real-time requirements such as industrial inspection.
   2. Low-Light Enhancement: The F1.8 large aperture combined with the 1.96mm short focal length design, along with a focusing range from 20cm to infinity, significantly improves the image brightness and signal-to-noise ratio in low-light conditions.
   3. Ultra-Wide Dynamic Range: With HDR technology support for 166°DFOV and 149°HFOV, it can precisely handle complex lighting scenarios such as backlighting and strong contrast, preserving the details of both bright and dark areas.

Technical Parameters:

Applications:

Precision Dimension Measurement: The manual focusing function supports clear imaging from 0.2mm to ∞, and with a resolution of 1280×800, it is suitable for scenarios such as PCB board solder joint inspection and precision part dimension measurement. The actual measurement shows that defects at the 0.1mm level can still be identified under an illuminance of 50Lux.
Smart Door Lock: The 1/2.7-inch sensor can still output usable facial recognition images in the low-light environment of the corridor, with a false recognition rate of less than 0.001%.
Production Line Monitoring: The 15fps@ full-resolution transmission capability of the MIPI interface meets the real-time quality screening requirements of the conveyor belt. The 166° ultra-wide-angle camera can cover a 2-meter-wide assembly line.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
