Industrial and Medical Led Integrated CMOS Endoscope Camera Bare Module

Product Description:

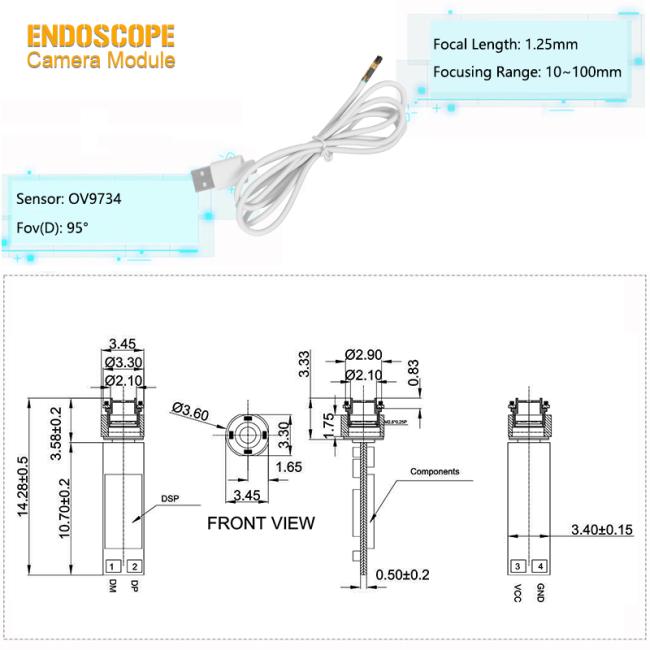

• This is an industrial and medical LED integrated CMOS endoscope camera bare module, which adopts the OmniVision OV9734 image sensor. It features a 1MP pixel specification, capable of outputting 1280x720 resolution images and supporting a maximum frame rate of 30FPS, meeting the fluency requirements for dynamic observation. With a sensor size of 1/9 inch and a pixel size of 1.4μm x 1.4μm, it balances image detail performance in a miniaturized design. In terms of optical configuration, the module is equipped with an F4.0 aperture and a 1.25mm focal length, with a focusing range covering 10-100mm, a DFOV (diagonal field of view) of 90°, and distortion controlled at < -20%. It adopts a manual focusing method, combined with a 3.6mm diameter lens and an integrated design, providing higher integration flexibility in the form of a bare module. In addition, the lens integrates 4 LED beads to ensure illumination in dim environments, and the production process adopts SMT technology and AA process to ensure product stability.

Features:

1. Balancing mini and imaging capability: The combination of a 1/9-inch sensor and 1.4μm x 1.4μm pixels achieves a balance between compact design and clear image quality with a 3.6mm slim lens diameter, making it suitable for operation in narrow spaces.
2. Optical performance adapting to all scenarios: The 90° field of view facilitates quick mastery of large-scale scene layouts, the 10-100mm focusing range enables precise switching between close-range detail observation and medium-range panoramic presentation, and the low distortion of < -20% reduces image distortion.
3. Outstanding operation and reliability: The manual focusing design provides precise control, SMT technology and AA process ensure the alignment accuracy of the lens and sensor, and the integrated 4 LED beads provide stable supplementary light for dim environments.

4. High integration flexibility: The bare module form is convenient for downstream manufacturers to carry out secondary development according to needs, and the integrated design improves installation adaptability.

Technical Parameters:

Applications:

Industrial inspection field: It can be used for pipeline inner wall corrosion detection, motor internal structure inspection, etc. The 3.6mm diameter easily penetrates into narrow channels, the 90° field of view quickly covers the detection area, and the 10mm close focus can identify 0.1mm-level fine scratches or wear.
Medical auxiliary diagnosis field: Suitable for endoscope examinations such as digestive tract and respiratory tract. The high frame rate ensures real-time dynamic imaging, LED supplementary light guarantees image brightness in dim internal body environments, and the low distortion characteristic improves the accuracy of lesion observation.

Precision electronics detection field: It can observe fine structures such as circuit board solder joints and chip pins. The high integration of the bare module is convenient for combining with detection equipment, and manual focusing can accurately capture the detailed state of electronic components.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
