Aggravated 4 Sided Planer Full Automatic Four Side Moulder
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
4 Sided Planer For Sale - VH-633V (Aggravated Oversize)
All parameters can be set in the mechanical interface. Product information, tool date, width and thickness can be set in the man-
machine interface, and displayed in the interface. Feed speed, each spindle interval can be written in the interface
| Model | VH-M623V | |
| Specification | Working width(mm) | 50-230 |
| Working thickness (mm) | 8-160 | |
| Working table length (mm) | 1970 | |
| Feeding speed (mm) | 6-36 | |
| Mian spindle diameter (mm) | Φ 40 | |
| Main spindle revolution (r/min) | 6500 | |
| Air pressure (Mpa) | 0.6 | |
| Motor power (KW) | 1st Lower Shsft | 11kw/15HP |
| Right vertical spindle | 11kw/15HP | |
| Left vertical spindle | 11kw/15HP | |
| 1st Upper Shaft | 15kw/20HP | |
| 2nd Upper Shaft | 15kw/20HP | |
| 2nd Lower Shaft | 11kw/15HP | |
| Top spindle lifting | 0.55kw/0.75HP | |
| Feeding beam lifting | 0.75kw/1HP | |
| Feeding motor | 7.5kw/10HP | |
| Left vertical adjustment | 0.18kw/0.25HP | |
| Total power | 82.98kw/112.74HP | |
| Cutter diameter | 1st Lower Shsft | Φ 125-Φ 140 |
| Right Vertical spindle | Φ 125-Φ 200 | |
| Left vertical spindle | Φ 125-Φ 200 | |
| 1st Upper Shaft | Φ 125-Φ 200 | |
| 2nd Upper Shaft | Φ 125-Φ 200 | |
| 2nd Lower Shaft | Φ 125-Φ 200 | |
| Remark | Feeding wheel diameter | Φ140 |
| Dust outlet diameter | Φ140 |

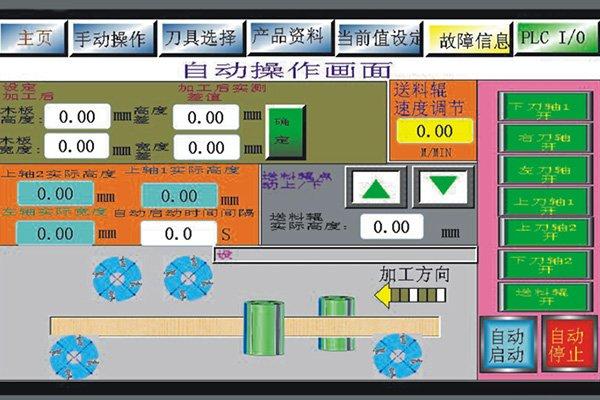

High quality touch control system
High-quality machining results
Boost efficiency and shorten time to adjust
Powerful features
Each movement of universal spindle is controlled by electric reduce the laboring.
Auto picture, easy to operate, a key to solving

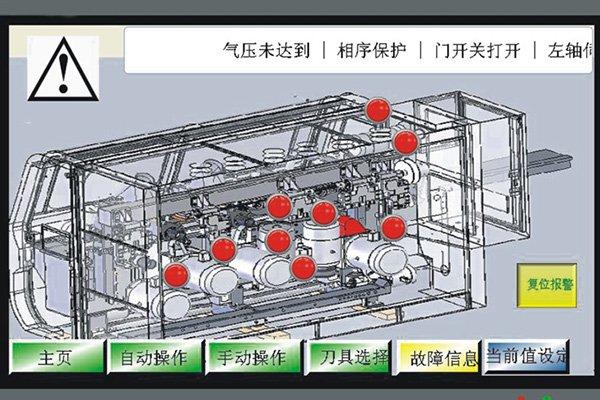

Intelligent automatic self-detection systems, monitoring equipment to run at any time
Tool Database
Any position can be set as the origin
