16S 200Ah ESS Solution Battery 51.2V Powerwall Residential Battery Energy Storage System
Energy Storage Litium Battery Lifepo4 16S 200Ah 51.2V Powerwall For Household Solar System
Battery systems mainly provide power storage for solar energy systems in homes, stores, and offices. At the same time, battery systems can optimize the use of electricity and ensure the effective operation of the entire energy storage system.
Main Features
Long Life
About 4000-6000 cycles, up to 10 times longer life span compared to lead-acid batteries.
More Usable Capacity
80% depth of discharge(DOD), 25-50% more usable capacity than lead-acid batteries.
Lightweight
Average 70% lighter than the same size traditional lead-acid batteries.
Fast Safe Charge
High charge/discharge rate, charge much faster than traditional lead-acid batteries.
Built-in Protectin
Every battery comes with a built-in battery protection system.
Drop-in Replacement
A variety of BCI standard sizes or custom solution for easy drop-in replacement.
Eco-friendly
Ultimate clean energy, no gassing, no fumes, no pollution, non-hazardous batteries.
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Norminal Energy | 10.24kWh |
| Working Voltage | 40~58.4V |
| Net Weight | 88kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 10 Years |
| Cycle Life(25°C@80%DOD) | >6000 Cycles |
| IP Grade | IP21 |
| Color | White |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Making Better Use of Solar Power
Powerwall Power Storage Battery51.2V Series
Redway Power™ introduces Power Storage wall series that has applications in both Domestic and Commercial sectors offering backup power to Offices, Homes, Factories, and Businesses. Integrated with latest BMS Technology, our Power Storage wall brings you Safety, Reliability and high performance capability.

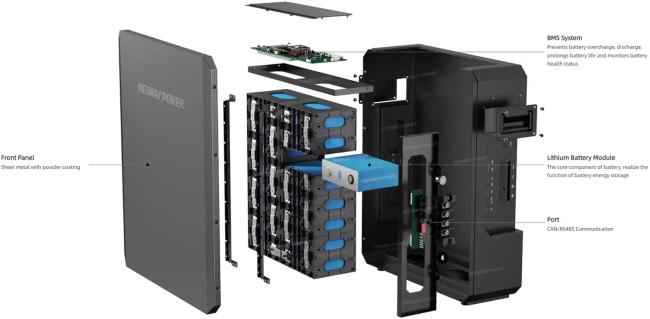

- The Internal Structure -
51.2V100Ah Power Storage Wall
Safety and Long-life
All Redway Products Come with:
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
