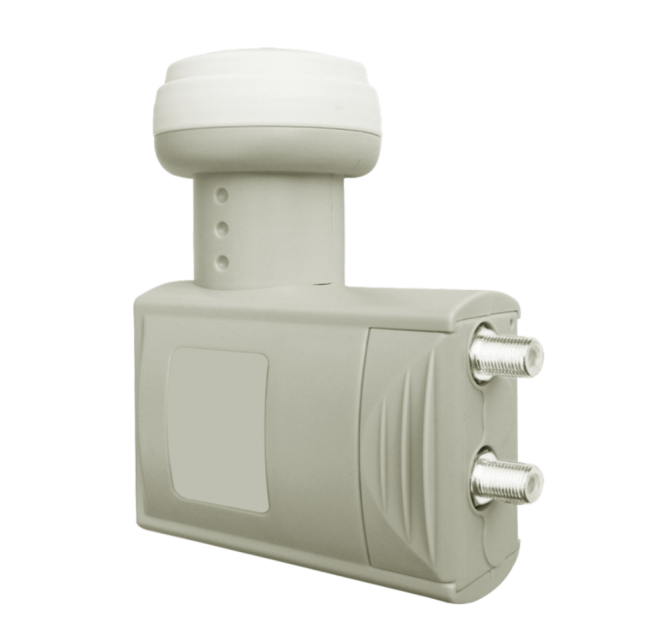

Satellite TV High Gain 4K Ku-Band Twin LNB universal lnb ku band
Price:
$3.00 - $4.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
High Fly
Product Description
Satellite TV High Gain 4K Ku-Band LNBF universal lnb ku band
!!! Click here to get more information !!!
Product Description
Features
Uni-body Water Proof of alluminum body
Low Noise 0.1dB and Great Reception Quality
Qualified for signal down converting from 1 satellite to 1 receiver
DVB-S / DVB-S2 Compliant LNBF, HD-TV, SD-TV, 3D-TV,4K-TV
Exclusive mechanism simulation design with premium quality components
Guaranteed lowest N/F and best P/N with ideal level of Gain upon mass data of field tests
Very High Frequency Stability; High Cross Polarization Isolation; Low Power Consumption; Easy to Install
Perfect PCB design and circuit matching, guaranteed excellent Cross Pol. Isolation and minimized Spurious Response
Manufactured under strict IQC, IPQC, FQC procedures and ISO9001:2015 Quality Management System
100% water-proof test, over 2100 hours' intensive UV protection testing of radome and plastic housings
Brings you ever closer to the great pleasure of satellite TV entertainment
Low Noise 0.1dB and Great Reception Quality
Qualified for signal down converting from 1 satellite to 1 receiver
DVB-S / DVB-S2 Compliant LNBF, HD-TV, SD-TV, 3D-TV,4K-TV
Exclusive mechanism simulation design with premium quality components
Guaranteed lowest N/F and best P/N with ideal level of Gain upon mass data of field tests
Very High Frequency Stability; High Cross Polarization Isolation; Low Power Consumption; Easy to Install
Perfect PCB design and circuit matching, guaranteed excellent Cross Pol. Isolation and minimized Spurious Response
Manufactured under strict IQC, IPQC, FQC procedures and ISO9001:2015 Quality Management System
100% water-proof test, over 2100 hours' intensive UV protection testing of radome and plastic housings
Brings you ever closer to the great pleasure of satellite TV entertainment
Specification
Item | Specification | Item | Specification |
Input Frequency: | 10.70~11.7GHz(LOW); 10.70~12.75GHz(HIGH) | Gain Flatness | ±0.5dB/27MHz |
Output Frequency: | 950~1950MHz(LOW); 1100~2150MHz(HIGH) | D.C.Current Consumption | 100mA(Max.) |
LO Frequency | 9.75/10.6GHz | LO phase noise | -70dB/Hz at 10kHz -90dB/Hz at 100kHz -100dB/Hz at 1MHz |
Noise Figure: | 0.1dB(Typ.) | Output power(at 1dB gain compression) | 10dB(Min.) |
Conversion Gain | 60dB(Typ.) | Out put VSWR | 2.0: 1(Max.) |
F/D Radio | 0.6 | Output connector | 75 ΩF type female |
Cross Pol. Isolation | 20dB(Typ.) | Operating Temperature | -40℃+60℃ |
Image Rejection | 45dB(Min.) | Storage Temperature | -55℃+80 ℃ |
Polarity Switching Voltage | Vertical: 12-14.5V; Horizontal: 16-18V | Dims | Φ60 x 94mm |
Operating Voltage | Vertical: 11.5~14 Vdc; Horizontal: 16~19 Vdc | Weight | 72g |
Band Switching Pulse | 0/22kHz tone |
Recommend Products
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What's your company's advantages？
We knowledge in high frequency and experience for more than 20 years. We professional in solve problems in telecommunication, development, design and manufacturing of products on customer specifications. We also flexibility in development and production.
2.Can I visit your company or factory in China？
Sure. We are more than happy to receive you in Zhongshan and show you around our workplace
3.Can I customize items I like, such as to print our own logo, or to alter the design?
Sure. We are more than happy to receive you in Zhongshan and show you around our workplace
3.Can I customize items I like, such as to print our own logo, or to alter the design?
Yes， we offer OEM/ODM service. Please contact us or our sales representative to check with the details.
4.For customer service
Your inquiries will be replied by our experienced staff within 24 hours via email, skype, whatsapp, te ...., we will answer you
