HD Digital Satellite Finder Dvb-S2 950MHz-2150MHz Meter Satlink
Price:
$129.00/pieces 1-499 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Hignfly
Product Description

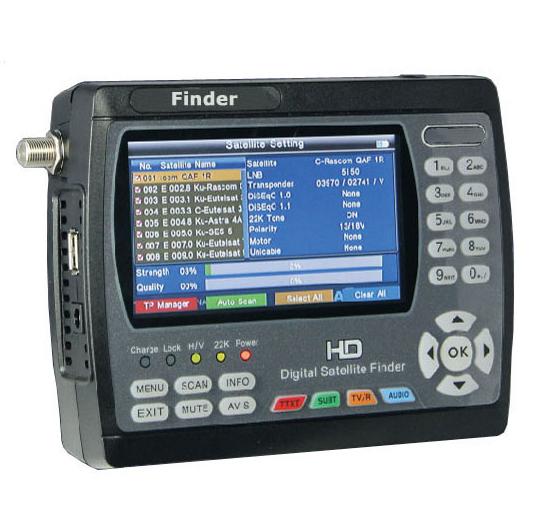

Highfly Dvb-s2 950MHz-2150MHz Digital Hd Satellite Signal Finder Meter Satlink
Factory price DVB-S2 HD satellite signal finder meter Satlink
Products Description
Features
* 4.3 Inch High Definition TFT LCD Screen * Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant * MPEG-2 / H.264 Hardware decoding * Digital meter for signal strength and quality * Supports scan of Auto, Blind, Manual or NIT * Sound and Light Alarm for Locking Signal * Auto Calculate Angle of AZ ,EL * Supports DiSEqC 1.0/1.1/1.2, 0/22KHz Tone * Speaker Integrated * Support both AV out and AV in * LNB short protect * 7.4V/3000mAh Li-Ion Battery Included * Software upgrade via USB port * Easy to carry
Specification
|
System Capabilities
|
Fully DVB compliant
|
DVB-S2, DVB-S
|
|
Satellite Input/ Demodulation
|
Connector Type
|
F Type
|
|
|
Input Frequency
|
950 to 2150 MHz
|
|
|
Signal Input Level
|
-65 to -25 dBm
|
|
|
Band Switch Control
|
22KHz
|
|
|
LNB Supply
|
13V/18V, IMax 400mA
|
|
|
Demodulation Type
|
QPSK.8PSK
|
|
|
Symbol Rate
|
2
|
|
LCD Features
|
LCD Type
|
TFT TRANSMISSIVE
|
|
|
Number of Dots
|
480(RGB) x272
|
|
|
Active area (W x H)
|
95.04x53.86 mm2
|
|
AV Output interface
|
Connector Type
|
3.5 mm jack
|
|
|
Video Output
|
CVBS
|
|
|
Audio Output
|
Stereo Audio L/R output
|
|
HDMI
|
Format
|
HDMI 1.3
|
|
AV Input interface
|
Connector Type
|
3.5 mm jack
|
|
|
Video input
|
CVBS
|
|
|
Audio input
|
Stereo Audio L/R input
|
|
Audio/Video Processing
|
Video decompression
|
MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@L5 HD resolution, H.264 MP&HP@L4, HW JPEG decoding
|
|
|
Resolving rate
|
PAL-25 frame@720*576,
NTSC-30 frame@720*480 |
|
|
Signal compatibility
|
Support conversion for different video formats
|
|
|
Video Format
|
4:3,16:9, By Pan & Scan and Letter Box conversion
|
|
|
Audio decompression
|
MPEG-1 Layer I/ll, MPEG-2 Layer I/ll
|
|
|
Audio output mode
|
Stereo. Mono. R/L
|
|
Data Service Port
|
Connector
|
USB
|
|
|
Data protocol
|
USB2.0 interface
|
|
|
File format
|
wma.mp3,mp4,avi,jpg,jpeg,bmp,img
|
|
Microprocessor
|
Microprocessor
|
78326SZ
|
|
|
Clock Frequency
|
550MHz
|
|
|
SDRAM Memory
|
DDR2 512Mbit
|
|
Power Supply
|
Li-on Battery
|
7.4V/3000mAh
|
|
|
Adapter
|
OUTPUT :DC12V/1.5A
INTUPT :AC100-240V 50/60Hz |
|
|
Power consumption
|
Max. 10W
|
|
Physical Characerstics
|
Size
|
125x205X45(mm)
|
|
|
Net Weight
|
0.66KG
|
