High Strength Small Vibrating Motor High Stability Vibrating Mini Motor High Frequency

Price Negotiable
Price: $112.00/pieces >=1 pieces
MOQ: ≥1
Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Brand: SUPT
Product Description

High Strength High Stability High Frequency Vibration Motor Small Size







Product Description



A vibration motor is an electromechanical device that generates controlled oscillations or vibrations. It typically comprises a motor and an eccentric weight, causing the entire assembly to vibrate. The vibrations produced by such motors have distinct characteristics:

1. Compact Design: Vibration motors are compact and can be easily integrated into various devices and systems due to their small size and simple construction.

2. Variable Intensity: The amplitude and frequency of vibrations can be adjusted, allowing for a wide range of vibration intensities to suit different applications.

3. Haptic Feedback:They provide tactile feedback in devices like smartphones and wearables, enhancing user interaction through vibrations that simulate touch sensations.

4. Alerts and Notifications: Vibration motors are commonly used to deliver alerts or notifications in devices, making them vibrate to grab the user's attention.

5.Vibration Patterns: Some vibration motors can produce specific patterns of vibrations, contributing to more diverse and informative feedback.

6. Mechanical Actions:In industrial settings, vibration motors are used for conveying, compacting, sorting, and other mechanical actions, leveraging vibrations for efficient processes.

7. Reliability: Vibration motors are robust and reliable, making them suitable for long-term usage in various applications.

 They find applications in consumer electronics, automotive systems, medical devices, industrial automation, and more.




Applications:

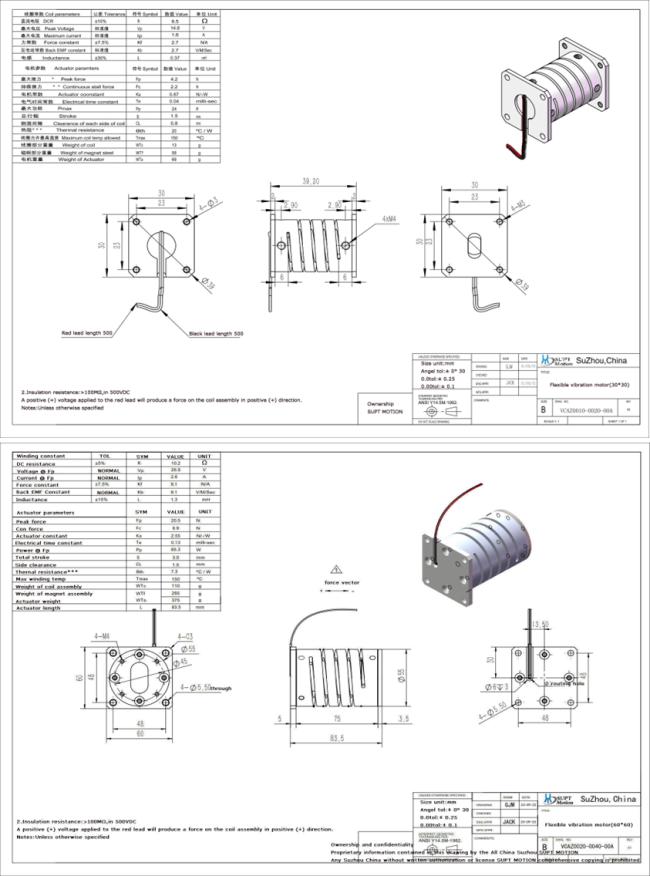

The product described in this paper is a flexible vibration coil motor, the model is VCAZ0020-0040, also passed CE, ISO9001, CCC certification, its origin is Jiangsu, China, with short response time, high efficiency, low noise, small size, long life, high vibration frequency, good induction, good stability, high accuracy and other characteristics, this voice coil motor flexible feeding mechanism can solve the traditional vibration disc can not solve the problem of feeding. The flexible vibration plate of voice coil motor adopts special drive and control technology, which can realize the back-and-forth movement turning, dispersion and aggregation of parts. Also can adjust the back light source, can complete vibration feeding, vision system automatic control and machine pick-up system automatic control. Our vibrating motor design provides reliable and long-lasting performance. They are also very easy to install and maintain, making them ideal for any application. We offer a variety of sizes and configurations to make our vibrating motors the perfect solution for any application.

Technical Parameters:
Winding constant

VALUE

UNIT

DC resistance 10.2 Ω
Voltage @ Fp

25.9 V
Current @ Fp

2.6 A
Inductance

1.3 mH
Peak force

20.5 N
Con force

8.9 N
Actuator constant

2.55 Ka
Power @ Fp

65.3 W
Total stroke

3 mm
Max winding temp

150 ºC
Actuator weight

110 g







Our Services

 Technical indicators & specifications can be customized

 Satisfactory after-sales service



Company Information



FAQ

stator:



1.Travel: effective travel, used to calculate the the total travel of value force.



2.The direction of movement: horizontal or vertical installation 90 degree.



3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.



4.Load weight: the total quality part of movement, including the quality slider



5.Movement Type: 1.point to point movement2.the reciprocation of the rule (e.g. scanning).



6.Velocity curve: 1.a trapezoidal speed curve2.triangular speed curve; 3.sine speed curve.
