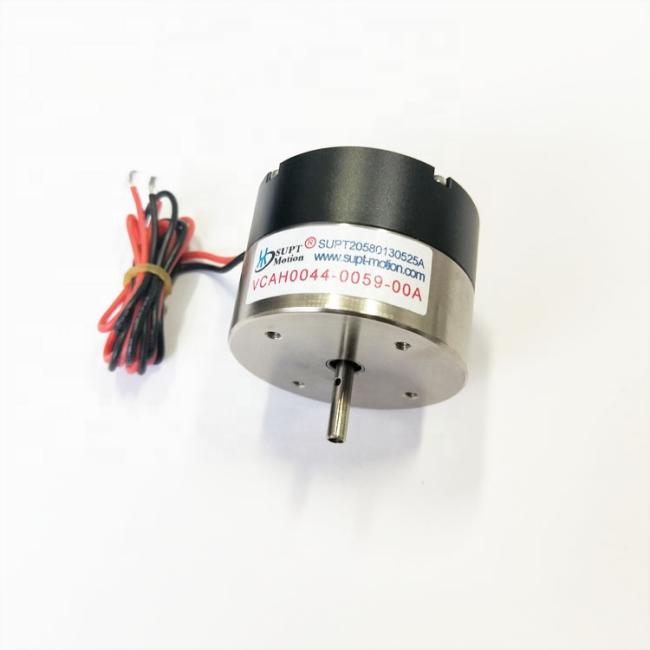

High Acceleration Voice Coil Motor Micro Electric Linear Actuator For Medical Pumps
Custom High Acceleration Micro Motor Linear For Medical Pumps
The application of micro linear motors in medical pumps enables precise fluid delivery and flow control, providing medical devices with accurate material delivery, fluid management, and therapeutic support. The following outlines how micro linear motors are used in medical pumps:
1. Fluid Control: Medical pumps require precise control of fluid flow rate and pressure. Micro linear motors can drive fluid valves or pistons to achieve precise regulation of flow rate and pressure, meeting various therapeutic needs.
2. Extracorporeal Circulation Devices: In extracorporeal circulation devices, micro linear motors can drive circulation pumps to maintain the patient’s blood flow and oxygenation, such as maintaining blood circulation during cardiac surgery.
3. Respiratory Therapy Equipment: In respiratory therapy equipment, micro linear motors can control the airflow in ventilators, enabling adjustment of respiratory rate and tidal volume to help patients maintain normal breathing.
4. Infusion Devices: Micro linear motors can be used to control infusion pumps, ensuring precise fluid flow and rate during infusion to prevent over- or under-delivery.
5. Venipuncture: In venipuncture, micro linear motors can be used to control blood collection devices, enabling a precise blood collection process.
Applications:
High-performance advanced voice coil actuator motor is designed to provide high output performance of any application, is a dc motor, to ensure reliable and consistent performance. It has light weight, short response time, high precision,Low hysteresis, low friction, good reliability. With a 1 year warranty, you can guarantee exceptional performance and durability. Widely used in yachts, automobiles, electric bicycles, microscopes, robotics, medical ventilators, optical engineering, laser equipment, this advanced actuator is perfect for applications that require high output performance. With its advanced actuator performance and reliable voltage, you can trust the results it delivers.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Technical indicators & specifications can be customized
Satisfactory after-sales service
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
