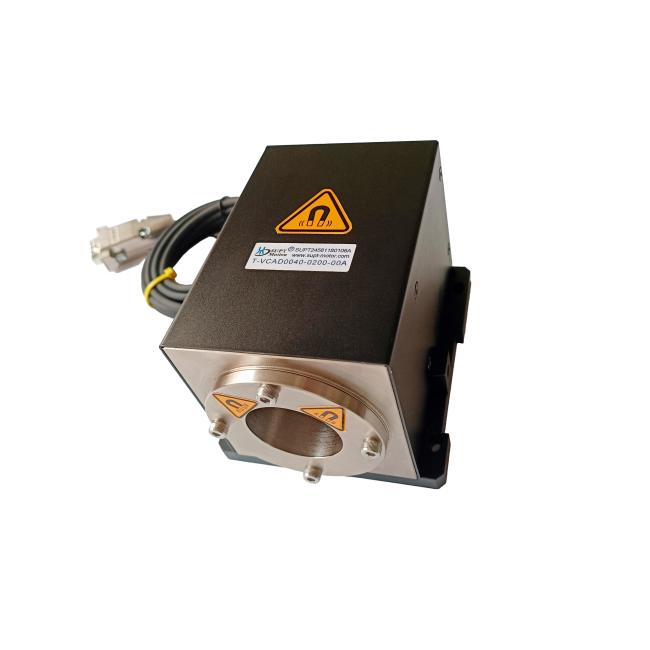

High Acceleration Hollow Core Motor Voice Coil Actuator For Optical Focusing
Product Description:
SUPT motor-hollow core voice motor,VCAD series coil motor,High response, high acceleration, low mass coil.No cogging effect,zero hysteresis. Simple structure, light weight, high frequencysmooth operation,It is widely used in optical scarning, positioning and auto focusing systems.
Through-hole voice coil motors are commonly used in optical focusing for camera autofocus and optical scanning systems.
In cameras, through-hole voice coil motors drive lens movement to achieve focusing. The lens and permanent magnet are fixed to the lens mount, which slides along a guide rod. The guide rod, coil, and Hall sensor are secured to the base. When the coil is energized, it drives the lens up and down for precise focusing.
Through-hole voice coil motors can be employed for focus adjustment in optical scanning systems. Hollow linear voice coil motors, featuring a small aperture that permits the passage of optical components, illumination, laser beams, or cables, enable rapid and precise focus positioning during optical scanning processes.
Features:
Product Name:Hollow Core Motor,Hollow Voice Coil Motor,Through-Hole Voice Coil Actuator
Speed:High Speed
model number:VCAD0120-0200-00A
Product features:Simple structure, lightweight, high-frequency response, high acceleration, high precision, and relatively high manufacturing difficulty.
Usage: BOAT, UAV, 3D Printing, Microscope, Robot,positioning, and autofocus systems
Efficiency: IE 1
Parameters:
| Protect Feature |
Hollow center |
| Communication Protocol | Modbus, Profibus, Profinet |
| Type |
Hollow-core motor system |
| Peak force(N) | 120 |
| Batch Number | YET-YQDJ020 |
| Voltage | 78V |
| Power Range | 63W |
| Rated Current | 4.8 A |
| Speed(RPM) | High Speed |
| Model Number | VCAD0120-0200-00A |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Applications:
SUPT's VCAD series through-hole voice coil motors feature a simple structure, lightweight design, high-frequency response, and high acceleration. They are suitable for applications in optical scanning, positioning, and autofocus systems.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
