6.8mm High Precision Ultra Thin Flat Voice Coil Motor For Medical Devices
Product Description:

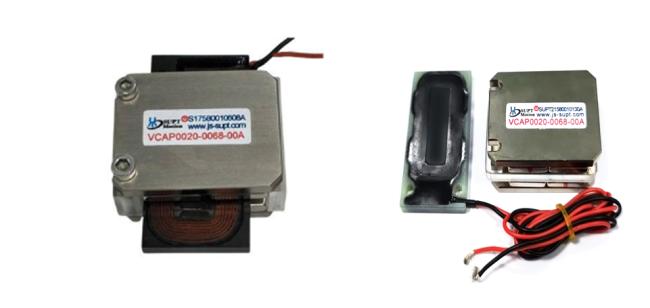

SUPT’s VCAP0020-0068-00A is an ultra-compact, ultra-thin flat voice coil motor designed specifically for medical devices, portable instruments, and microelectromechanical systems (MEMS). Housed in an ultra-compact enclosure measuring just 39 × 50 × 21.5 mm, this product delivers a peak thrust of 20 N, a continuous thrust of 5.5 N, and a stroke of 6.8 mm. With a thickness of just 21.5 mm, this flat voice coil motor is ideal for space-constrained applications such as minimally invasive surgical instruments, portable diagnostic devices, micro-pumps, and precision wearable mechanical devices. Manufactured using biocompatible materials and high-precision components, it delivers smooth, quiet, and stable motion with zero backlash and excellent repeatability. With a maximum operating voltage of 8.2 V, this flat voice coil motor features low power consumption, low heat generation, and a long service life. Thanks to its back-EMF constant of 4.4 V/m/s, the motor enables precise and responsive motion control. Widely trusted in medical robotics, portable optical devices, micro-valve control, precision medical device delivery systems, and small consumer electronics, this flat voice coil motor is the ultimate solution for micro-precision motion in ultra-thin designs.
Features:
- Linear Voice Actuation System,medical voice coil motor, ultra thin actuator, micro surgical equipment motor
- Voice Coil Actuation Mechanism
- 8.2V Voltage Input
- 6.8mm Stroke Length
- Long Lifetime
- High Force
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0020-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
VCAP0020-0068-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0020-0068-00A | Peak thrust | 20N |
| Continuous Thrust (25°C) | 5.5N | Total stroke | 6.8mm |
| Maximum Voltage | 8.2V | Back-EMF constant | 4.4V/m/s |
| Length | 39mm | Width | 50mm |
| Height | 21.5mm | Weight | 2.9kg |
Applications:
Typical Applications:
1. Consumer Electronics: Autofocus and optical image stabilization (OIS) for smartphone cameras, enabling high-frequency reciprocating motion within ultra-compact spaces; some periscope lenses also utilize flat VCMs.
2. Semiconductor Equipment: Precision XY-axis motion platforms, probe stations, and chip bonding machines, requiring short-stroke, high-speed operation with low vibration.
3. Precision Measurement / Optics: High-speed mirrors, vibration stages, and laser scanning, requiring high-frequency response and high-precision positioning.
4. Medical Devices: Minimally invasive surgical robots and micro-valve actuators, balancing compact size with rapid response.
