1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
3.Large span lengths
4.Good performance of tensile strength and temperature
5.The design life span is 30 years
6.Package : 2~4km/ wooden drum
Aerial 48 Core Fiber Optic Cable , ADSS Optical Cable Outdoor Aramid Strength
Price:
$0.20 - $0.70/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description

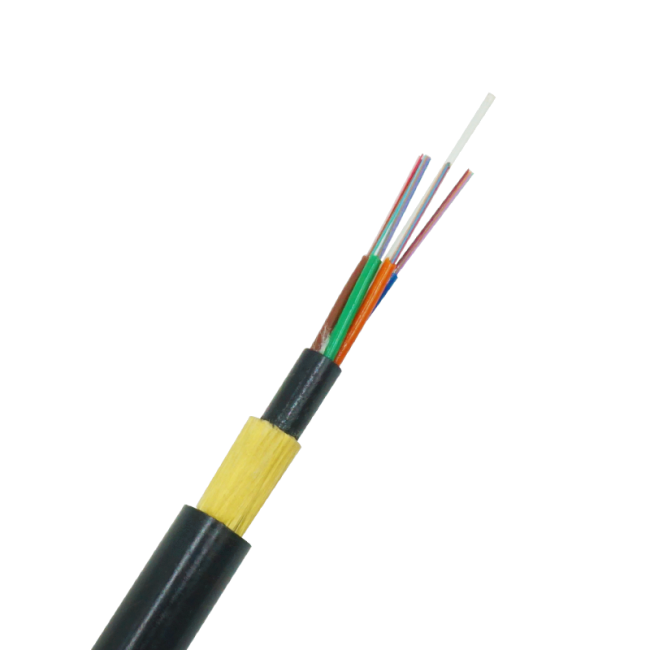

ADSS Cable manufacturer outdoor aramid strength aerial 48 core fiber optic cable

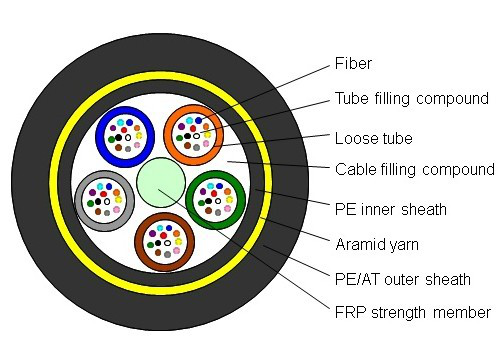

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Loose tube stranded ADSS

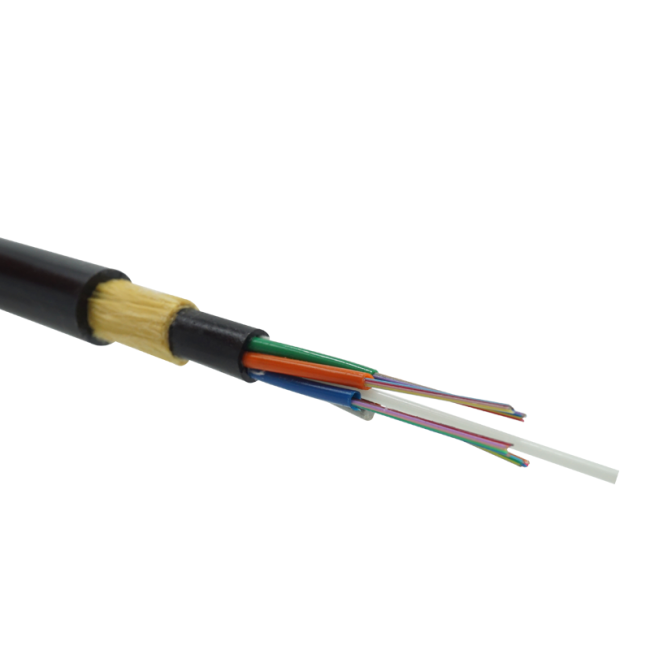

MORE PICTURES
Technical Data
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environm
