GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
Price:
$0.10 - $0.30/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description

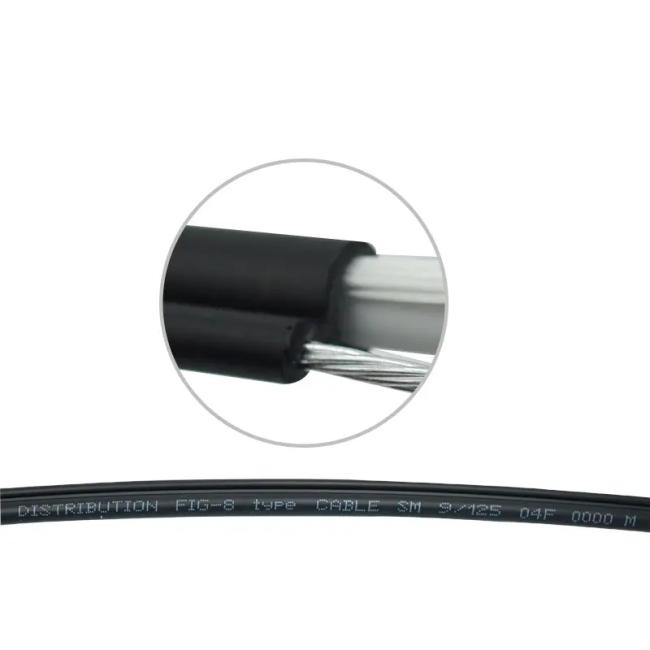

GJYXC8H Outdoor Figure 8 FRP Strength G.652D LSZH 12 Core Single Mode Fiber Optic Cable
Product Description
In the GYXTC8S cable, single-mode/multimode the fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire
locates in the center of core as a metallic strength member.The tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. After an Aluminum Polyethylene
Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.
Specification
|
No. of cable
|
|
|
12
|
||
|
Fiber Model
|
|
|
G.652D
|
||
|
Loose Tube
|
Material(color)
|
|
LSZH(white)
|
||
|
|
Diameter(±0.06)mm
|
|
2.6
|
||
|
|
Thickness(±0.03)mm
|
|
0.45
|
||
|
|
The Max.Core NO./Tube
|
|
12
|
||
|
Outer Sheath①
|
Material
|
|
LSZH
|
||
|
|
Thickness(±0.1)mm
|
|
0.6
|
||
|
|
Diameter(±0.2)mm
|
|
2.4
|
||
|
Web
|
Material
|
|
LSZH
|
||
|
|
Size(±0.1)mm
|
|
1.0*1.0
|
||
|
Messenger Wire
|
Material
|
|
FRP
|
||
|
|
Size(±0.1)mm
|
|
1.2(0.4mm*7)
|
||
|
Outer Sheath②
|
Material
|
|
LSZH
|
||
|
|
Thickness(±0.1)mm
|
|
1.0
|
||
|
|
Diameter(±0.2)mm
|
|
5.0
|
||
|
Cable Diameter(±0.2)mm(W×H)
|
|
|
5.0*8.0
|
||
|
Cable Weight(±5)kg/km
|
|
|
37
|
||
|
Attenuation
|
|
1310 nm
|
£0.40
|
||
|
|
|
1550 nm
|
£0.30
|
||
|
Min. bending radius
|
|
Without Tension
|
10×Cable-φ
|
||
|
|
|
Under Maximum Tension
|
15×Cable-φ
|
||
|
Temperature range
(℃) |
|
Installation
|
-10~+60
|
||
|
|
|
Transport&Storage
|
-20~+70
|
||
|
|
|
Operation
|
-20~+70
|
||
Other Products
Packing & Delivery
1-5 km/wooden drum

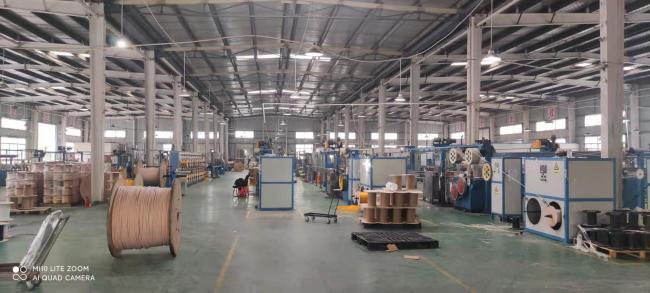

Our Company
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
