Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable
Price:
$0.10 - $0.40/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description

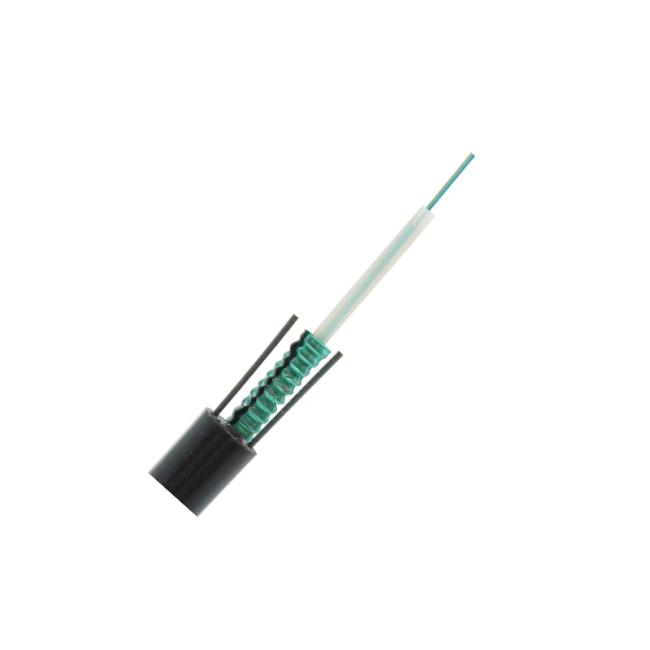

Manufacturer outdoor steel tape 4 core armored cable underground fiber optic cable
Description
1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
2.The tubes are filled with a water-resistant filling compound.
3.The tube is wrapped with a layer of PSP longitudinally.
4.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
5.Two parallel steel wires are placed at the two sides of the steel tape.
6.The cable is completed with a polyethylene (PE) sheath.
Feature
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
Technical data
|
No. of cable
|
|
2~8
|
10~12
|
14~24
|
|||
|
Fiber Model
|
|
G.652D
|
|
|
|||
|
|
Material
|
Steel Wire
|
|
|
|||
|
|
Diameter(±0.05)mm
|
0.8
|
0.8
|
0.8
|
|||
|
|
Material
|
PBT
|
|
|
|||
|
|
Diameter(±0.06)mm
|
2.1
|
2.4
|
2.8
|
|||
|
|
Thickness(±0.03)mm
|
0.32
|
0.35
|
0.4
|
|||
|
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
|||
|
Water Blocking layer(Material)
|
|
Water Blocking Tape
|
|
|
|||
|
|
Material
|
Steel Strip
|
|
|
|||
|
|
Thickness(±0.03)mm
|
0.25
|
|
|
|||
|
|
Material
|
MDPE
|
|
|
|||
|
|
Thickness(±0.2)mm
|
2
|
|
|
|||
|
Cable Diameter(±0.2)mm
|
|
7.9
|
8.1
|
8.5
|
|||
|
Cable Weight(±5)kg/km
|
|
60
|
63
|
68
|
|||
|
|
Without Tension
|
10.0×Cable -φ
|
|
|
|||
|
|
Under Maximum Tension
|
20.0×Cable -φ
|
|
|
|||
|
Temperature range(℃)
|
Installation
|
-20~+60
|
|
|
|||
|
|
Transport&Storage
|
-40~+70
|
|
|
|||
|
|
Operation
|
-40~+70
|
|
|
|||
Application
Our Company
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
