Outdoor Flat 2 Core Fiber Cable Single Mode With CE Certified
Price:
$0.20 - $0.50/meters
MOQ:
10 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description
Manufacturing outdoor flat cable 2 core single mode fiber optic cable GYFXJBY
Product Description
GYFXJBY-1B1

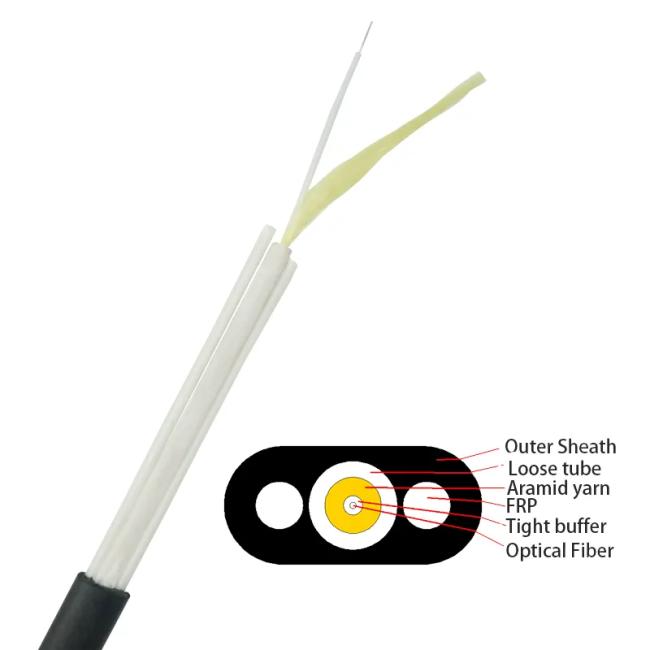

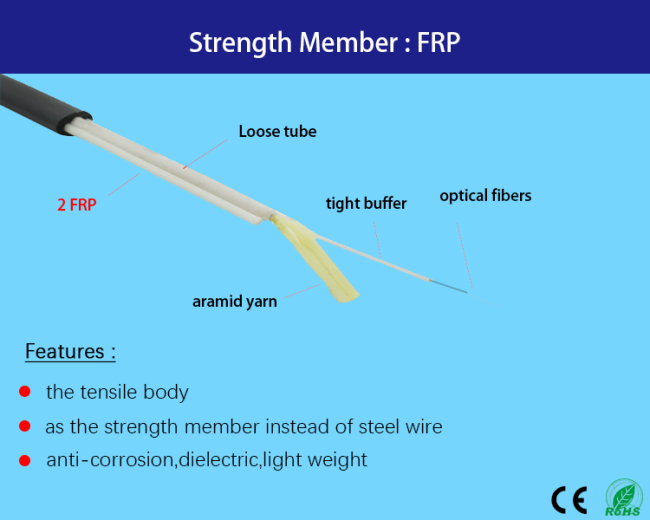

The structure of the cable is composed of a single or two 0.9mm tightly packed optical fiber and several strands of aramid fiber.LSZH sheath is extruded on the periphery of the cable to form the central soft fiber cable,and then two FRP are placed symmetrically on both sides of the cable,and finally polyvinyl sheath is extruded to form the cable.
Technical Data
|
No. of cable
|
|
|
1-2
|
||
|
Fiber Model
|
|
|
G657A1
|
||
|
Tight buffer
|
Material
|
|
PVC
|
||
|
|
Thickness
|
|
0.32±0.03mm
|
||
|
|
Diameter
|
|
0.9(±0.05)mm
|
||
|
|
Color
|
|
white
|
||
|
Loose tube
|
Material
|
|
LSZH
|
||
|
|
Thickness
|
|
0.35(±0.05)mm
|
||
|
|
Diameter
|
|
2.8(±0.1)mm
|
||
|
|
Color
|
|
white
|
||
|
Strength Member
|
Material
|
|
FRP
|
||
|
|
Diameter
|
|
1.5(±0.05)mm
|
||
|
|
No.
|
|
2
|
||
|
Outer Sheath
|
Material
|
|
MDPE
|
||
|
|
Color
|
|
Black
|
||
|
Cable Diameter
|
|
|
(5.0±0.2)×(8.0±0.2)mm
|
||
|
Cable Weight
|
|
|
47(±6)kg/km
|
||
|
Max. allowable tension
(Short-term) |
|
|
1250N
|
||
|
Max. allowable tension
(Long-term) |
|
|
300N
|
||
|
Crush resistance test
|
|
|
1000N/10cm
|
||
|
Min. bending radius
|
|
Static
|
20x cable Ø
|
||
|
|
|
dynamic
|
10x cable Ø
|
||
|
Temperature range
(℃) |
|
Installation
|
-30~+70
|
||
|
|
|
Transport&Storage
|
-40~+70
|
||
|
|
|
Operation
|
-20~+65
|
||
Feature
Our Company

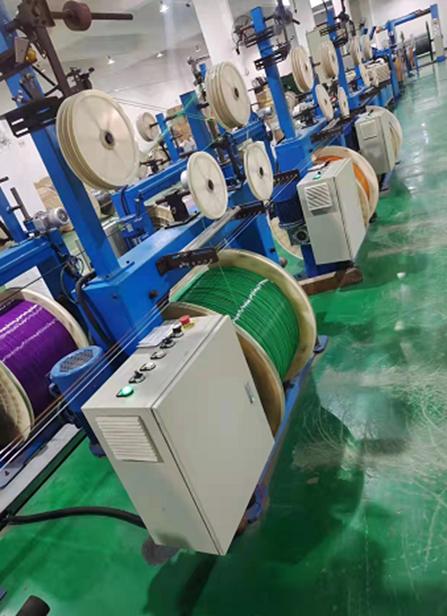

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
![]()
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
