6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss
Price:
$0.20 - $0.35/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description
Outdoor overhead aerial dielectric 6 core single mode adss fiber optic cable price
Description

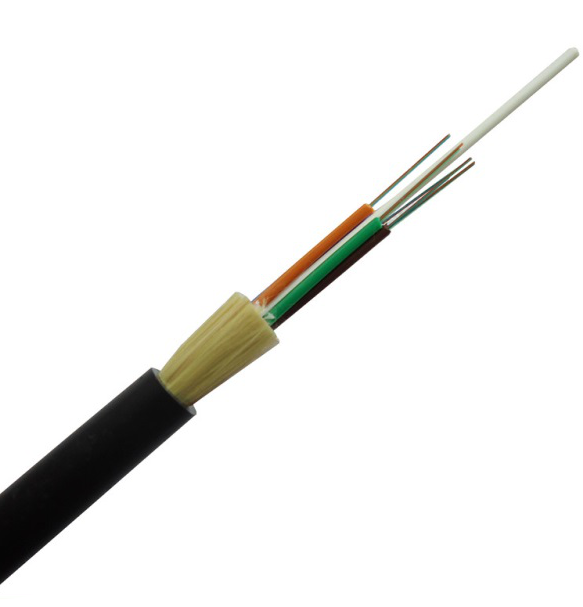

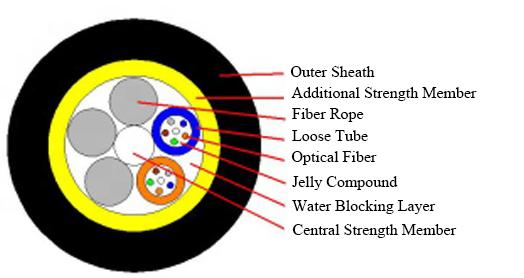

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Feature
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years
Technical Data
|
No. of cable
|
|
|
6
|
||
|
Design
(StrengthMember+Tube&Filler) |
|
|
1+5
|
||
|
Fiber type
|
|
|
G.652D
|
||
|
Central Strength Member
|
|
Material
|
FRP
|
||
|
|
|
Diameter
(±0.05mm) |
1.5
|
||
|
Loose Tube
|
|
Material
|
PBT
|
||
|
|
|
Diameter
(±0.05mm) |
2.1
|
||
|
|
|
Thickness
(±0.03mm) |
0.35
|
||
|
|
|
MAX.NO./per
|
6
|
||
|
Filler Rope
|
|
Material
|
PE
|
||
|
|
|
Diameter
(±0.05mm) |
1.8
|
||
|
|
|
NO.
|
4
|
||
|
Water Blocking Layer
|
|
Material
|
Flooding Compound
|
||
|
Additional Strength Member
|
|
Material
|
Aramid Yarn
|
||
|
Outer Sheath
|
|
Material
|
MDPE
|
||
|
|
|
Thickness
|
1.8(nominal)
|
||
|
|
|
Color
|
black.
|
||
|
Cable Diameter(±0.2mm)
|
|
|
9.6
|
||
|
Cable Weight(±10.0kg/km)
|
|
|
78
|
||
|
Cable breaking strength(RTS)
|
|
|
5.8Kn
|
||
|
Working Tension (MAT)
|
|
|
2.2Kn
|
||
|
Crush Resistance
|
Short Term
|
|
2200 |
||
|
|
Long Term
|
|
1100
|
||
|
Min. bending radius
|
Without Tension
|
|
10.0×Cable -φ
|
||
|
|
Under Maximum Tension
|
|
20.0×Cable -φ
|
||
|
Temperature range
(℃) |
Installation
|
|
-20~+60
|
||
|
|
Transport&Storage
|
|
-40~+70
|
||
|
|
Operation
|
|
-40~+70
|
||

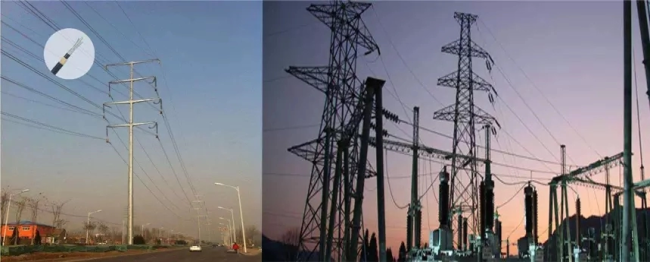

Application
