Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Price:
$0.05 - $0.50/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
Wanbao or OEM
Product Description

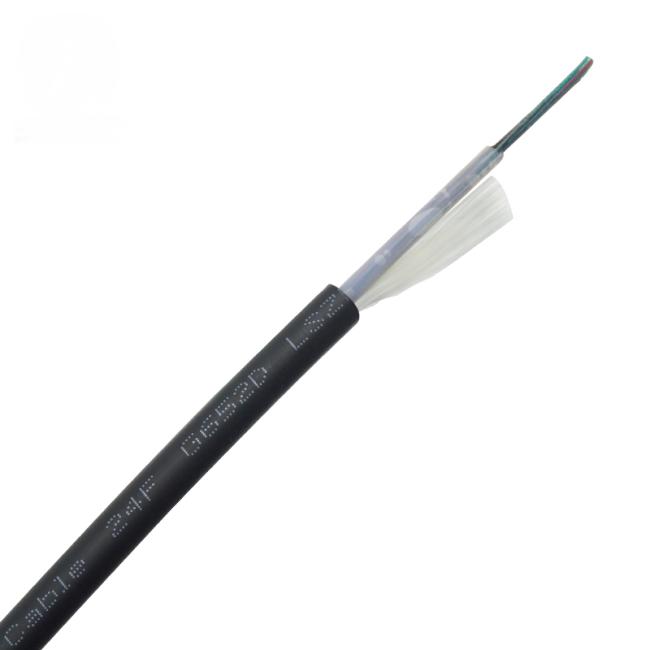

Small Volume Outdoor 1-12 Core Single Mode Fiber Optic Cable With Glass Yarn
Fibre Optic Cabling Internal/External Uni-loose Tube Distribution Cable GYFSTH 2-24 core G652D/G657A/G655

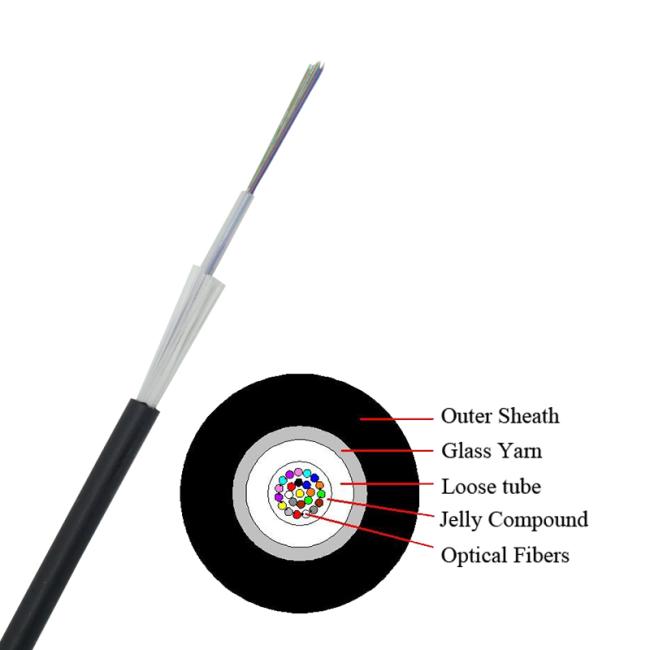

Outdoor drop cable having FRP rods as strength members and containing 1/2/4/6/8/12/24 fiber in full compliance with ITU-T G.652D or G.657A1. The offered cables are fully compliant to the relevant IEC specifications
PERFORMANCE
1. A choice of multimode and singlemode fibre types and specifications are offered with fibre counts from four to twenty four in
the standard range.
2. The very small diameter, lightweight and excellent environmental performance makes the cable ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.
the standard range.
2. The very small diameter, lightweight and excellent environmental performance makes the cable ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.
TECHNICAL DATA
|
No. of cable
|
|
|
2-24
|
||
|
Fiber Model
|
|
|
G.652D
|
||
|
Loose tube
|
Material
|
|
PBT
|
||
|
|
Diameter(±0.03)mm
|
|
0.35
|
||
|
|
Thickness(±0.06)mm
|
|
3.0
|
||
|
Outer Sheath
|
Material
|
|
LSZH
|
||
|
|
Thickness(±0.1)mm
|
|
1.3
|
||
|
Cable Diameter(±0.2)mm
|
|
|
6.4
|
||
|
Cable Weight(±5)kg/km
|
|
|
49
|
||
|
Min. bending radius
|
|
Without Tension
|
15.0×Cable-φ
|
||
|
|
|
Under Maximum Tension
|
20.0×Cable-φ
|
||
|
Temperature range
(℃) |
|
Installation
|
-5~+50
|
||
|
|
|
Transport&Storage
|
-30~+70
|
||
|
|
|
Operation
|
-20~+70
|
||
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Packaging detail: 2km / export wooden drum (your request is available )
Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
detailed information.
