* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black
FRP Strength GYFXTY Fiber Optic Cable 24 Core Single Mode For Outdoor
Price:
$0.30 - $0.70/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
ODM/OEM
Product Description
Good Quality GYFXTY outdoor 24 core single mode fiber optic cable
Product Description

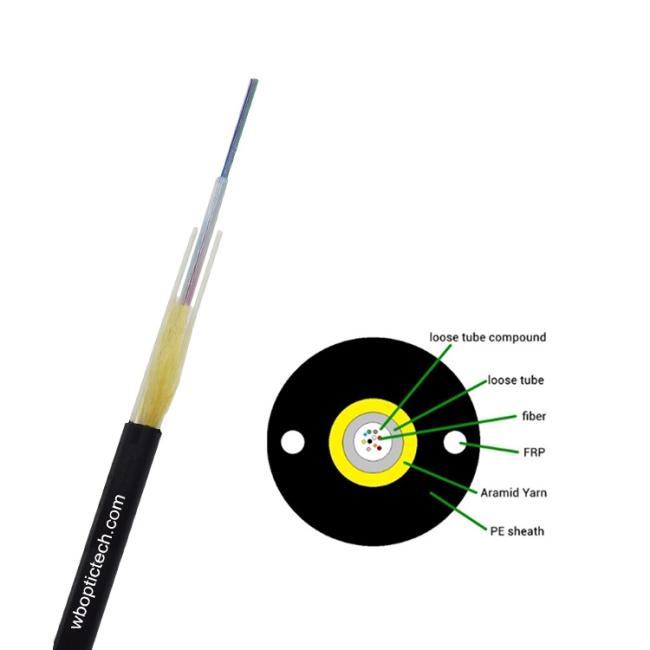

Non-Metallic FIBRE OPTIC CABLE- GYFXTY-FS
4/6/8/12/24F (G.652D or G.657A1) suitable for aerial installation
* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black
Technical data
|
1 Fiber Type
|
|
|
|
|
||||
|
Single mode fiber
|
9/125 (G.652D or G.657A1)
|
|
|
|
||||
|
Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1
|
|
|
|
|
||||
|
Attenuation
|
at 1310 nm
|
≤0,38 dB/km
|
|
|
||||
|
|
at 1550 nm
|
≤0,25 dB/km
|
|
|
||||
|
2 Fibre Colour Coding
|
|
|
|
|
||||
|
Color of fibers in a tube
|
blue, orange, green, brown, slate, white, red, black, yellow, violet, rose & aqua
|
|
|
|
||||
|
Colour of loose tube
|
natural
|
|
|
|
||||
|
Other fiber color sequences available on request.
|
|
|
|
|
||||
|
3 Water blocking Yarn
|
|
|
|
|
||||
|
Type
|
SZS-15.0 ×4 Root
|
|
|
|
||||
|
Color
|
White
|
|
|
|
||||
|
4 Sub Unit - Loose Tube
|
|
|
|
|
||||
|
Materials
|
PBT - polybutylene terephthalate
|
|
|
|
||||
|
Color
|
White
|
|
|
|
||||
|
Diameter
|
2.1±0.05mm
|
|
|
|
||||
|
Number
|
1 Root
|
|
|
|
||||
|
5 Strength Member
|
|
|
|
|
||||
|
Materials
|
FRP - Glass fiber reinforced plastic rods
|
|
|
|
||||
|
Color
|
White
|
|
|
|
||||
|
Diameter
|
1.0±0.05mm
|
|
|
|
||||
|
Number
|
2 Root
|
|
|
|
||||
|
6 Outer Sheath
|
|
|
|
|
||||
|
Materials
|
PE - Polyethylene
|
|
|
|
||||
|
Color
|
Black
|
|
|
|
||||
|
Diameter
|
6.5 ±0.2 mm
|
|
|
|
||||
|
Thickness
|
0.9±0.1 mm
|
|
|
|
||||
Application
* pole to pole installation for 60 – 70 m
* self supportive cable as very light in weight
* Lighter weight cable for faster and easier installation; easy access to the fibres
* completely dielectric
Packing
|
No.
|
Item
|
Index
|
|
1
|

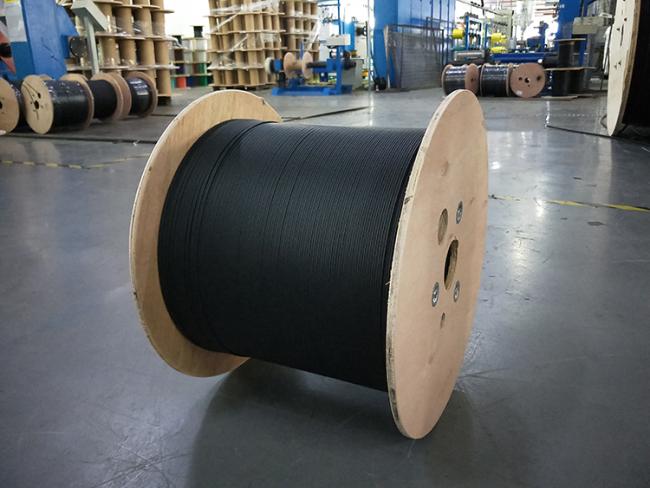

Length and packaging
|
2000m-4000m/wooden drums
|
|
2
|
Drum size
|
800×600×600mm (wooden drums)
|
|
3
|
Net weight
|
44.0 kg/km
|
|
4
|
Gross weight
|
59.0 kg/km
|
Company Information
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
