Male-Female Attenuators LC / SC / FC / ST Plug Type Attenuators ±10% Attenuation Accuracy

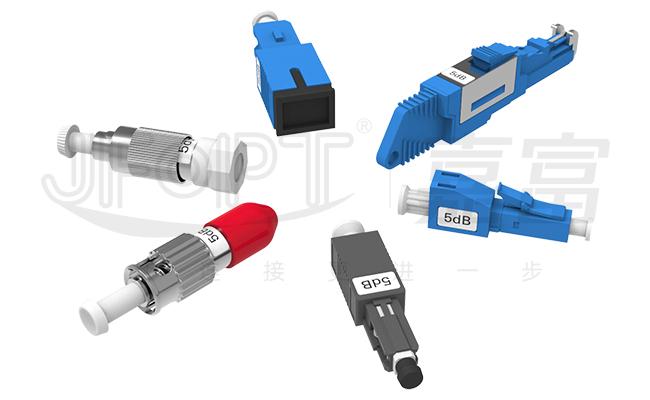

The plug type male-female attenuator, consists of a connector-type (male) and an adapter-type (female) at each end, with a fixed attenuation value. JFOPT's male-female attenuators are made with high-precision ceramic ferrules, ceramic sleeves, and attenuation fibers to ensure high attenuation accuracy, product stability, and low return loss. JFOPT can provide attenuators with different attenuation values ranging from 1dB to 30dB, available in various connector types such as SC/LC/FC/ST/MU/E2000, catering to different attenuation requirements for various equipment.
♦ Features
|

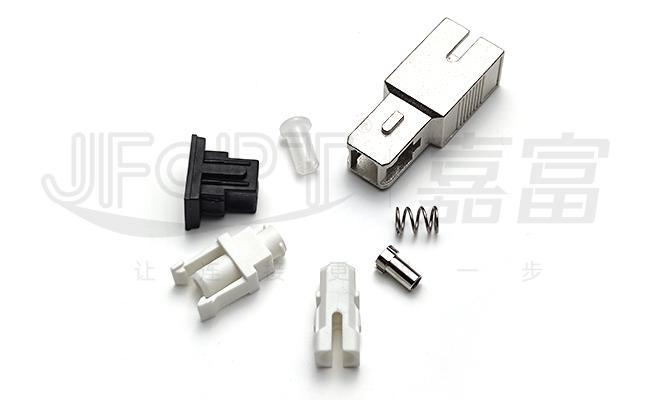

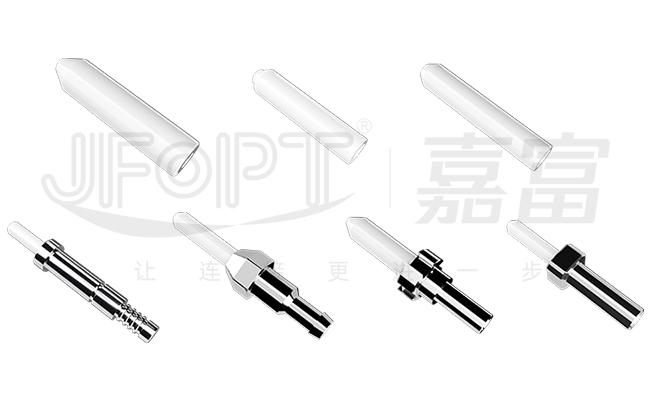

①Selects high-precision ceramic ferrules, ceramic sleeves, and attenuation fibers |
②High attenuation accuracy and stable optical performance |
||||
|
|
|
||||
|
③Advanced grinding equipment with low insertion loss and high return loss |
- |
||||
|
|
- |
||||
♦ Applications
1.Data centers
2.Optical network equipment
3.CATV systems
4.Testing equipment
♦ Technical Performance
|
Item |
Parameter |
|||||
|
Attenuation Value |
0～30dB (Interval 1dB) |
|||||
|
Attenuation Accuracy |
Attenuation Value |
1～5dB |
6～30dB |
|||
|
Accuracy |
±0.5dB |
±10% |
||||
♦ Attenuator Type
|

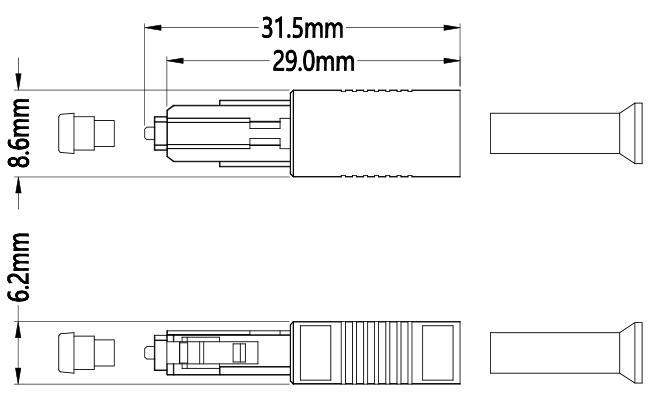

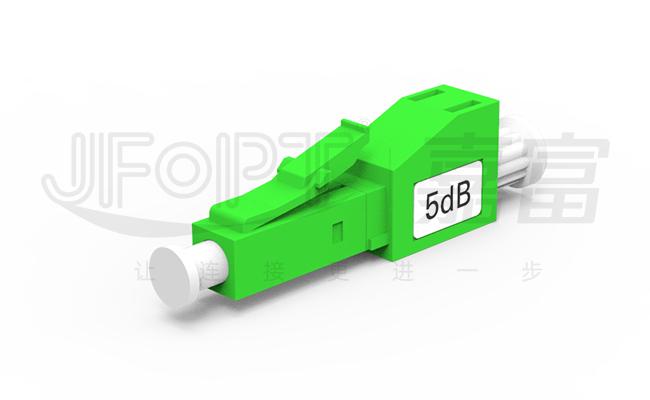

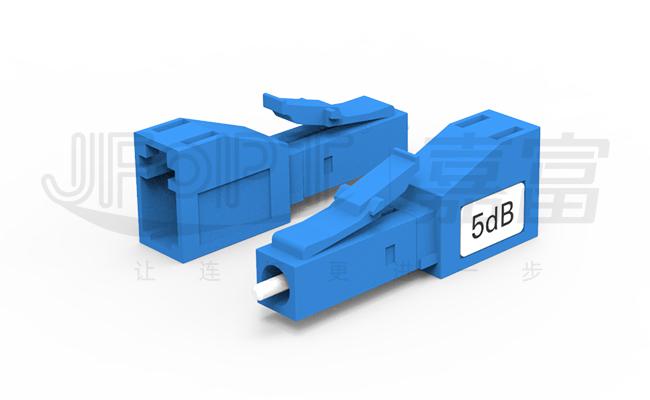

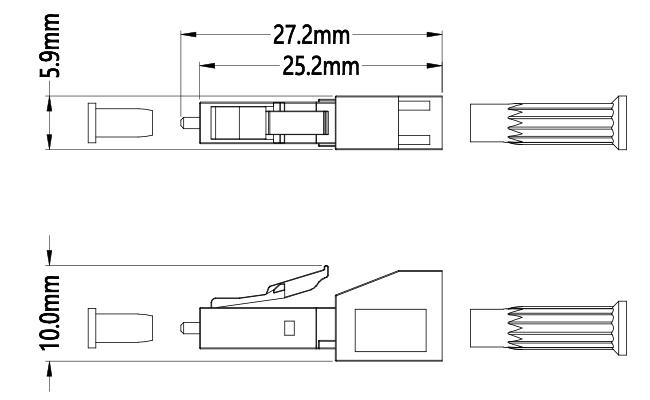

LC |
UPC |
APC |
||||
|
|
|
|||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

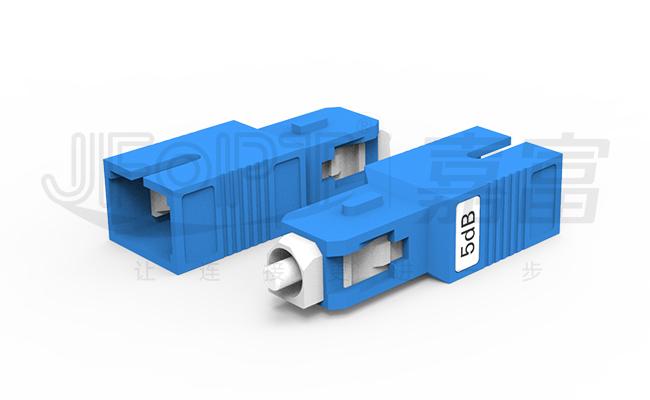

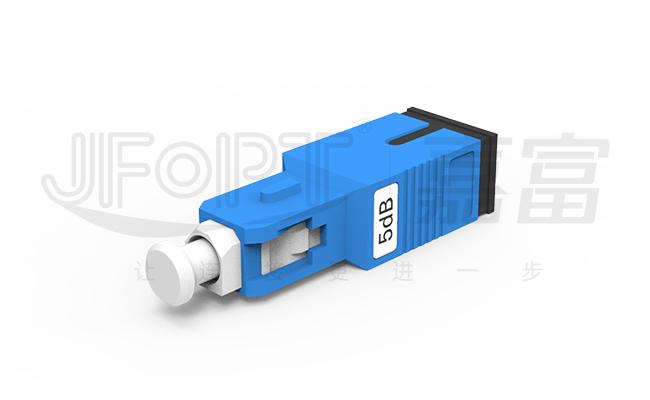

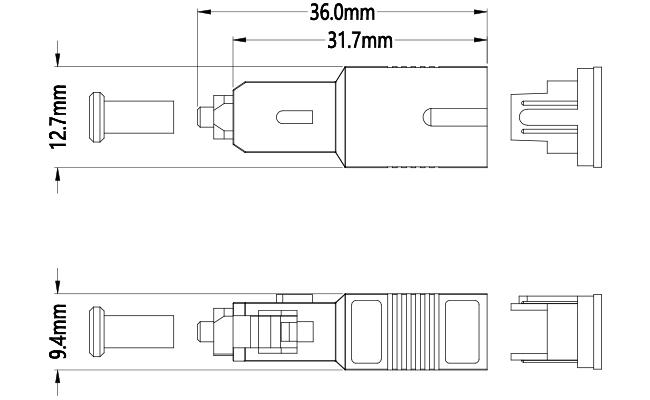

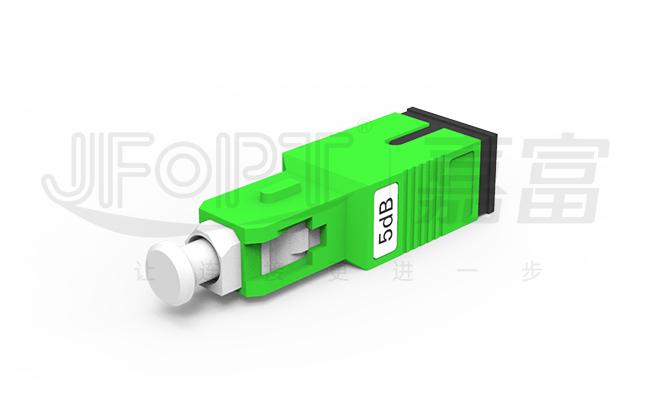

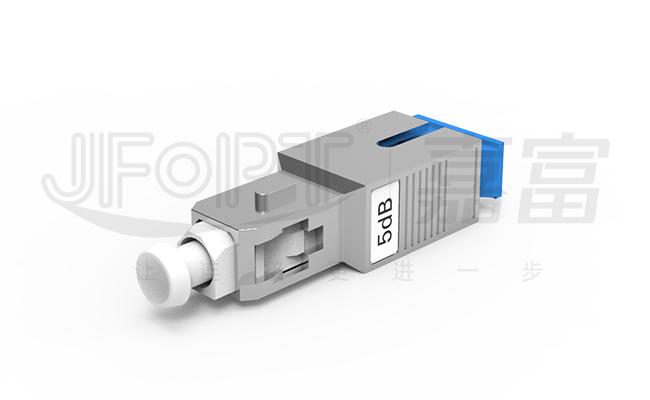

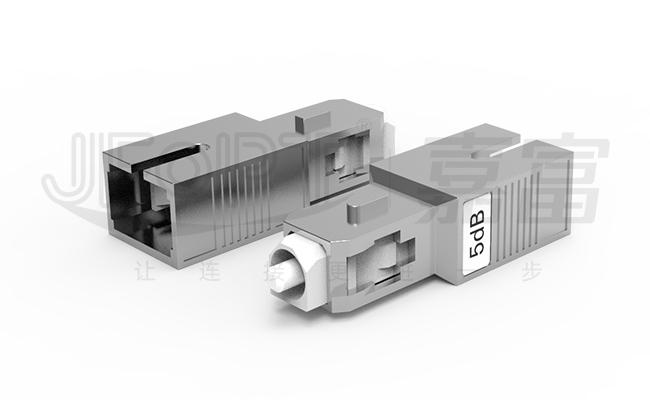

SC |
UPC |
APC |
||||
|
|
|
|||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

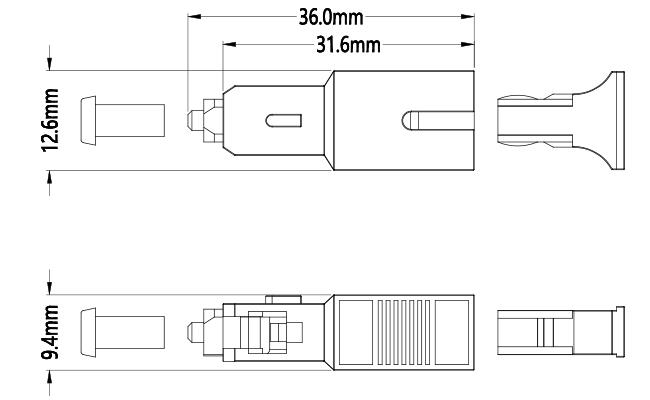

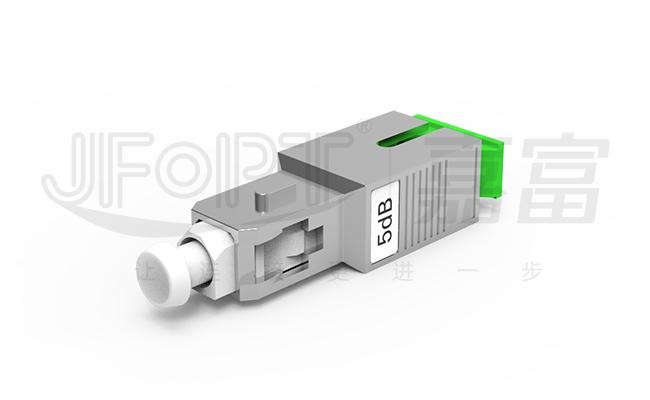

SC |
UPC |
APC |
||||
|
|
|
|||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

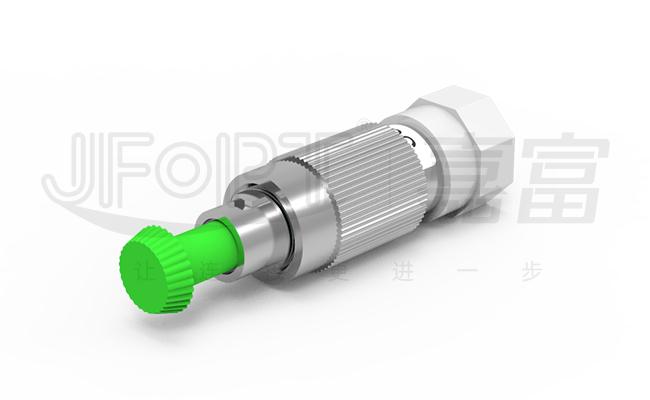

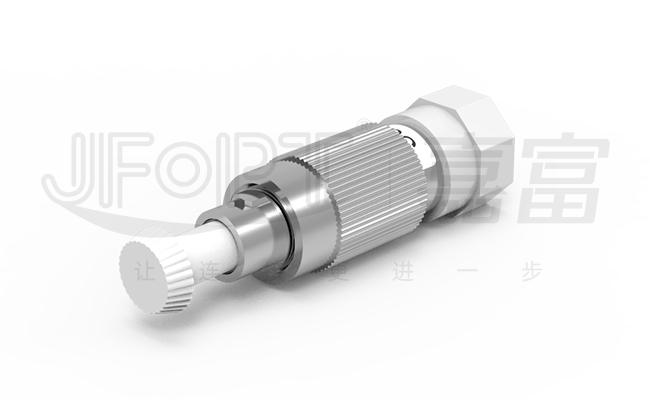

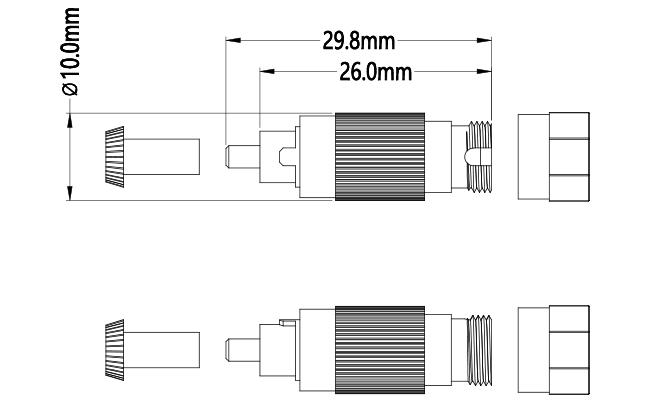

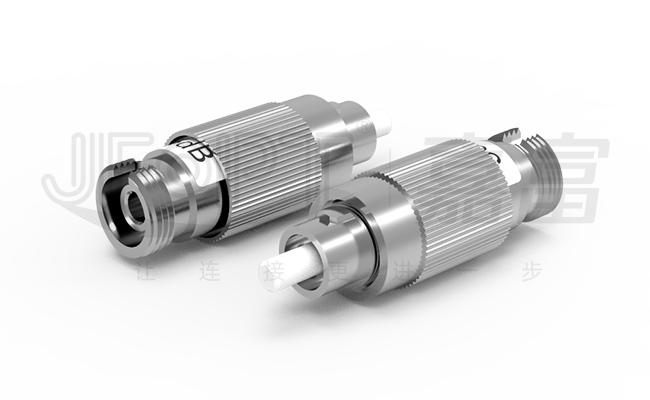

FC |
UPC |
APC |
||||
|
|
|
|||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

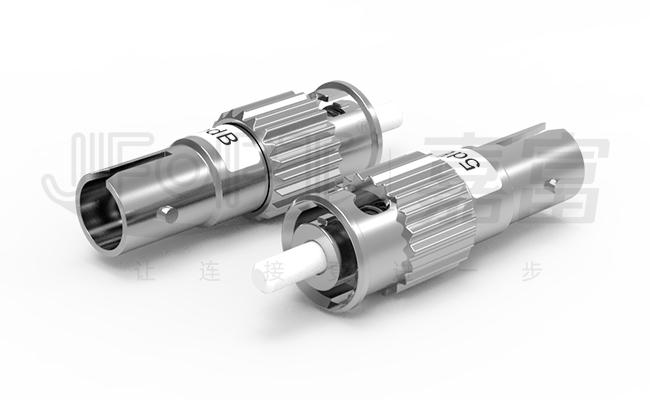

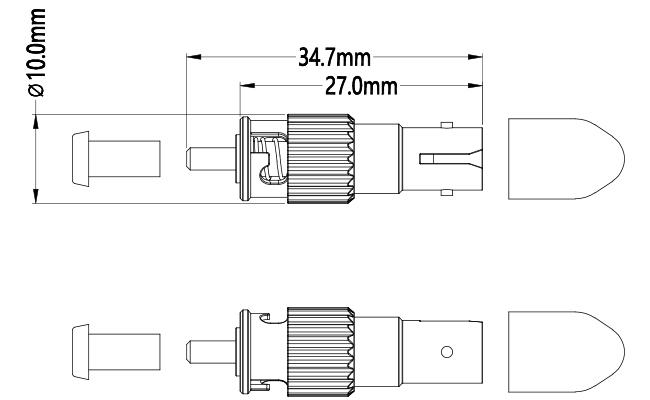

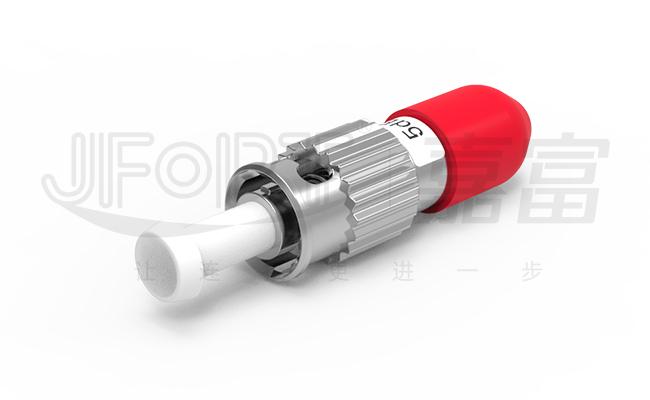

ST |
UPC |
|||||
|
|
||||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

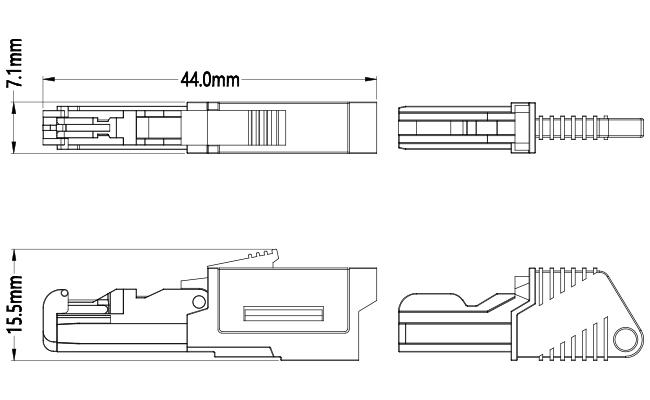

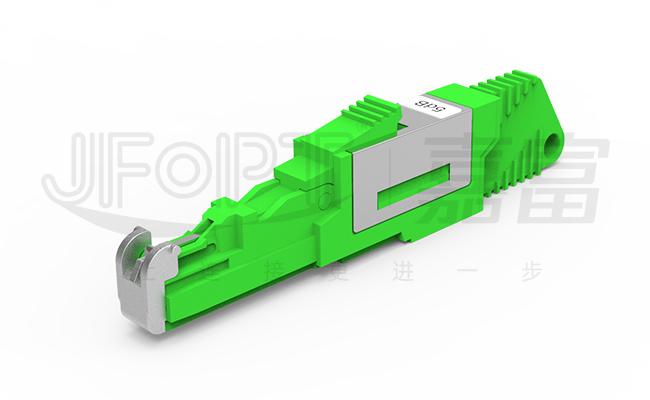

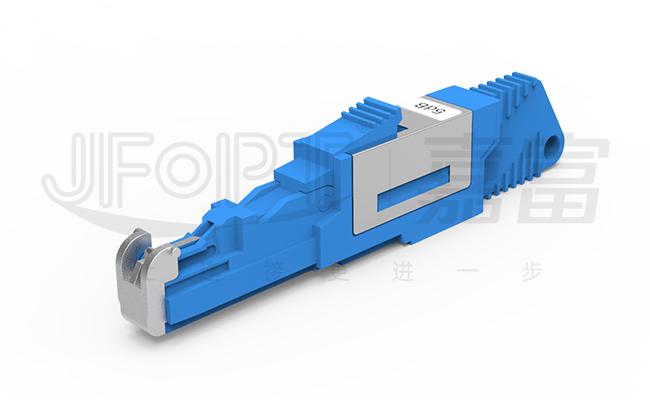

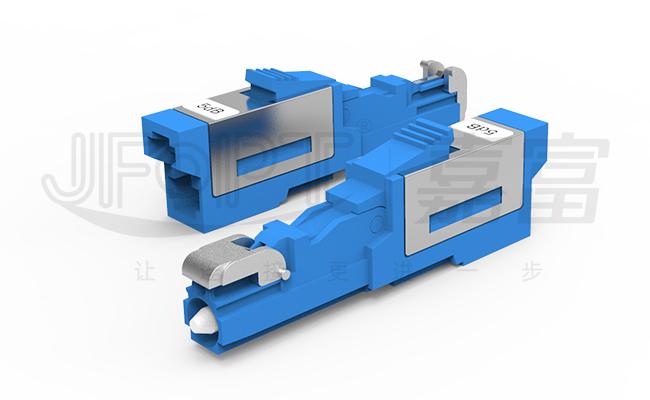

E2000 |
UPC |
APC |
||||
|
|
|
|||||
|
Image |
Drawing |
|||||
|
|
|
|||||
|

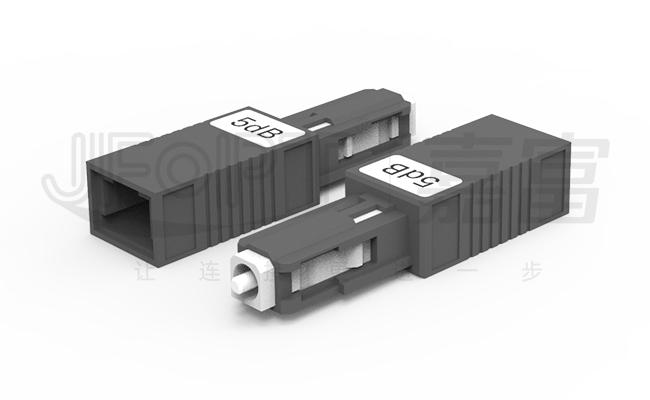

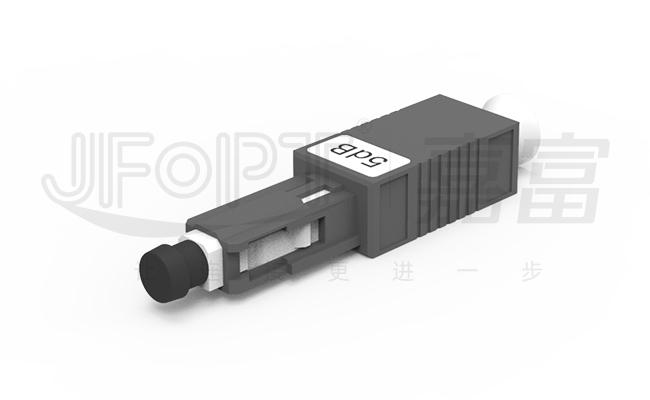

MU |
UPC |
|||||
|
|
||||||
|
Image |
Drawing |
|||||
|
|
|
|||||
♦ Product Packaging
|
|
|
|
|

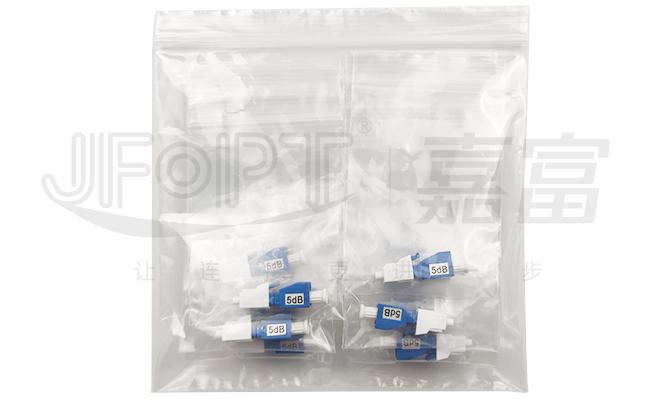

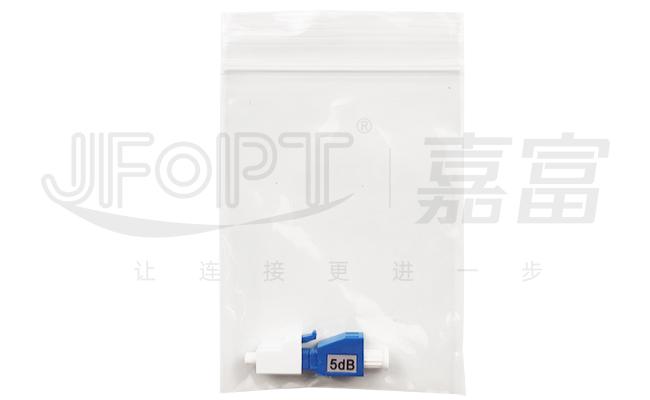

Packaging a single attenuator in an inner bag |
Packaging multiple attenuators in an outer bag |
Packaging |

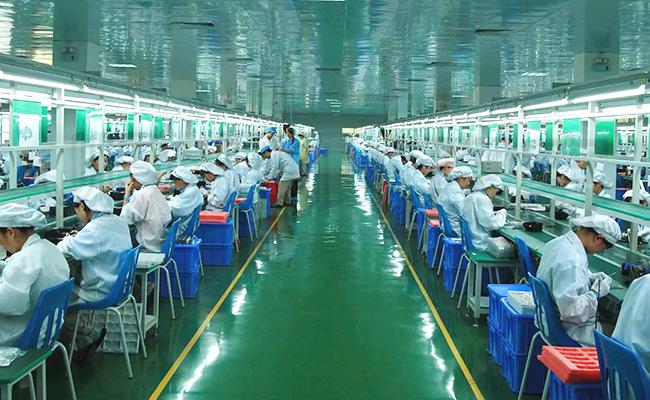

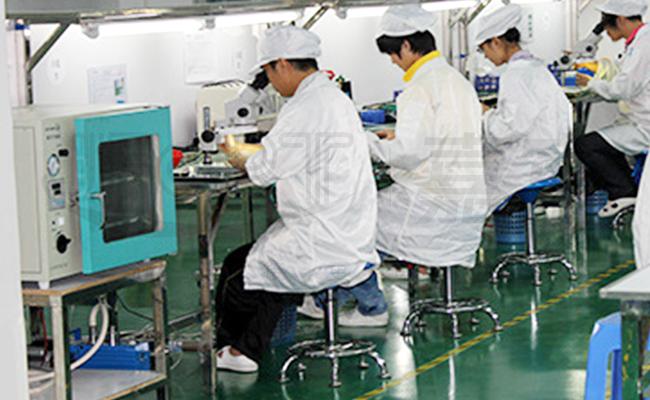

♦ Factory Strength
|
Specialization: JFOPT has professional technology and production equipment dedicated to the development and production of attenuators, including automated assembly, grinding equipment, and high-speed inspection instruments. |
|
|
Manufacturing Capacity: With 5 production lines, JFOPT can quickly and efficiently produce a large quantity of attenuators to meet customer demands. |
|
|

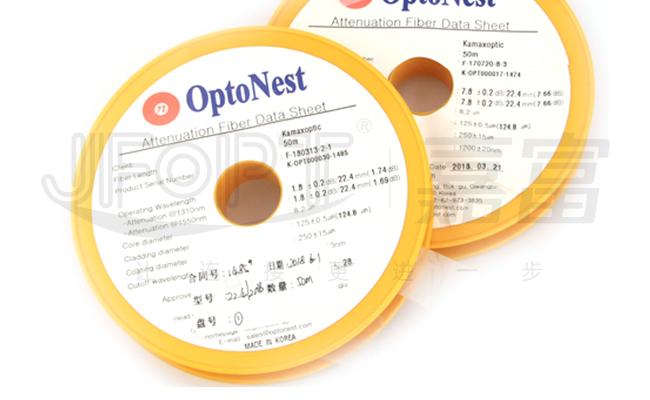

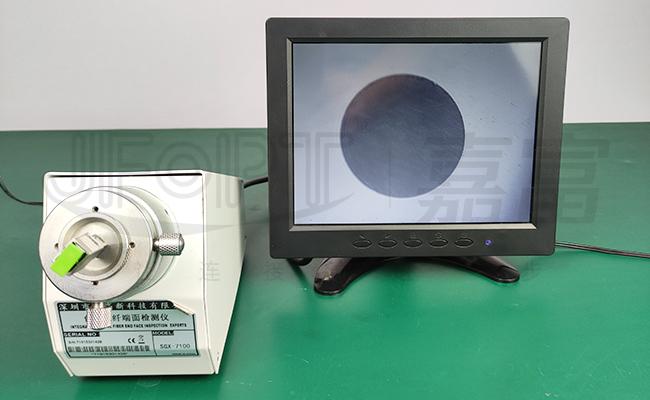

Quality Control: JFOPT implements strict quality control measures, using high-precision ferrules, components, and imported top-brand attenuation fibers. Each attenuator undergoes testing for attenuation value, connector end-face, and insertion loss to ensure product quality. |
|
|
Standardization: JFOPT has a professional and experienced R&D team that can provide fixed, adapter-type, male-female, inline, adjustable, and electronic attenuators. |
|
|
Technological Innovation: JFOPT emphasizes technological innovation and continuously upgrades and innovates its products, developing various types of adapters and special connector attenuators. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What factors should be considered when purchasing attenuators?
When purchasing attenuators, you should consider the type of attenuator, attenuation value, and connector type, among others.
2.Can our attenuators be customized?
Yes, we offer various types of attenuators, including inline attenuators, adapter-style attenuators, adjustable attenuators, and more, which can be customized according to your requirements.
3.Can the attenuation value of our attenuators be customized?
Yes, we can customize attenuation values ranging from 1dB to 30dB.
4.Besides attenuators, what other products do we offer?
In addition to attenuators, we offer a wide range of fiber optic products, including fiber optic patch cords/jumpers, fiber optic adapters, distribution boxes, termination boxes, fiber distribution frames (FDFs), splice closures, optical modules, splitters, and more.
5.What is our delivery lead time?
For standard products, the delivery lead time is typically within 3 working days.
