FTTH Drop LC/UPC DX Fiber Optic Cable APC End Face 2.0mm Single-mode/ G652D/ G657A/ G655
Product Description:
The Fiber Optic Patch Cord from JFOPT is a high-quality and reliable solution for all your fiber optic connectivity needs. It is a single mode 2.0mm LC/UPC DX fiber optic patch cord, designed and manufactured in China with CE and ISO9001 certification. This patch cord is suitable for a variety of applications and is guaranteed to provide excellent performance and durability.
The Fiber Optic Patch Cord is an essential component in fiber optic networks, providing a secure, efficient, and customizable solution for connecting fiber optic cables. With its high tensile strength, low insertion loss, and high repeatability, it is a reliable and durable option for various applications.
Product Features:
- High Tensile Strength: The Fiber Optic Patch Cord has a minimum tensile strength of 100N, making it highly durable and able to withstand pulling and twisting without breaking.
- Low Insertion Loss: With advanced manufacturing techniques and high-quality materials, the patch cord has low insertion loss, ensuring minimal signal loss during transmission.
- High Repeatability: The patch cord can be plugged and unplugged over 1000 times without losing its performance, making it a reliable and long-lasting solution for fiber optic connections.
- Flexible and Customizable: The Fiber Optic Patch Cord is designed to be flexible, allowing for easy installation and management. It can also be customized to meet specific length, color, and connector type requirements.
- Safe and Fire-Resistant: The patch cord's jacket is made of LSZH (Low Smoke Zero Halogen), PVC (Polyvinyl Chloride), or OFNP (Optical Fiber Nonconductive Plenum) materials, making it safe and fire-resistant.
Applications:
Technical Specifications:
| Connector Parameters | ||||

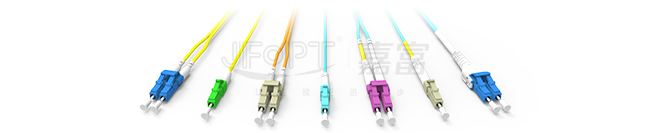

| Connector Characteristics | Connector Type | LC | ||
| Polish Type | APC | |||
| Ferrule Type | Grade A zirconia ceramic ferrule | |||
| Matching Cable Outer Diameter | 2.0mm | |||
| Connector Color | green | |||
| Insertion Loss | ≤0.3dB/≤0.2dB/≤0.15dB | |||
| Return Loss | SM: UPC≥50dB; APC≥60dB; MM: ≥25dB | |||
| Repeatability | ≤0.2dB | |||
| Interchangeability | ≤0.2dB | |||

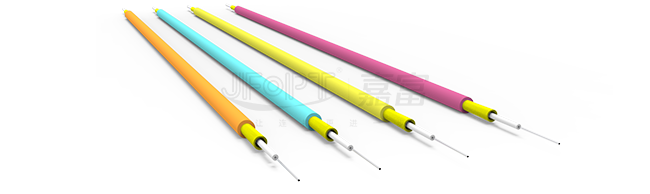

| Cable Characteristics | Fiber Type | G652D/ G657A/ G655 | ||
| Fiber Count | simplex | |||
| Jacket Material | PVC/LSZH/PU/PE or customized | |||
| Jackt Color | yellow | |||
| Temperature Characteristics | Operating Temperature | -20~70℃ | ||
| Storage Temperature | -40~80℃ | |||
| Cable Mechanical Performance | ||||||||
| Items | Specifications | |||||||
| Fiber Count | 1 | |||||||
| Tension(Long Term)/ N | 60 | |||||||
| Tension(Short Term)/ N | 100 | |||||||
| Crush(Long Term)/ N/10cm | 100 | |||||||
| Crush(Short Term)/ N/10cm | 500 | |||||||
| Min. Bend Radius(Dynamic)/mm | 50 | |||||||
| Min. Bend Radius(Static)/mm | 30 | |||||||
| Operating Temperature/℃ | -20～+60 | |||||||
| Storage Temperature/℃ | -20～+60 | |||||||
| Fiber Parameter | ||||||||
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
Ordering Information:
To order the Fiber Optic Patch Cord from JFOPT, please provide the following information:
- Model Number
- Quantity
- Jacket Type
- Connector Type
- Length
- Other Customization Requirements
For more information or to place an order, please contact us at sales@jfopt.com .
Thank you for choosing JFOPT for all your fiber optic connectivity needs.
Customization:
Certification: CE, ISO9001
Looking for a high-quality optical patch cord with customized service? Look no further than JFOPT! Our fiber optic patch cord is designed for single mode use and features a 2.0mm diameter with LC/UPC connectors in a duplex (DX) configuration. Made in CHINA, our patch cord meets the highest standards of quality and is certified with CE and ISO9001.
We have a minimum order quantity of 1, making it easy for you to order exactly what you need without any excess. And with our fast delivery time of 5-8 working days, you won't have to wait long to receive your order. Our packaging consists of sturdy carton boxes to ensure safe transportation to your location.
We offer flexible payment terms, including T/T, AliPay, and PayPal, to make the purchasing process convenient for you. And with a supply ability of 1000 pcs/day, you can rest assured that we have the capacity to fulfill your order.
As a manufacturer, we can also customize the cable length of your patch cord to your specifications. Our standard fiber connector is SC to SC, and our product is compliant with SGS, ROHS, TELCORDIA, and IEC standards.
But what sets our patch cord apart is its high impact cycle of 1500, making it durable and long-lasting for all your fiber optic needs. Trust JFOPT for reliable and customized service for your fiber optic patch cord.
Packing and Shipping:
The Fiber Optic Patch Cord is carefully packaged to ensure its safe arrival at its destination. The following steps are taken to protect the product during shipping:
- The patch cord is first wrapped in a layer of protective bubble wrap
- It is then placed in a sturdy cardboard box
- The box is filled with packing peanuts to prevent any movement during transit
- The box is sealed with strong tape to prevent any damage or tampering
For international orders, the patch cord is also placed in a waterproof and shockproof plastic bag before being packed in the box to further protect it during shipping.
Our shipping methods include:
- Standard shipping via reputable couriers such as UPS, FedEx, and DHL
- Expedited shipping options for urgent orders
- International shipping with tracking and insurance for added security
Customers can also choose to arrange their own shipping if they have a preferred carrier or shipping account.
For bulk orders, the patch cords are typically packaged in larger boxes with ample padding and protection to ensure safe delivery.
With our careful packaging and reliable shipping methods, you can trust that your Fiber Optic Patch Cord will arrive in perfect condition.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is JFOPT/OEM. - Q: What is the model number of this product?
A: The model number of this product is Single Mode 2.0mm LC/UPC DX Fiber Optic Patch Cord. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: What certifications does this product have?
A: This product is certified with CE and ISO9001. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1. - Q: What is the price of this product?
A: The price of this product is not applicable (NA). - Q: How is this product packaged?
A: This product is packaged in a carton box. - Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 5-8 working days. - Q: What are the available payment methods for this product?
A: The available payment methods for this product are T/T, AliPay, and PayPal. - Q: What is the supply ability of this product?
A: The supply ability of this product is 1000 pcs/day.
