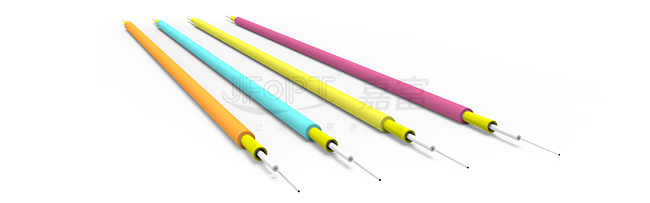

1m LSZH OEM SC-SC/UPC SX OS1/OS2/OM3/OM4 Fiber Optic Patch Cord with Ceramic Ferrule
Product Description:
The FTTH Drop Cable Patch Cord is a reliable and high-performance fiber optic patchcord suitable for use in various applications. Its high-quality design and adherence to international standards make it a top choice for your fiber optic network needs.
Features:
- Fiber Connector: The patchcord is equipped with SC to SC fiber connectors, which are widely used in fiber optic networks due to their compact size and easy installation.
- Tensile Strength: The patchcord has a high tensile strength of at least 100N, making it resistant to damage and suitable for use in harsh environments.
- Standard: The FTTH Drop Cable Patch Cord meets international standards, including SGS, ROHS, TELCORDIA, and IEC, ensuring its quality and safety.
- Fiber Type Selection:The patchcord is available in different fiber types, including single-mode,Multimode, OS1/OS2/OM3/OM4, providing flexibility and compatibility with various network requirements.
Applications:
The FTTH Drop Cable Patch Cord is suitable for various applications, including:
- Data centers
- Telecommunication networks
- CATV systems
Technical Specifications:
| Connector Parameters | ||||
| Connector Characteristics | Connector Type | SC | ||
| Polish Type | SM: UPC/APC；MM: UPC | |||
| Ferrule Type | Grade A zirconia ceramic ferrule | |||
| Matching Cable Outer Diameter | 0.9mm/2.0mm/3.0mm/4.0mm | |||
| Connector Color | blue/green/beige/auqa/violet | |||
| Insertion Loss | ≤0.3dB/≤0.2dB/≤0.15dB | |||
| Return Loss | SM: UPC≥50dB; APC≥60dB; MM: ≥25dB | |||
| Repeatability | ≤0.2dB | |||
| Interchangeability | ≤0.2dB | |||

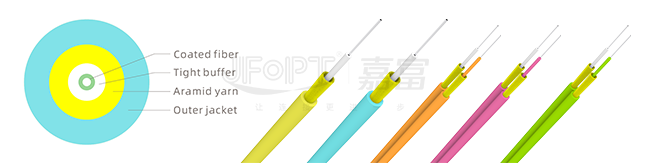

| Cable Characteristics | Fiber Type | OS2/OM1/OM2/OM3/OM4/OM5 | ||
| Fiber Count | simplex/duplex/multi-core | |||
| Jacket Material | PVC/LSZH/PU/PE or customized | |||
| Jackt Color | blue/orange /green /brown /gray /white /red/black /yellow/purple/pink /aqua | |||
| Temperature Characteristics | Operating Temperature | -20~70℃ | ||
| Storage Temperature | -40~80℃ | |||
| Cable Mechanical Performance | ||||||||
| Items | Specifications | |||||||
| Fiber Count | 1 | |||||||
| Tension(Long Term)/ N | 80 | |||||||
| Tension(Short Term)/ N | 150 | |||||||
| Crush(Long Term)/ N/10cm | 100 | |||||||
| Crush(Short Term)/ N/10cm | 500 | |||||||
| Min. Bend Radius(Dynamic)/mm | 50 | |||||||
| Min. Bend Radius(Static)/mm | 30 | |||||||
| Operating Temperature/℃ | -20～+60 | |||||||
| Storage Temperature/℃ | -20～+60 | |||||||
| Fiber Parameter | ||||||||
| SM: | ||||||||
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM: | ||||||||
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
Customization:
At JFOPT, we understand that every customer has unique needs and requirements. That's why we offer a customized service for our Fiber Optic Patch Cord to ensure that you get exactly what you need.
With our customized service, you can choose from a variety of options to create the perfect optical patch cable for your specific application:
- Fiber Type Selection: Choose from OS2/OM1/OM2/OM3/OM4/OM5 fiber types to suit your specific needs.
- Cable Length: Select from a range of standard lengths (1m, 2m, 3m, 5m, and 10m) or provide us with your desired length for a customized cable.
- Tensile Strength: Our Fiber Optic Patch Cord has a minimum tensile strength of ≥100N to ensure durability and reliability.
- Fiber Connector: Choose from a variety of connector options, including SC to SC, to match your equipment and network requirements.
- Fiber Counts: We offer patchcord fiber optic with 1 or 2 fiber counts, depending on your needs.
With our customized service, you can be sure that you are getting a high-quality, tailor-made Fiber Optic Patch Cord that meets your specific requirements. Contact us today to learn more about our customized service and how we can help you find the perfect solution for your fiber optic connector needs.
Packing and Shipping:
Our Fiber Optic Patch Cord is carefully packaged to ensure safe delivery to our customers. The product is first wrapped in protective bubble wrap and then placed in a sturdy cardboard box. The box is labeled with the product name and specifications for easy identification.
We offer various shipping options to fit our customers' needs. For domestic orders, we use trusted courier services such as FedEx, UPS, and USPS. For international orders, we work with reliable freight forwarders to ensure timely and secure delivery.
We take great care in packaging and labeling our products to prevent any damage during transit. In the rare event of a damaged product, please contact our customer service team for assistance.
Thank you for choosing our Fiber Optic Patch Cord. We are committed to providing high-quality products and excellent customer service.
