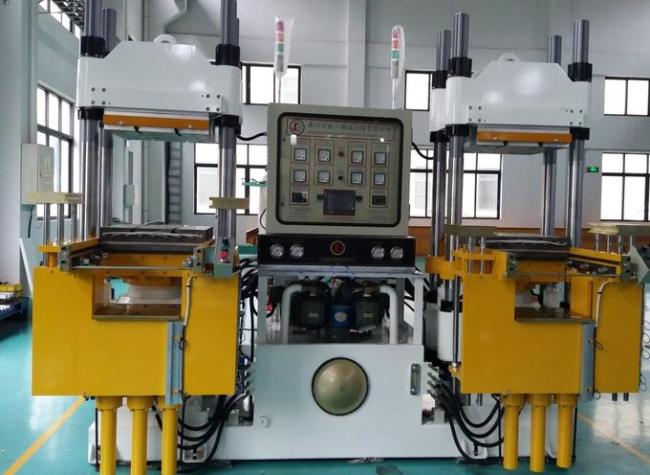

Horizontal Automatic 2 Shot Silicone Moding Machine For Silicone Insulation Mat

Main Features:

• This type of machine is multi-functional, suitable to be used for top opening double or triple mold plates.
• High force employs dual pressure and each oil system is designed separately. consistent, quiet and low frequency of malfunctions.
• Two shafts can be operated simultaneous.
• Slow moving speed is available for alignment more safe and more accurate.
• Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
• The speed to open and close the mold is adjustable. It is very accurate and reliable.
• The 3RT surpasses the traditional top opening mold that can be used for the tripleor four mold plates with the design of opening mold and pushing out the mold in between.
• The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.
•

Machine motions flow:

1. Setup the mold(initial status)
2. Supply the materials and start the process(close the mold)
3. Load the mold
4. The main ran goes up rapidly to a predetermined position,
5. The main ram goes up slowly, increase the pressure for molding. Expel bubbles out and curing.
6. The main ram goes down rapidly.
7. Unload the mold at a determined position.
8. Open mold and take out the final products.

200 Ton paremeter:

Main Technical Parameters:
