High-Performance Fired Clay Brick Making Machine for Large-Scale and Consistent Production
High-Performance Fired Clay Brick Making Machine for Large-Scale and Consistent Production
Technical Parameters:
| Function | To Supply The Raw Materials |
|---|---|
| Brick Type | Red Clay Bricks, Porous Bricks, Hollow Brick, Etc. |
| Customized | Customized |
| Feature | Easy Operation |
| Power | 7.5kw |
| Capacity | 30-70 M³/hr |
| Automatic Grade | Automatic |
| Model | GD100 |
Product Description:

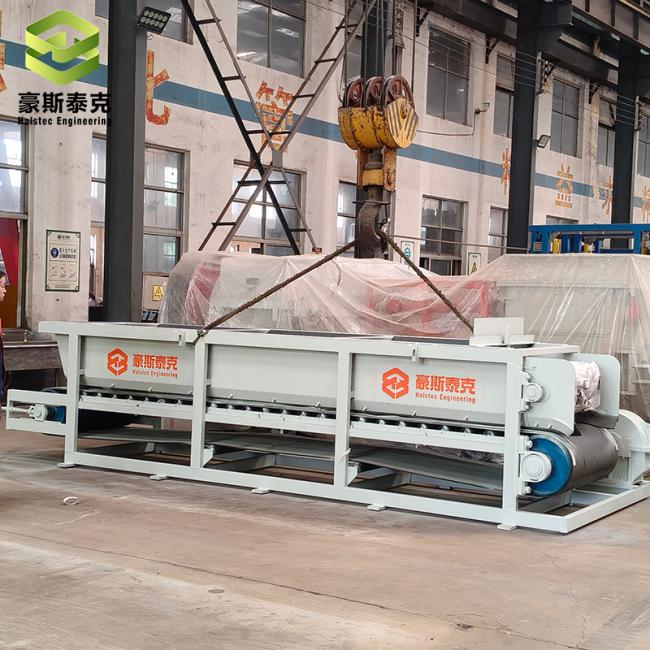

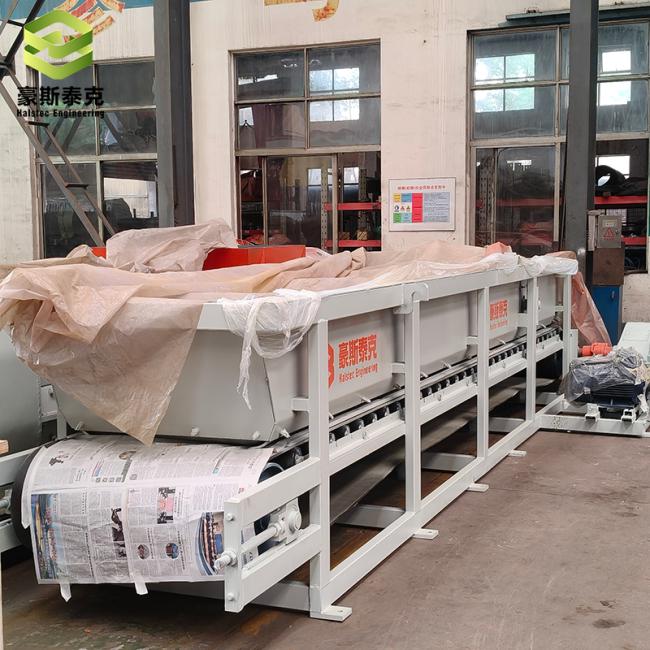

A Box Feeder, is a crucial front-end raw material handling equipment in the brick and tile manufacturing process. It is primarily used for receiving, storing, and conveying various brick-making raw materials—such as clay, coal gangue, shale, and sludge—in a uniform, stable, and controllable manner. It provides a consistent and balanced flow of material to the next process stage (e.g., mixing, crushing, aging). Its core function lies in the perfect integration of "box storage" and "uniform feeding," making it key to ensuring the continuous, efficient, and stable operation of a brick plant production line.
Working Principle:
The box feeder operates through a coordinated mechanical process:
Storage and Homogenization: Raw materials are loaded into the large open-top box by upstream equipment (e.g., a forklift), allowing for short-term storage and providing initial mixing and homogenization as the material moves.
Bottom Conveying: The bottom of the box is equipped with one or multiple sets of scraper conveyor mechanisms driven by chains. When the equipment starts, the motor drives the sprockets via a gear reducer, which in turn moves the chains and the attached scrapers forward along guide rails on the box floor.
Uniform Discharge: The moving scrapers steadily push the material accumulated on the box floor towards the discharge outlet.
Flow Regulation: An adjustable gate, whose height can be steplessly regulated, is installed at the discharge end. By adjusting the gate's opening, the layer thickness of the material can be precisely controlled, enabling accurate, stepless adjustment of the output rate and ensuring a constant material flow to subsequent equipment.
Application Scenarios:
Box Feeders are widely used in production lines for bricks, tiles, and refractory materials using raw materials such as clay, coal gangue, shale, fly ash, and river silt, including:
1. Fired brick production lines
2. Hollow brick production lines
3. Pavement brick production lines
4. Refractory material production lines
It is typically installed after the raw material aging yard, serving as the feeding equipment for main machines like mixers and vacuum extruders.
Customization:
Product Customization Services:
Brand Name: Halstec
Model Number: Box Feeder
Place of Origin: CHINA
Certification: ISO9001
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Nude in the container
Delivery Time: 60-70 days after advanced payment
Payment Terms: L/C, T/T or negotiation
Supply Ability: 2-5 sets per month
Power: 7.5kw
Automatic Grade: Automatic
Function: To Supply The Raw Materials
Feature: Easy Operation
Capacity: 30-70 M³/hr
Keywords: refractory ceramic fiber insulation, rcf fibres, refractory wool
Conclusion:
The Box Feeder acts as the "heart" and "buffer" of the raw material handling section in a brick plant. Its stable and reliable performance is the cornerstone for the efficient and high-quality operation of the entire production line. Selecting a well-designed and robustly manufactured Box Feeder not only effectively enhances product quality and output but also reduces equipment failure rates and maintenance costs, delivering long-term and stable economic benefits for the brick factory.
