China UHF 860-960Mhz RFID Windshield Tag Unti-Shedding High Temperature Resistance for sale

UHF 860-960Mhz RFID Windshield Tag Unti-Shedding High Temperature Resistance

Price Negotiable

Price: $0.12/pcs-$0.18/pcs

MOQ: 100

Delivery Time: Negotiable

Brand: SUOMA

Product Description

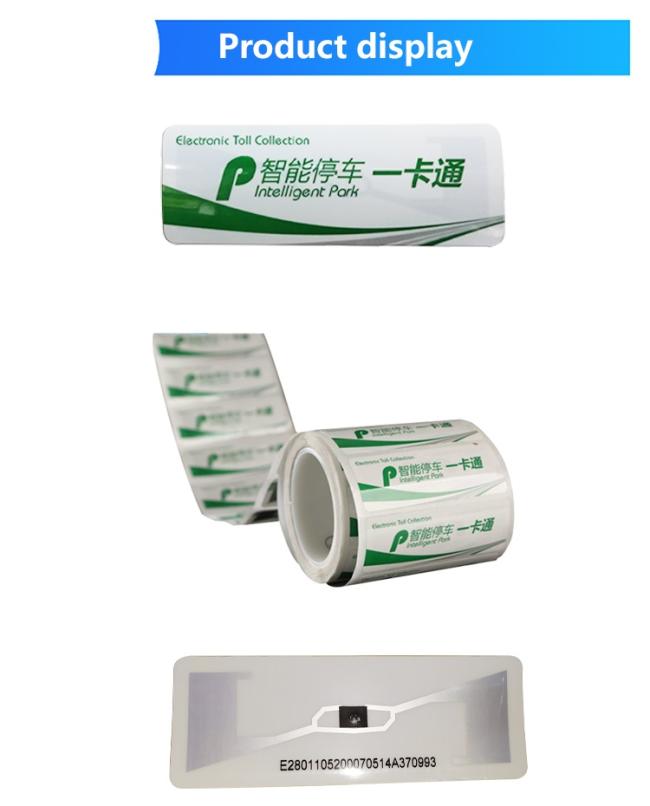

UHF 860-960Mhz Unti-Shedding High Temperature Resistance Rfid Windshield TagInlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID inlay can be divided into dry inlay and wet inlay. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + PET + Glue+ Release paper Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. SUOMA has technicians and offer antenna design sevice to meet various customer requirements.

Product Description

			Chip

			H9

			Frequency

			860～960MHz

			Material

			Coated Paper/ PET/Synthetic paper/Thermal paper/customization

			Working Mode

			Passive

			IC Life

			100,000 Programming cycles, 10years data retention

			Operating temperature/humidity

			-25~50℃/20%~80% RH

			Storage temperature/humidity

			+23°C±5°C/ 50%±10% RH(Without condensation).

			Antenna

			Aluminum Etching, 93*19mm

			Wet inlay/Label Size

			100*38mm or customization

			Printing

			Full Color Printing, Logo, Barcode, QR code, etc

			Sample

			Sample is free for your quality test

			Protocol

			ISO/IEC 18000-6C EPC Class1 Gen2

			Packaging

			1000-5000pcs/roll, 4 rolls /carton

			Place of origin

			Chengdu,china

			Application/Solution

			Secure Admission Control/Cashless Payment Membership and loyalty programs

			Event Access and Branding/Social Media/Retail

			Environment/Games & Toys Location/Electronics/Trade Shows

			Events/Call request/Business Cards

RFID Tag Windshield Label Tag 1~10m Long Range UHF RFID NFC/UHF Windshield Tags For Car Parking System Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID inlay can be divided into dry inlay and wet inlay. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + PET + Glue+ Release paper Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. SUOMA has technicians and offer antenna design sevice to meet various customer requirements.
