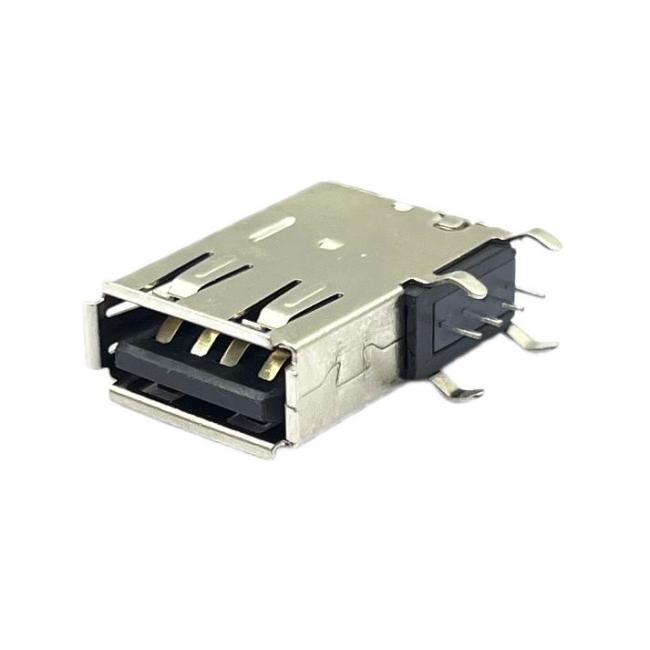

DIP USB Connector USB 2.0 Female Socket 4Pin
Price:
Negotiation
MOQ:
1200pcs
Delivery Time:
15-25 Days
Brand:
Jinze
Product Description
Specifications:
| Housing | PBT UL94V-0 Black |
| Cover | LCP UL94V-0 Black |
| Contact | C2680, T=0.25mm |
| Shell | SPCC, T=0.3mm |
| Contact Plating | Contact Area: Au 0.6u" |
| Solder Area: Matte Tin 80u" Plated | |
| Ni 50u" Min Underplated | |
| Shell Plating | Nickel 50u" Min Plated Overall |
| Current Rating |
1.5A |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 1000mΩ Min at DC 500V |
| Dielectric Withstanding Voltage | AC 500V For 1 Minute |
| Mating Force | 3.57KGF Max. |
| Unmating Force | 1.02KGF Min. |
| Durability | 1500 Cycles |
| Operating Temperature | -40ºC~+85ºC |
Images:

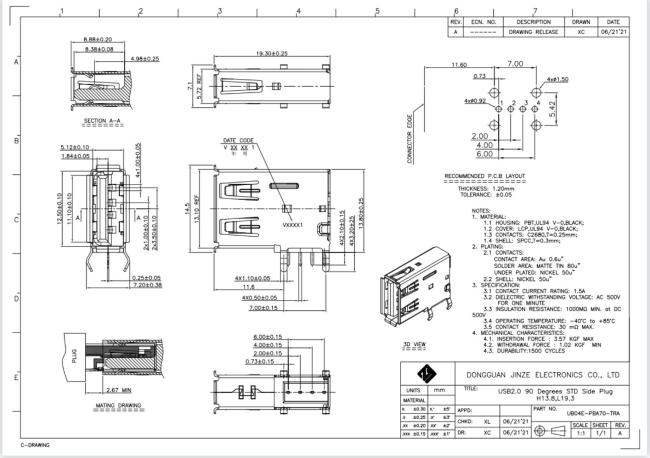

UB04E-PBA70-TRA.pdf, if you need the Drawing, pls download it
What is a USB Connector?
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
