LCP Black Female DIP USB Connector Socket USB2.0 90 Degrees RVS CH3.4mm Reel Packaging
Price:
Negotiation
MOQ:
1200pcs
Delivery Time:
15-25 Days
Brand:
Jinze
Product Description
LCP Black Female DIP USB Connector Socket USB2.0 90 Degrees RVS CH3.4mm Reel Packaging
Specifications:
| Housing | LCP UL94 V-0 HF Black |
| Contact | C2680 T=0.20mm |
| Shell | SUS201, T=0.30mm |
| Contact Plating | Goldflash Plated on Contact Area |
| Sn 80u" Plated on Solder Tails | |
| Ni 30u" Min Underplated | |
| Shell Plating | Ni 50u" Min Plated All over |
| Contact Current Rating | 1.5A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 1000mΩ Min. |
| Dielectric Withstanding Voltage | 500VAC R.M.S |
| Operating Temperature | -40ºC~+85ºC |

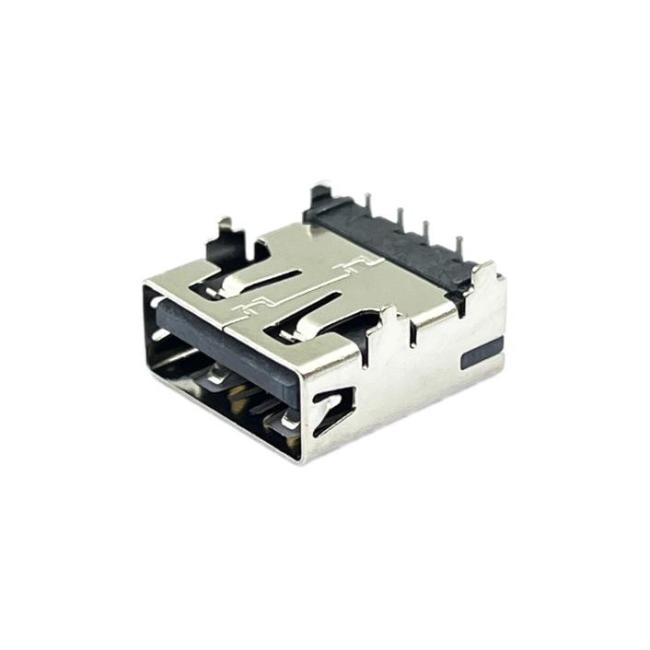

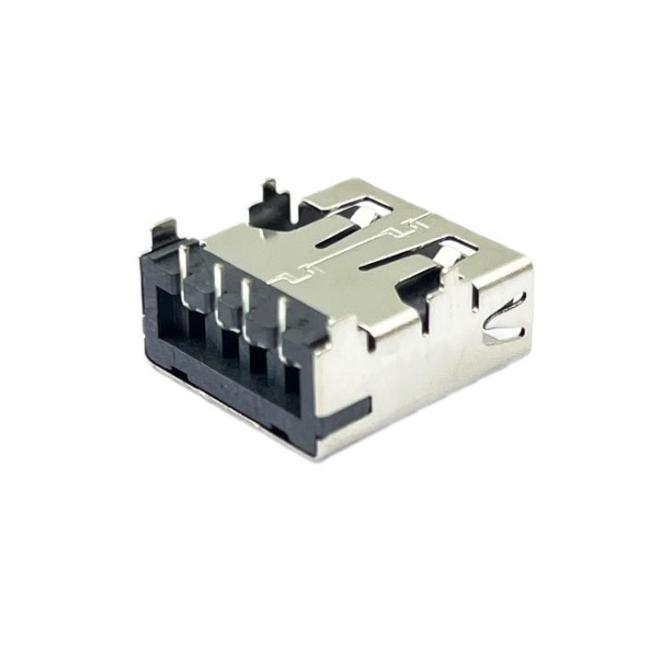

Images:

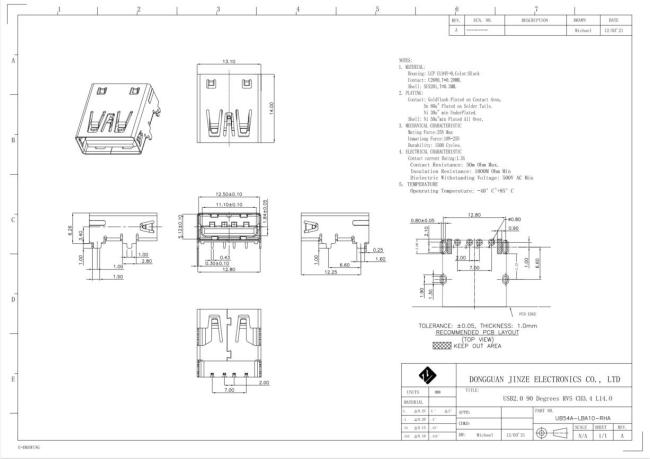

UB54A-LBA10-RHA.pdf, if you need the Drawing, pls download it
What is a USB Connector?
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
