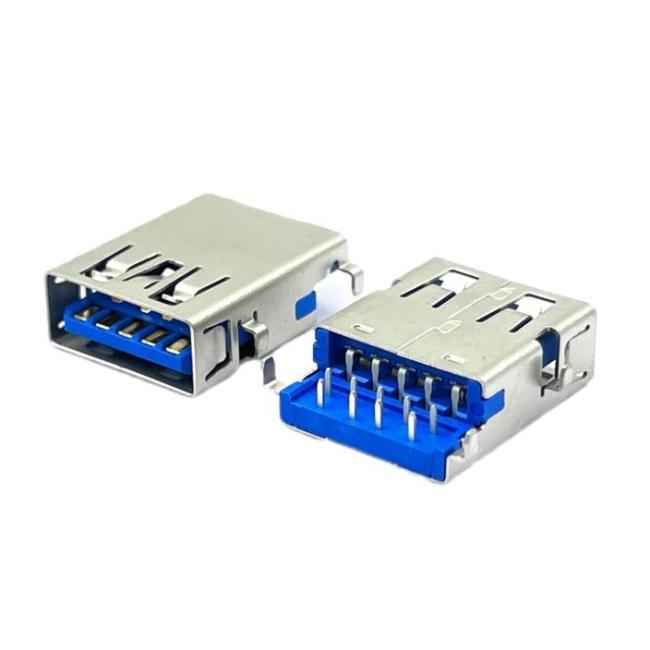

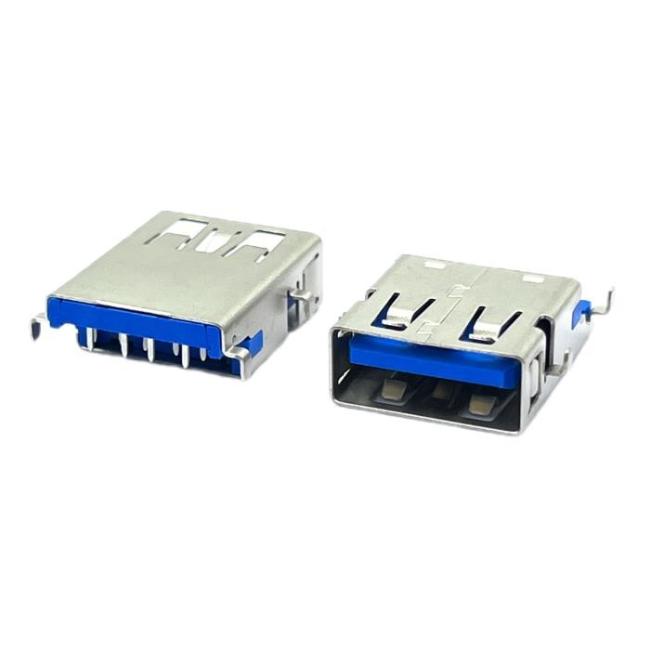

CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C

Price Negotiable

Price: Negotiation

MOQ: 1200pcs

Delivery Time: 15-25 Days

Brand: Jinze

Product Description

CH0.36mm USB3.0 A Solder Female DIP USB Connector Socket RVS 90 Degrees 9Pins Blue 300C

Specifications:

Housing	PA9T UL94 V-0 Blue 300C
Contact	4PIN C5191 T=0.25mm
	5PIN C2680 T=0.25mm
Shell	SUS201 T=0.3mm
Contact Plating	Au 1u" Plated on Contact Area
	Matte-Sn 80u" Min Plated on Solder Tails
	Ni 50u" Min Plated Over all
Shell Plating	Bright Nickel 50u" Min Plated All Over
Contact Current Rating	1.8A For Pin1& 4
	0.25A for other contacts
Contact Resistance	30mΩ Max. initial For Vbus & GND Contacts
	50mΩ Max Initial for All other Contacts
Insulation Resistance	1000mΩ Min. at DC 500V
Dielectric Withstanding Voltage	100VAC R.M.S
Mating Force	35N Max.
Unmating Force	10N Min.
Operating Temperature	-25ºC~+85ºC
Recommened Process	IR Feflow 260º 10S

Images:

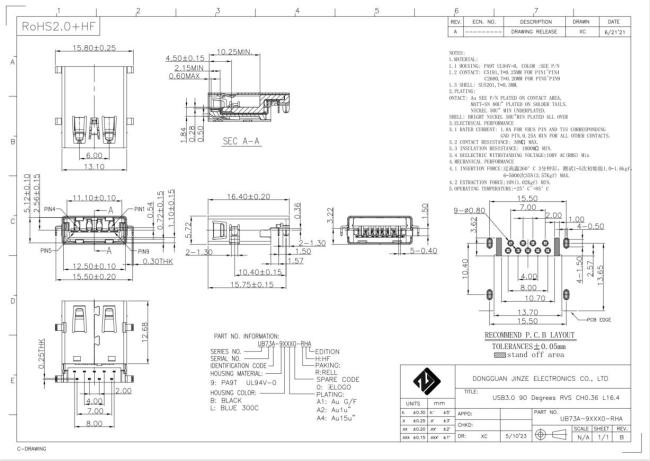

UB73A-9xxx0-RHA.pdf, if you need the Drawing, pls download it

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
