Bench Digital Lcr Meter Resistance Measurement Capacitance Inductance Analyzers

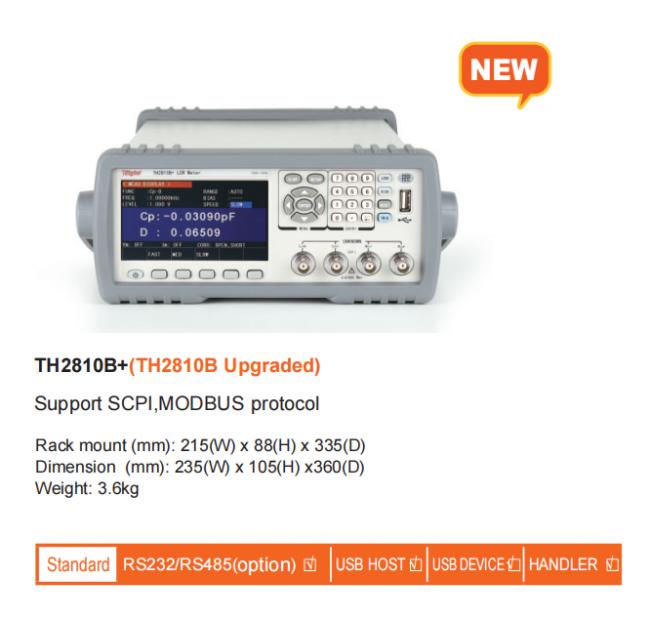

TH2810B+ Benchtop Type LCR Meter LCR Meter Component Parameter Test Instruments

1. Research and Development: LCR Meters find extensive use in research and development settings. Researchers employ LCR Meters to study the electrical characteristics of components and circuits, investigate new materials, and develop innovative designs. LCR Meters provide valuable data for analyzing performance, making improvements, and advancing technological advancements.

Features
■ 100Hz,120Hz,1kHz,10kHz 4 typical test frequencies
■ 4.3 inch TFT liquid crystal display, Chinese and English optional operation interface
■ 6-digit reading resolution
■ Maximum test speed:12.5ms, support low frequency and high speed:TX4+3ms
■ 10 bins sorting, test sorting is more perfect
■ 100 sets of LCRZ instrument setting files, 10 measurements
■ Soft power switch
■ Support 110V/220V two power supply voltages
■ 10-point list sweep, support multi-frequency test sorting
■ Ultra-low signal source output offset (<100μV), meeting the needs of large inductor, common mode choke inductor test
■ Super impact protection
■ Power on state lock button;
■ Empty fixture judgment
■ Data logging function
■ Screen capture function
■ Interface function, timing, trigger delay, etc. are more complete
