EuroII SHACMAN Yellow Dumper Truck F3000 8x4 Tipper Truck 380HP Right Driver
SHACMAN Dump Truck F3000 8x4 380HP EuroII
Detailed Product Description
Model: SX3315DT366R
Drive Type: 8X4 12 wheels
Engine Model: WP10.380E22 WEICHAI 280Kw/380Hp EuroII
Gearbox Brand: FAST 10JSD1480T-B +QH50
Dump Truck Parameters
| Model | SX3315DT366R | |
| Drive type | 8x4 | |
| Weight | Gross Vehicle Weight | ≤70 |
| Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
| Performance | Maximum speed/(km/h) | 45～60/85 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 279kw / 380Hp | |
| Maximum torque / (N.M)/rpm | 1600 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L+300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Advantages
- The SHACMAN F3000 8x4 380HP Right Hand Drive Tipper is a versatile heavy-duty vehicle designed for a variety of applications, especially for industries that need to transport large quantities of materials over challenging terrain. Some of the key applications for this tipper include
- The F3000 tipper is widely used in the construction industry for transporting building materials such as sand, gravel, crushed stone and other aggregates to building sites.

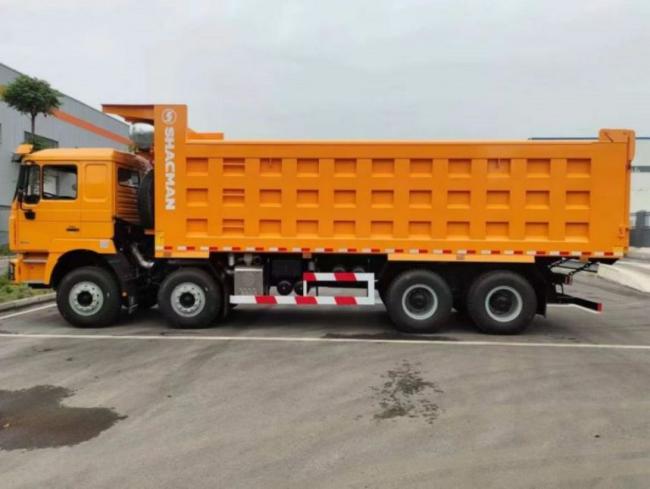

Truck Image
