SHACMAN CNG Dump Truck X3000 8x4 430 EuroV Blue
SHACMAN CNG Dump Truck X3000 8x4 430 EuroV Blue
Detailed Product Description
Model: SX33184V486T
Drive type: 8x4
Engine Brand: WEICHAI
Engine Model: WP13NG430E52 CNG
Engine Power/(kw/HP): 247kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200TA-B+QH50
Dump Truck Parameters
| Model | SX33184V486T | |
| Drive type | 8x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 1800+4775+1400 |
| Performance | Maximum speed/(km/h) | 42～52/66 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP13NG430E52 CNG | |
| Power/(kw/HP) | 247kw / 430Hp | |
| Maximum torque /(N.m)/rpm | 1600 N·m | |
| Displacement/(L) | 9.726 L | |
| Emission standard/ | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 12JSD200TA-B+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| CNG tank | Tank capacity/(L) | 8×150L |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat roof cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rear view mirror, electric automatic thermostatic air conditioner, electric window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grill, 165Ah maintenance-free battery, SHACMAN logo, full English logo | |
Overview
Manufacturer: SHACMAN is a well-known Chinese truck manufacturer that produces a variety of heavy-duty vehicles, including dump trucks.
CNG (Compressed Natural Gas): The "CNG" in the truck's name suggests that it operates on compressed natural gas, which is a cleaner alternative to diesel fuel. CNG vehicles are more environmentally friendly and can help reduce emissions.
X3000 8x4: The "X3000 8x4" likely refers to the truck's chassis configuration. An "8x4" configuration typically means that the truck has eight wheels in total, with four of them being powered. This configuration is often used for heavy-duty applications like dump trucks because it provides more stability and load-carrying capacity.

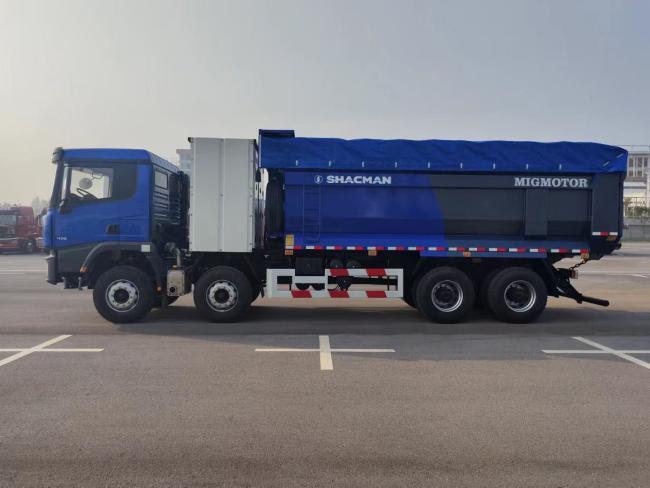

Detailed Image
