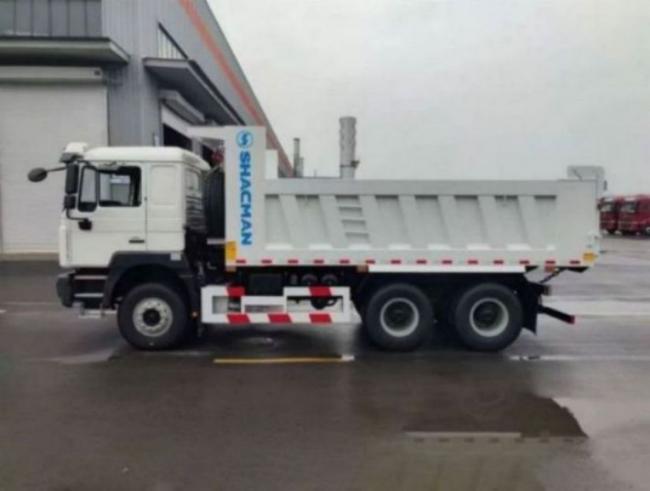

SHACMAN Safety Dump Truck F3000 6x4 420 EuroII White
SHACMAN Safety Dump Truck F3000 6x4 420 EuroII White
Detailed Product Description
Model:SX3255PR404
Drive type:6x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model:WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: 10JSD180
Tipper Dump truckTruck Parameters
| Model | SX3255PR404 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤70 |
| Dimensions | Wheelbase/(mm) | 3975+1400 |
| Performance | Maximum speed/(km/h) | 33～50/65 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Power/(kw/HP) | 250kw / 340Hp | |
| Maximum torque / (N.M)/rpm | 1250 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B-Iron case - QH50 (embodies shift air assist) | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Desert air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×320(8+7+8) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 6.733 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Offset single-sided cab |
| Equipment | Offset single-sided cab, airbag main seat, built-in air conditioner, sliding window glass, electric flip, iron storage cylinder, gearbox flexible shaft operation, 180Ah maintenance-free battery SHACMAN logo, full English logo. | |
- Engine: The truck is equipped with a powerful 420 horsepower engine, providing ample power for efficient transportation of heavy loads. The engine meets the Euro II emission standard, ensuring a certain level of emissions control and compliance.
- Configuration: The SHACMAN F3000 Safety Dump Truck has a 6x4 configuration, meaning it has six wheels with four of them powered. This configuration offers good traction and load-carrying capacity, making it suitable for various terrains and demanding applications.
- Safety Features: The Safety Dump Truck is designed with a focus on safety. It incorporates features such as an advanced braking system, anti-lock braking system (ABS), and electronic stability program (ESP) to enhance stability and control during operation. Additionally, the truck may include safety features such as airbags, seat belts, and a reinforced cab structure to protect the driver and passengers.
Detailed Image
