Industrial SHACMAN Dump Truck F3000 6x4 Heavy Duty Dumper Truck Transportation

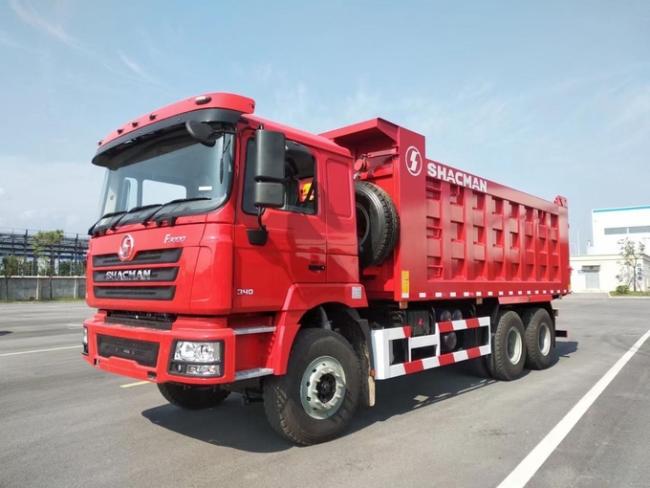

SHACMAN F3000 6x4 Dump Truck 400hp
Detailed Product Description
Model:SX3255DU384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP12.400E201
Engine Power/(kw/HP): 294kw / 400Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dump Truck Parameters
| Model | SX3255DU384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 mm |
| Performance | Maximum speed/(km/h) | 45～60/80 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.400E201 | |
| Power/(kw/HP) | 294kw / 400Hp | |
| Maximum torque / (N.M)/rpm | 1800 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Truck Advantages
- The F3000 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.
- Technology leader in the industry, with the only State Key Laboratory of internal combustion reliability, modern state-level enterprise technology center, and the first-class product experimental center in China.
- Weichai four-valve engine has strong power with large output torque, at lower engine speed. It is the best power and explosive force in the industry.
