EuroII SHACMAN H3000 Tractor Truck 400HP White 6x4 Tractor Head
SHACMAN H3000 Tractor Truck 6x4 400HP EuroII White
Detailed Product Description
Model: SX4255HU324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.400E201
Engine Power/(kw/HP): 294kw / 400Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
| Model | SX4255HU324 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3175+1400 |
| Performance | Maximum speed/(km/h) | 45～60/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.400E201 | |
| Power/(kw/HP) | 294kw / 400Hp | |
| Maximum torque / (N.M)/rpm | 1800 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
| Rear | Multi-layer plate spring 2 main plates + 2 U-shaped bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 (10+1) |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN H3000 Extended flat roof cab |
| Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Tractor Truck Advantages
- Powerful Performance: The H3000 tractor truck is equipped with a 400 horsepower engine, providing ample power for hauling heavy loads and tackling challenging terrains.
- Euro II Emission Standard: While Euro II is not the most recent emission standard, the H3000 complies with the Euro II regulations, ensuring environmentally responsible operation.
- 6x4 Configuration: The truck's 6x4 configuration offers excellent traction and load-carrying capacity, making it suitable for heavy-duty transportation tasks and off-road conditions.

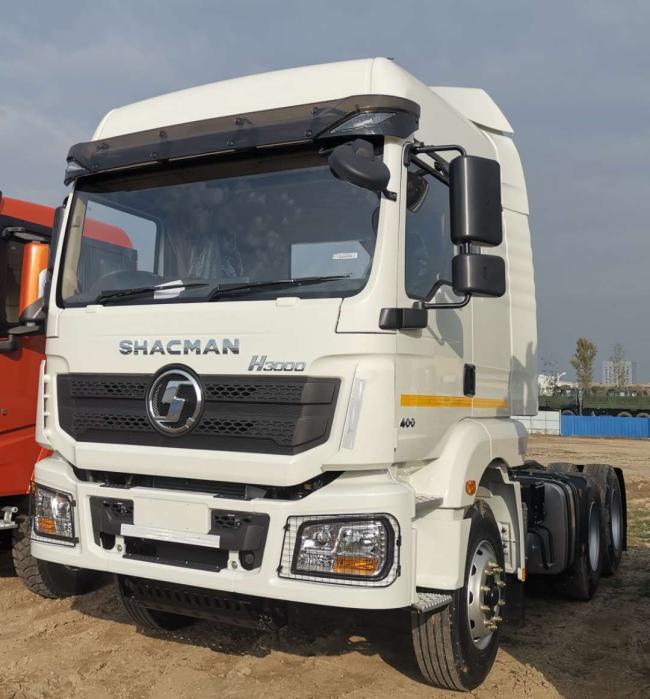

Truck Detailed Image
