CCC SHACMAN F3000 Tractor Truck 6x4 430HP EuroIII Shacman Tractor Truck
SHACMAN F3000 Tractor Truck 6x4 430 HP EuroIII
Detailed Product Description
Model: SX4255DV324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.430N
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
| Model | SX4255DV324 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3175+1400 |
| Performance | Maximum speed/(km/h) | 45～60/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.430N | |
| Power/(kw/HP) | 316kw / 430Hp | |
| Maximum torque / (N.M)/rpm | 2060 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | Euro III | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
| Rear | Multi-layer plate spring 2 main plates + 2 U-shaped bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 (10+1) |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Extended flat roof cab |
| Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Tractor Truck Advantages
- With its ample storage space and efficient loading capabilities, the F3000 facilitates organized and streamlined cargo handling.
- As a transportation-focused factory, relying on the F3000 enables timely and reliable delivery of products to customers.
- The F3000 tractor truck's reliable performance and versatility make it a preferred choice for various transportation needs.
- SHACMAN's F3000 tractor truck combines rugged engineering with innovative features, meeting the demands of the transportation industry.
- Whether transporting goods locally or over long distances, the F3000 tractor truck from SHACMAN provides a dependable solution for efficient and effective transportation.

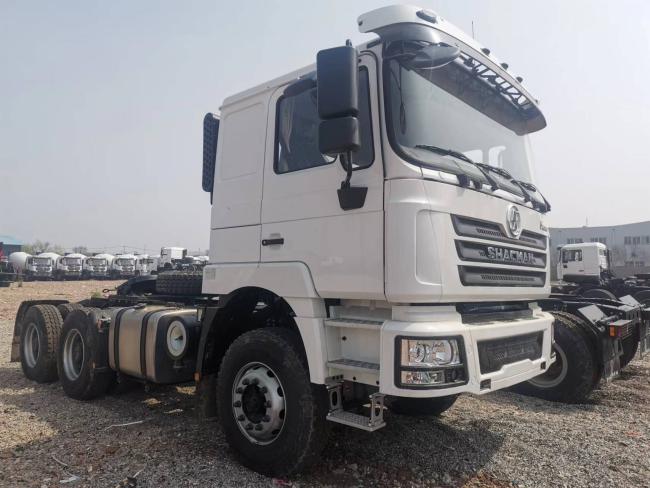

Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
