SHACMAN Dump Truck 6x4 H3000 340 EuroII Blue Cargo box for u-type tipper
SHACMAN Dump Truck 6x4 H3000 340 EuroII
Detailed Product Description
Model:SX3255MR384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:W10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dump Truck Parameters
| Model | SX3255MR384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | W10.340E22 | |
| Power/(kw/HP) | 250kw / 340Hp | |
| Maximum torque / (N.M)/rpm | 1250N.m | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN H3000 Standard cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. | |
- Dumping Capability: It is equipped with a hydraulically operated dump body, allowing the cargo bed to be raised and tipped to unload materials at the desired location.
- Tri-Axle Configuration: The truck has three axles, providing increased load-carrying capacity and stability.
- Payload Capacity: The specific payload capacity would depend on the truck's configuration and design, but dump trucks are typically designed to carry significant loads.
- Cabin: The truck may have a comfortable and spacious cabin with features like air conditioning, power steering, and other amenities for the driver's comfort.

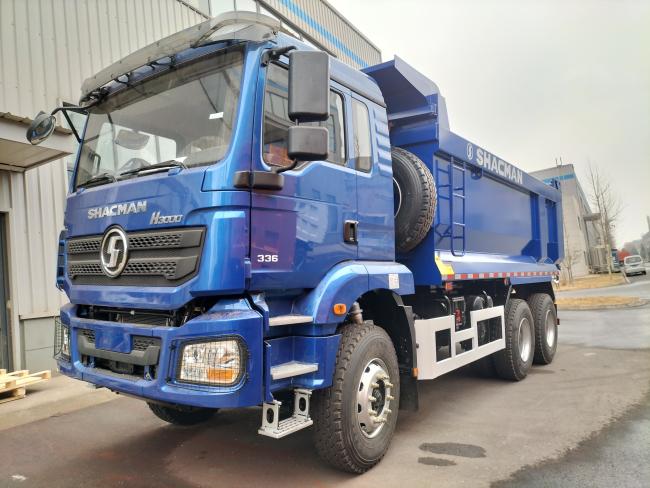

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
