Diesel Engine SHACMAN H3000 Tipper Dump Truck 8x4 430Hp Euro V
SHACMAN H3000 8X4 Dump Truck 430Hp
Detailed Product Description
Model: SX3318MV366
Drive Type: 8x4
Engine Model: WEICHAI WP12.430E50
Gearbox Model: FAST 10JSD180+QH50
Axle: HADE MAN 2*9.5 / 2*16T
Dump Truck Parameters
| Model | SX3318MV366 | |
| Drive Type | 8x4 | |
| Weight | Gross Vehicle Weight | ≤70 |
| Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E50 | |
| Power/(Kw/HP) | 316kw / 430Hp | |
| Maximum torque / (N.M)/rpm | 1650 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro V | |
| Gearbox | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN H3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Advantages
- The SHACMAN H3000 Tipper Truck 8x4 430Hp Euro V emission standard is designed to limit the amount of harmful pollutants emitted by vehicles, including nitrogen oxides (NOx), particulate matter (PM) and other pollutants. Euro 5-compliant Weichai engines help reduce emissions, thereby minimising the vehicle's environmental impact and contributing to improved air quality.
- The H3000 series leaves no room for compromise when it comes to power. Equipped with robust engines, it delivers formidable horsepower, torque, and acceleration, making it a force to be reckoned with in tackling heavy loads and challenging terrains.

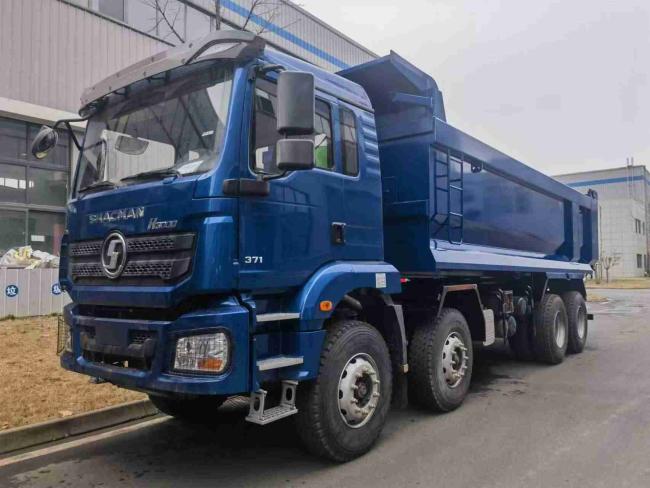

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
The final inspection helps to ensure that only qualified products are distributed, thereby minimizing the chance that customers will receive defective or substandard products. This is to keep customer satisfaction, maintain the brand reputation, follow the quality standard and the steps necessary to comply with the laws and regulations.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
