Red Green Blue White LED COB 10W 12V 4in1 cob led chip 1313 RGBW COB LED Chips tunable cob led chip new design Evenly distributed colors Uniformly distributed light
10 Watts 4 In 1 1313 12V RGBW COB Led Chips Red Green Blue White Full Color Details
- High Reliability and Stability
- Pure gold wire bonding chips in circular array
- High quality Aluminum or Copper substrate applied
- Strict Chip Selection to maintain color consistency (Mac Adam 3 steps, 4 steps and 5 steps or customer defined binning X Y Coordinates range)
- Regular models in stock
|
Rgbww rgbcw cob led 1313 10W
|
||||||||
|
Item
|
Power
|
Colors |
Voltage
|
Current
|
Wd/cct
|
Series
|
Lumen |
Cri
|
|
1310
RGB+CCT
Cob led
|
10w
|
Red
|
10-12v
|
150ma
|
620-625nm
|
5s 1p
|
70-90lm
|
/
|
|
Green
|
150ma
|
520-525nm
|
4s 1p
|
80-100lm
|
/
|
|||
|
Blue
|
150ma
|
460-465nm
|
4s 1p
|
20-30lm
|
/
|
|||
|
White
|
300ma
|
2700k/6500k
|
4s 2p
|
800-1100lm
|
90ra
|
|||

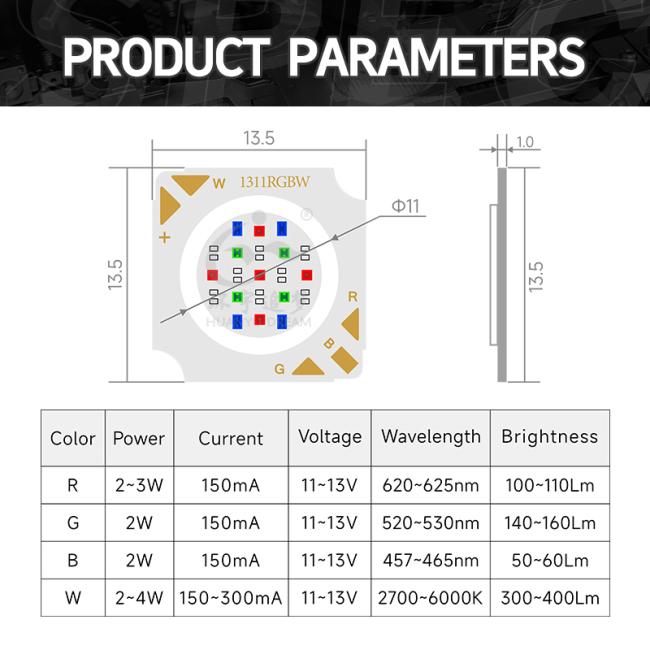

Red Green Blue White LED COB 10W 12V 4in1 cob led chip Packge Dimension(Units:mm)
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Electrical - Optical Characteristics at Ta=25℃
|
Type |
Symbol |
Test condition |
Value |
Unit |
||
| Min. | Typ. | Max. | ||||
| WaveLength(B) | λd | IF=150mA | 460 | -- | 470 | nm |
| WaveLength(R) | λd | IF=150mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=150mA | 520 | -- | 530 | nm |
| Correlated Colour Temperature | CCT | IF=300mA | 2700 | 3000 | k | |
| Luminous Flux(B) | φv | IF=150mA | 20 | 30 | LM | |
| Luminous Flux(R) | φv | IF=150mA | 70 | 90 | LM | |
| Luminous Flux(G) | φv | IF=150mA | 80 | 100 | LM | |
| Luminous Flux(W) | φv | IF=300mA | 800 | 1100 | LM | |
| Forward Voltage(B) | VF | IF=150mA | 10 | 12 | V | |
| Forward Voltage(R) | VF | IF=150mA | 10 | 12 | V | |
| Forward Voltage(G) | VF | IF=150mA | 10 | 12 | V | |
| Forward Voltage(W) | VF | IF=300mA | 10 | 12 | V | |
| Power(B) | PD | IF=150mA | 2 | W | ||
| Power(R) | PD | IF=150mA | 2 | W | ||
| Power(G) | PD | IF=150mA | 2 | W | ||
| Power(W) | PD | IF=300mA | 4 | W | ||
| Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 0.85 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Red Green Blue White LED COB 10W 12V 4in1 cob led chip Application
Production Process
Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.
Q4: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
Q5: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.
A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
