5047 High Power COB LED 500W Ra98 7200mA 3000K 4000k 5000k 6000K
High Power 500 Watts 5047 Cob Led Chip Ra98 7200mA
500W 5047 COB led Chip Specification
* Dimension 50.0 mm×50.0 mm×2.4 mm
* Wide viewing angle : 120°
* CRI: 97
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
5047 500W COB LED Details
Electrical - Optical Characteristics at Ta=25℃
|
Type |
Symbol |
Test condition |
Value |
Unit |
||
| Min. | Typ. | Max. | ||||
| Forward Voltage | VF | IF=7200mA | 72 | 74 | 76 | V |
| 3100-3300K | φ | IF=7200mA | 40000 | -- | 50000 | Lm |
| 5500-5700K | φ | IF=7200mA | 50000 | -- | 60000 | Lm |
| Viewing Angle | 2θ1/2 | IF=7200mA | 120 | Deg | ||
| Color Rendering Index | CRI | IF=7200mA | 97-- | --98 | -- | |
| Thermal resistance | Rth(j-s) | IF=7200mA | -- | -- | 0.67 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Power Dissipation | Pd | 500 | W |
| Forward Current | IF | 7200 | mA |
| Peak Forward Current | IFP | 7400 | mA |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |

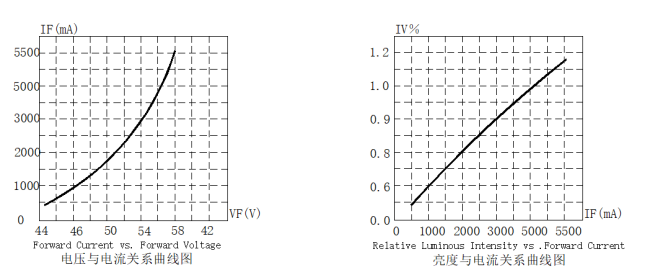

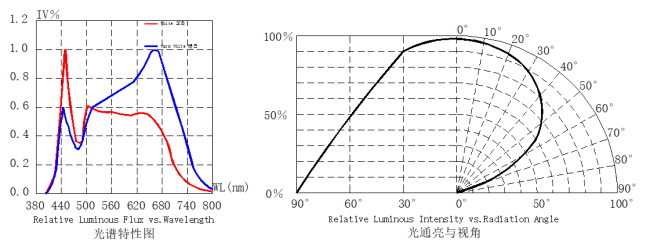

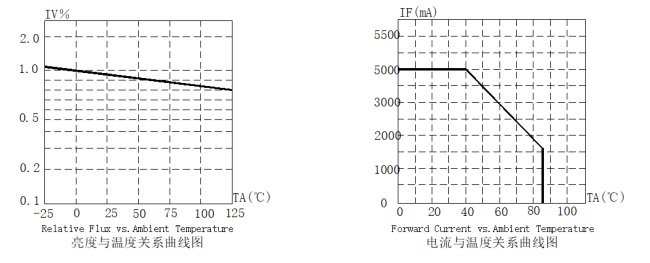

Optica Characteristic curve

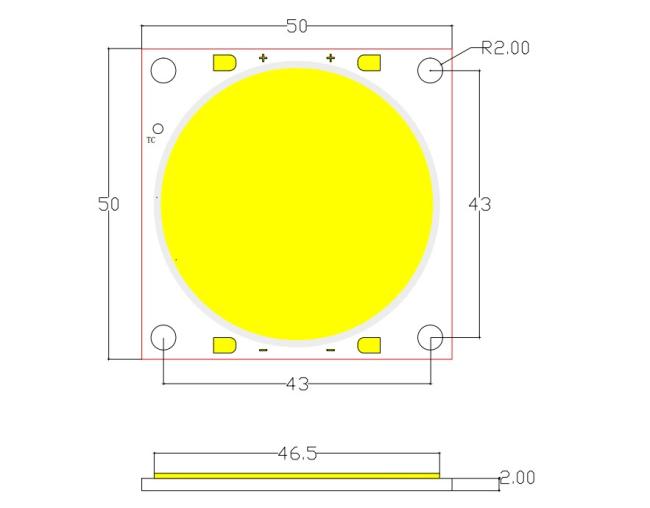

500W 5047 COB led Chip Package Dimension

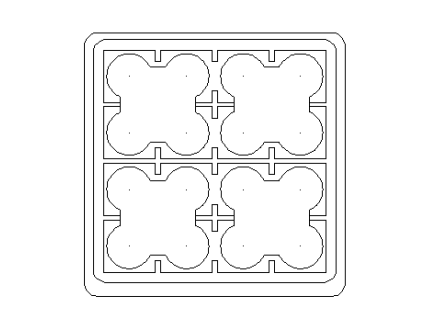

4PCS/Tray
10Tray/ESD Shieding Bag:40pcs

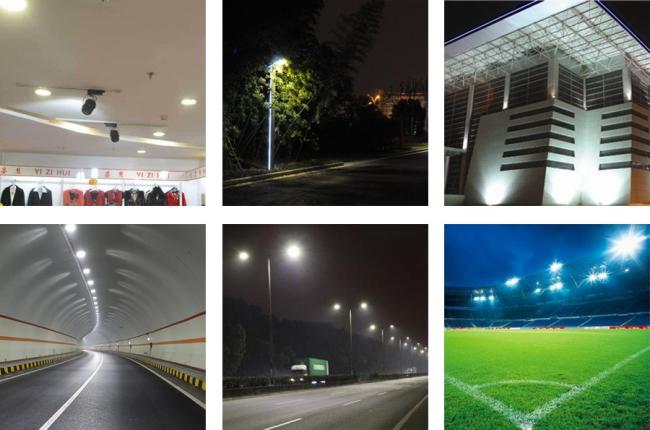

500W 5050 COB Led Chips Applications
* Indoor/outdoor lighting.
* Spot light
* Down light
* General use.
