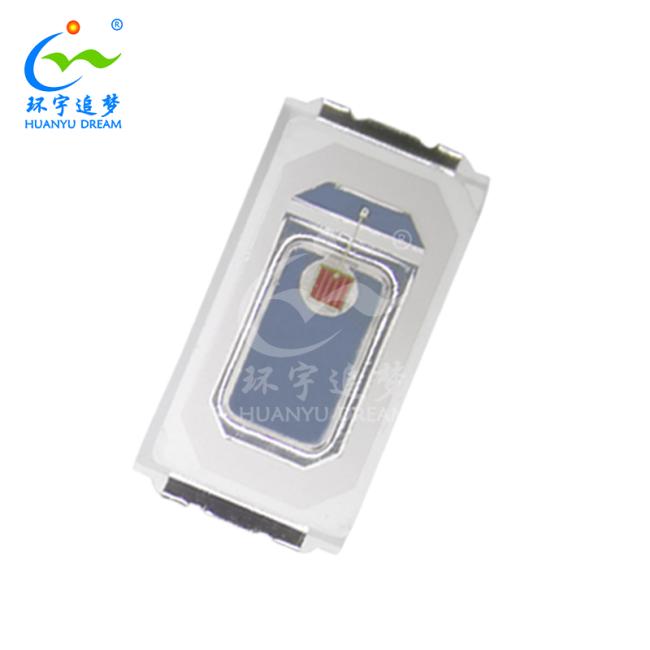

Red 5730 Smd Led Chip 0.5W 620nm 2V 150 MA 3 Year Warranty

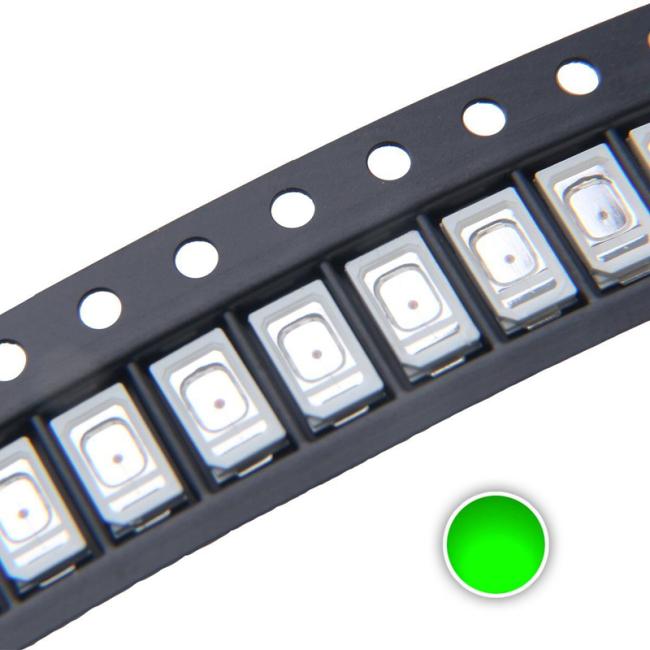

5730 Smd Led Chip 0.5W Red Color 620nm 2V 150 MA Smd Led Chip Types
5730 Smd Led Chip Description Feature
- Compact package size at 5.7mm*3.0mm.
- Various configurations of different voltage and die count to meet a wide range of application requirements.
- Deliver high efficacy and quality of light for distributed light source.
- Excellent color Reproduction.
- Available in a broad range of CCTs from 2600K to 6700K.
- Low thermal resistance.
- Environment-friendly.
- Long life span and high reliability.

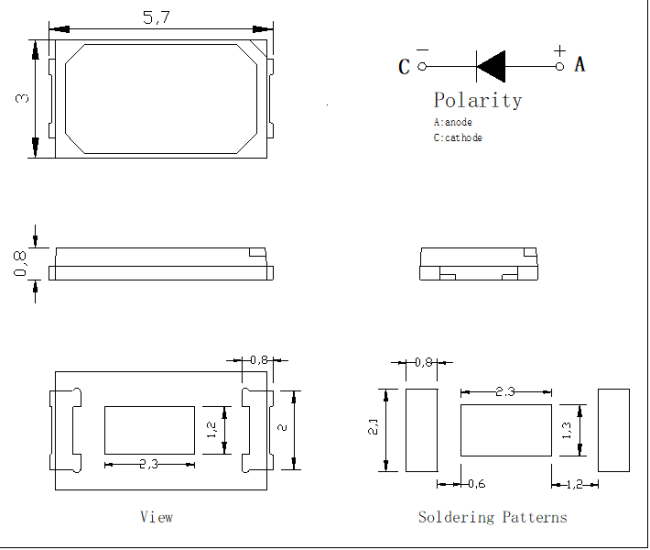

5730 Smd Led Chip Dimension (Tolerance:+/-0.1mm. Unit:mm)
Electrical / Optical characteristics
(1) Absolute Maximum Ratings (TA=25±5ºC)
| Item | Symbol |
Absolute Maximum Rating |
Unit |
| Forward Current | IF | 150 | mA |
| Pulse Forward Current | IFP | 200 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 600 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld |
Reflow Soldering: 260ºC Hand Soldering : 350ºC |
for 10sec. for 3sec. |
(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)
| Symbol |
Item |
Units |
Min. | Typ. | Max. |
Test Conditions |
| VF |
Forward Voltage |
V | 2.0 | 2.2 | 2.4 | IF=150mA |
| IR |
Reverse Current |
uA | - | - | 5 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=150mA |
| ø |
Luminous flux |
lm | 20 | 25 | IF=150mA | |
| IV |
Light intensity |
mcd | 6500 | 8000 | IF=150mA | |
| WLD |
Dominant wavelength |
nm | 620 | 625 | 630 | IF=150mA |
5730 Smd Led Chip Application
- High Power LED Lamp
- Indoor lighting: Fluorescent lamp, tube
- Commercial Illuminate and displays: Advertising words, light box
- Decorative Lighting: Light Strip
- Other illuminations
- Led back lighting
