1313 Bi-Color COB LED Chip 900lm-1100lm 2700K-5400K 12*2W 20-24V Ra 90
1313 Bi-Color COB Led Chip 900-1100lm 2700-5400K 12*2W 20-24V Ra 90

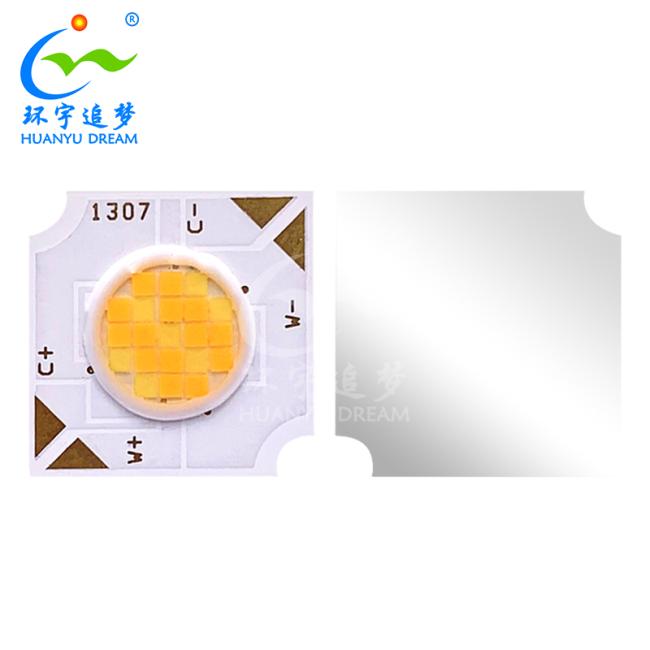

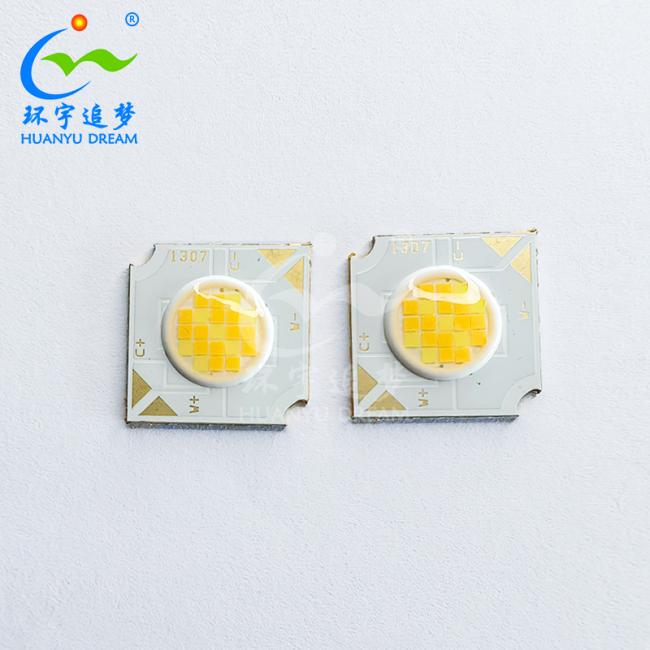

1313 Bi-Color COB Led Chip Introduction
* Dimension 13.50mm×13.50mm×1.5mm
* CRI: 90
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
1313 Bi-Color COB Led Chip Details
Electrical - Optical Characteristics at Ta=25℃
|
Type |
Symbol |
Test condition |
Value |
Unit |
||
| Min. | Typ. | Max. | ||||
| Forward Voltage | VF | IF=600mA | 18 | 20 | 22 | V |
| 2700K-2900K | φ | IF=600mA | 900 | -- | 1100 | Lm |
| 5400K-5800K | φ | IF=600mA | 1000 | -- | 1200 | Lm |
| Viewing Angle | 2θ1/2 | IF=600mA | 120 | Deg | ||
| Color Rendering Index | CRI | IF=600mA | 90 | -- | 93 | -- |
| Thermal resistance | Rth(j-s) | IF=600mA | -- | -- | 0.67 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
|
Parameter |
Symbol |
Rating |
Units |
|
Power Dissipation |
Pd |
12W*2 |
W |
|
Forward Current |
IF |
600 |
mA |
|
Peak Forward Current |
IFP |
700 |
mA |
|
Junction temperature |
Tj |
115 |
℃ |
|
Solder temperature |
Ts |
350 |
℃ |
|
Operating Temperature |
Topr |
-40 ~ + 85 |
℃ |
|
Storage Temperature |
Tstg |
-40 ~ + 100 |
℃ |
Optica Characteristic curve
1313 Bi-color COB Led Chip Package Dimension
1313 Bi-Color COB Led Chip Applications
Production Process
