Dual Color Tunable COB LED 2700K 6000K 12W+12W High CRI / TLCI
Dual Color 12W+12W Bi-Color COB LED Chip 2700K 6000K Tunable LED COB
- 2 Color in 1 Package Warm White and Cool White COB LED Chip
- 99.99% Pure Gold Wire
- High output and low energy usage
- Natural Color, Accurate Color Redering
- High CRI and TLCI
Dual Color COB LED Specifications
| Part No. | Size (MM) |
Light Area (mm) |
Voltage (V) |
Current (mA) |
Luminous (LM) |
CRI(Ra) | CCT(K) |
| HY-1310D2760-12*2W | 13*13mm | φ7mm | 20-24V | 600ma | WW: 900-1100lm CW: 1000-1200lm |
80 | 2000~7000K |
| HY-1917D2760-8*2W | 19*19mm | φ17mm | 20-24V | 300ma | WW: 550-750lm CW:800-1100LM |
70-98 | 2000~7000K |
| HY-2825D2760-50*2W | 28*28MM | φ25mm | 30-34V | 3200mA | 90-130LM/W | 70-98 | 2000~7000K |
| HY-5549D2760-200*2W | 55*55mm | φ49mm | 45-51v | 8000mA | 90-130LM/W | 70-98 | 2000~7000K |

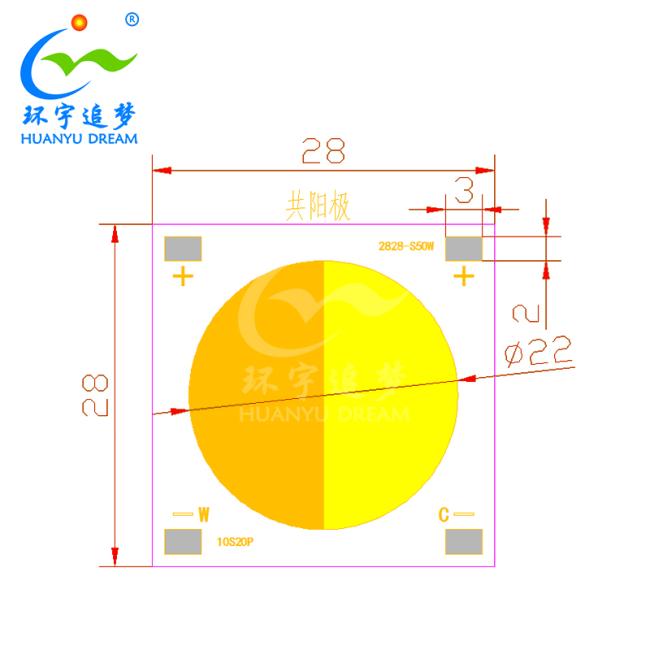

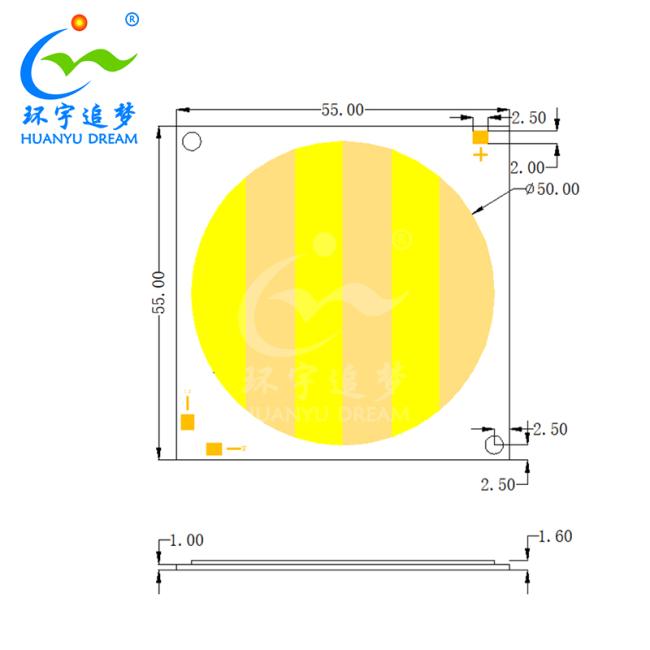

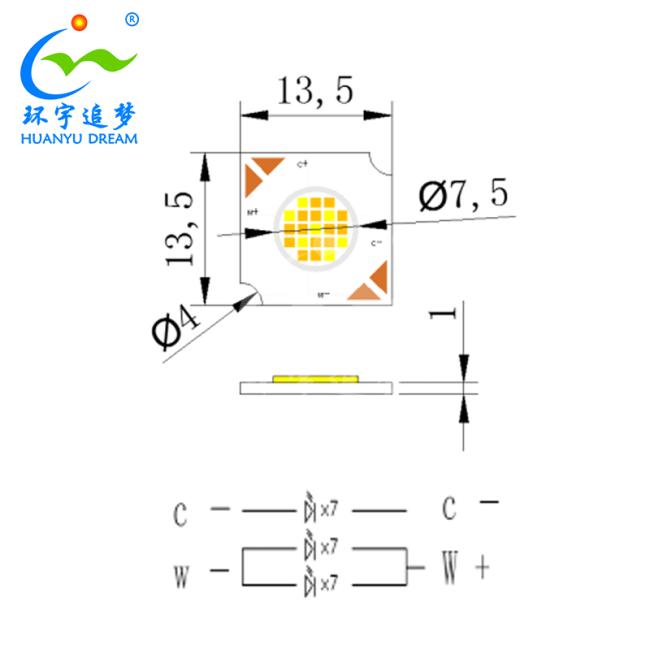

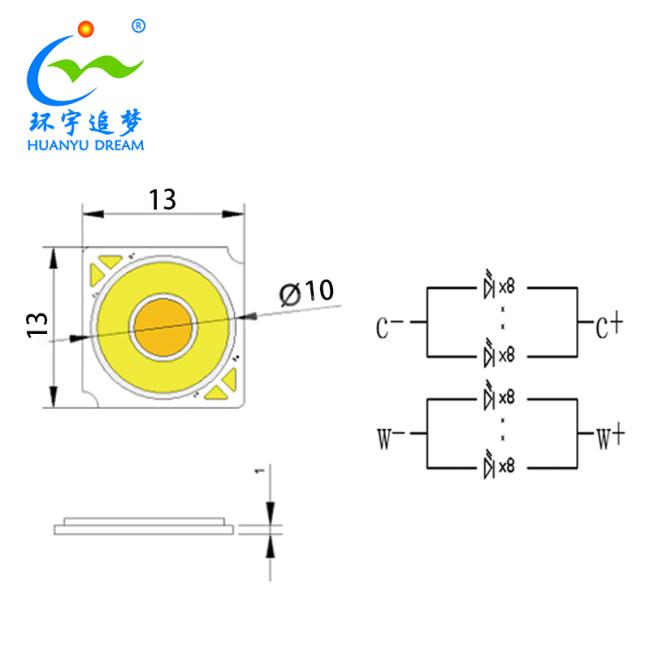

Bi-Color LED Chips Measurement
 |
 |
| HY-1310D2760-12*2W | HY-2825D2760-50*2W |
 |
 |
| HY-1917D2760-8*2W | HY-5549D2760-200*2W |
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
