CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant

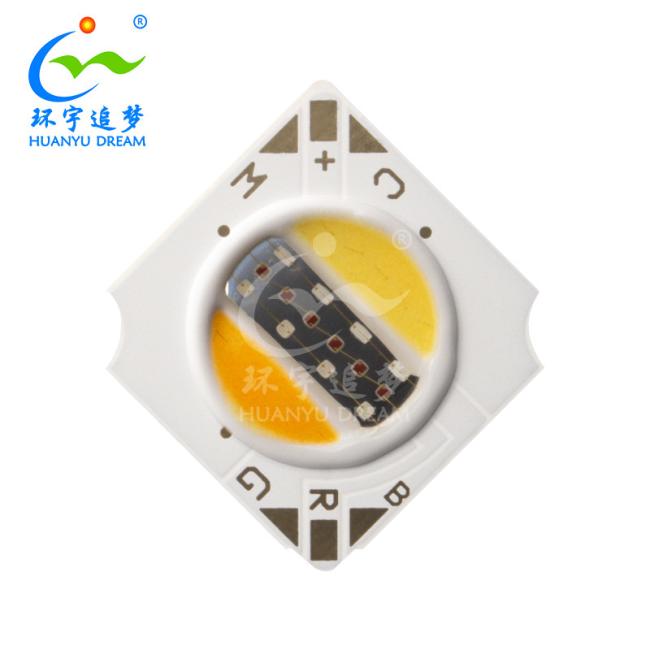

1313 Rgbcw Cob Led Chip Features
Dimension 13.5mm×13.5mm×1.5mm
Wide viewing angle : 120°
RoHS compliant
sulphation corrosion resistance
Manual Soldering
1313 Rgbcw Cob Led Chip Details
| Product Name | 1313 RGBCW COB |
| Model Number | JC-1311RGBCW-2760-9-F0 |
| Dimension | 13.5mm×13.5mm×1.5mm |
| Color Temperature | 2700K+6000K |
| Input Voltage(V) | 12V |
| CCT | R+G+B+CW+WW |
| Application | Smart lighting |
Package Dimension
| Item | Power | Color | Voltage | Current | Wd/CCT |
Series/ Parallel |
Brighness | CRI |
|
1313 COB LED RGB+WW+CW
|
9W |
Red |
10-12V |
150mA
|
620-625nm | 6S1P | 110-120LM | / |
| Green | 520-525nm | 4S1P | 120-130LM | / | ||||
| Blue | 460-465nm | 4S1P | 40-50LM | / | ||||
| WW | 2700K | 4S1P | 210-230LM | 90 | ||||
| CW | 6000K | 4S1P | 190-210LM | 90 |
Packaging Specifications
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Electrical - Optical Characteristics at Ta=25℃
|
Type |
Symbol |
Test condition |
Value |
Unit |
||
|
Min. |
Typ. |
Max. |
||||
|
WaveLength(B) |
λd |
IF=150mA |
460 |
-- |
465 |
nm |
|
WaveLength(R) |
λd |
IF=150mA |
620 |
-- |
625 |
nm |
|
WaveLength(G) |
λd |
IF=150mA |
520 |
-- |
525 |
nm |
|
Correlated Colour Temperature |
CCT |
IF=150mA |
2600 |
2700 |
2800 |
k |
|
5800 |
6000 |
6200 |
||||
|
Luminous Flux(B) |
φv |
IF=150mA |
40 |
|
50 |
LM |
|
Luminous Flux(R) |
φv |
IF=150mA |
110 |
|
120 |
LM |
|
Luminous Flux(G) |
φv |
IF=150mA |
120 |
|
130 |
LM |
|
Luminous Flux(C) |
φv |
IF=150mA |
190 |
|
210 |
LM |
|
Luminous Flux(W) |
φv |
F=150mA |
210 |
|
230 |
|
|
Forward Voltage(B) |
VF |
IF=150mA |
12 |
|
14 |
V |
|
Forward Voltage(R) |
VF |
IF=150mA |
12 |
|
14 |
V |
|
Forward Voltage(G) |
VF |
IF=150mA |
11 |
|
13 |
V |
|
Forward Voltage(C) |
VF |
IF=150mA |
12 |
|
14 |
V |
|
Forward Voltage(W) |
VF |
IF=150mA |
12 |
|
14 |
V |
|
Color Rendering Index |
CRI |
IF=150mA |
90 |
-- |
93 |
-- |
|
Power(B) |
PD |
IF=150mA |
|
2 |
|
W |
|
Power(R) |
PD |
IF=150mA |
|
2 |
|
W |
|
Power(G) |
PD |
IF=150mA |
|
2 |
|
W |
|
Power(C) |
PD |
IF=150mA |
|
2 |
|
W |
|
Power(W) |
PD |
IF=150mA |
|
2 |
|
W |
|
Thermal resistance |
Rth(j-s) |
IF=150mA |
-- |
-- |
0.85 |
℃/W |
Absolute Maximum Ratings at Ta=25℃
|
Parameter |
Symbol |
Rating |
Units |
|
Junction temperature |
Tj |
115 |
℃ |
|
Solder temperature |
Ts |
350 |
℃ |
|
Operating Temperature |
Topr |
-40 ~ + 85 |
℃ |
|
Storage Temperature |
Tstg |
-40 ~ + 100 |
℃ |
Applications
Smart lighting.
Stage lighting.
Spot light
Down light
General use.
