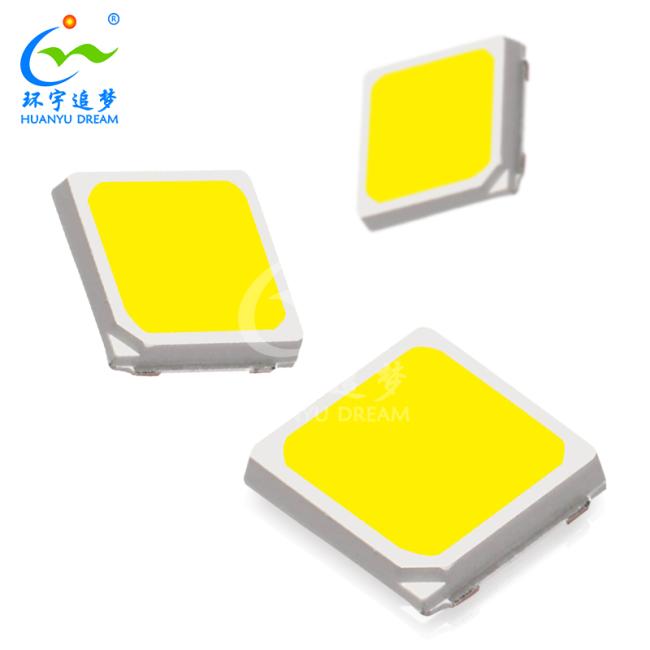

High Lumen 1W 22-24V 5050 Smd Led LED CHIP 220LM White Chip Led Smd For Street Light
The High Lumen 1W 22-24V 5050 SMD LED Chip delivers superior lighting performance with an efficiency of 230-240lm/W, making it an economical and energy-saving solution for industrial and outdoor lighting applications.
- Compact EMC/PCT design with low dissipation
- Super efficiency performance up to 230-240lm/W

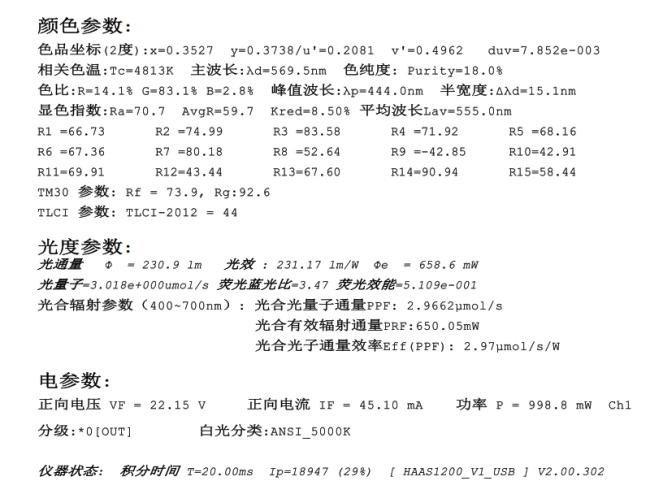

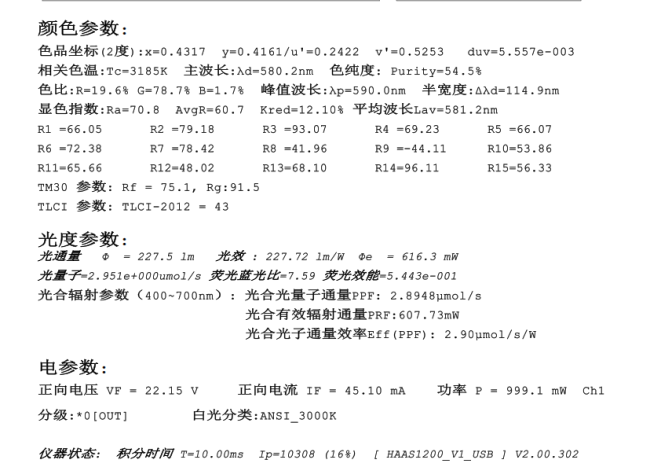

- High reliability with test report available
- Ideal for outdoor lighting, street lights, industrial luminaires, and LED bay lights
- Gold wire construction enhances product lifespan
- Energy-efficient and stable under long-term industrial conditions
| Models | HY-5050W50B230-8S | HY-3030W30B220-8S |
|---|---|---|
| Color temperature | 5000K | 5000K |
| CRI | 70Ra | 70Ra |
| IF | 45mA | 45mA |
| Voltage | 22-24V | 22-24V |
| Efficiency | 230-240LM/W | 220-230LM/W |
| Lumen | 230-240lm | 220-230lm |

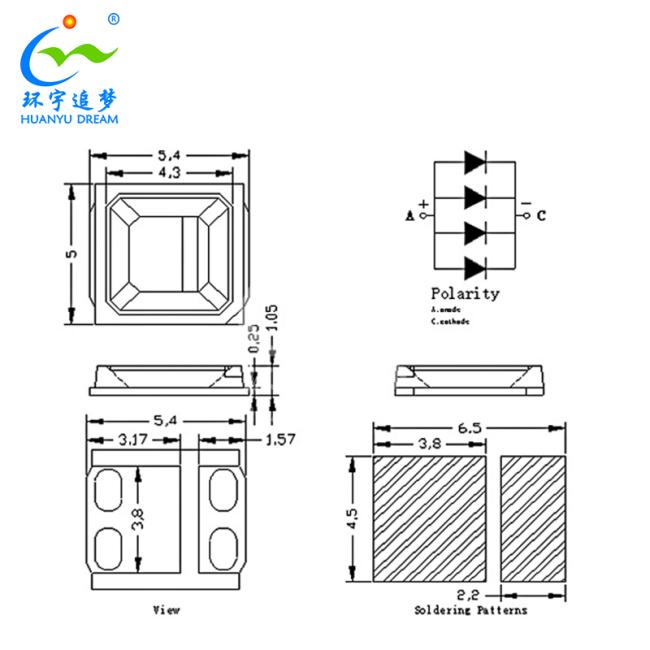

| WHOLE SIZE | 5.0*5.0mm | 5.0*5.0mm |
| CHIP | Sanan/Epistar | Sanan/Epistar |
| VIEW ANGLE | 120° | 120° |
| Leading time | 7-10days | 7-10days |
| Item | Symbol | Absolute Maximum Rating | Unit |
|---|---|---|---|
| Forward Current | IF | 45 | mA |
| Pulse Forward Current | IFP | 60 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 1055 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering: 300ºC | for 10sec. for 3sec. |
| Symbol | Item | Unit | Min. | Typ. | Max. | Test Conditions |
|---|---|---|---|---|---|---|
| VF | Forward Voltage | V | 22.0 | 22.4 | 24.0 | IF=45mA |
| IR | Reverse Current | uA | - | - | 1 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=45mA |
| ø | Luminous flux | lm | 230 | 240 | IF=45mA | |
| TC | Colour Temperature | k | 4500 | 5000 | 5500 | IF=45mA |
| RA | Color Rendering Index | Ra | 70 | - | 75 | IF=45mA |
| Type | Test Item | REF. Standard | Test condition | Duration | Sample count | Accept |
|---|---|---|---|---|---|---|
| Environmental test | Temperature Cycle | JESD22-A104-A | -40℃~25℃~100℃~25℃ 30min,5min,30min,5min | 100 cycles | 100 | 0/100 |
| Thermal shock | JESD22-A106 | -40℃~100℃ 30min, 30min | 100 cycles | 100 | 0/100 | |
| High Temperature Storage | JEITA ED-4701 200 201 | TA=100℃±5℃ | 1000 Hrs | 100 | 0/100 | |
| Low Temperature Storage | JEITA ED-4701 200 202 | TA=-40℃±5℃ | 1000 Hrs | 100 | 0/100 | |
| Humidity Heat Storage | JIS C 7021 (1977)B-11 | Ta=60℃ RH=85% | 1000Hrs | 100 | 0/100 | |
| Life test | Life test | JESD22-A108-A | Ta=25℃ If=45mA | 1000Hrs | 100 | 0/100 |
| High humidity Heat life test | JESD22-A101 | Ta=60℃ RH=85% IF=45mA | 1000Hrs | 100 | 0/100 |
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: Our products are produced under strict quality control with a defective rate less than 0.2%. During the guarantee period, we will send replacements for any faulty items.
A: MOQ is 100pcs for each model.
A: We usually ship by DHL, UPS, FedEx or TNT, arriving in 5-7 days. Airline and sea shipping are also available.
A: First, inform us of your requirements. Second, we'll provide a quote. Third, confirm samples and place order.
A: Yes. Please inform us before production and confirm the design based on our sample.
A: Yes, we offer 3 years warranty for our products.
A: Samples take 1-3 days, mass production takes 3-7 days depending on order quantity.
