Surface Mount 2835 Red Infrared Red 660nm 620nm 730nm SMD LED Chip 0.5W 1W 3V 150mA Wide Viewing Angle for Outdoor warning lights
Price:
Negotiable
MOQ:
2000pcs
Delivery Time:
7-9 Work Days
Brand:
HuanYu Dream
Product Description
Surface Mount 2835 Red Infrared Red 660nm 620nm 730nm SMD LED Chip
0.5W 1W 3V 150mA Wide Viewing Angle for Outdoor warning lights
Product Description
Surface Mount LEDs 2835 Smd Led Chip Red 3V 150mA 0.5W for Outdoor warning lights

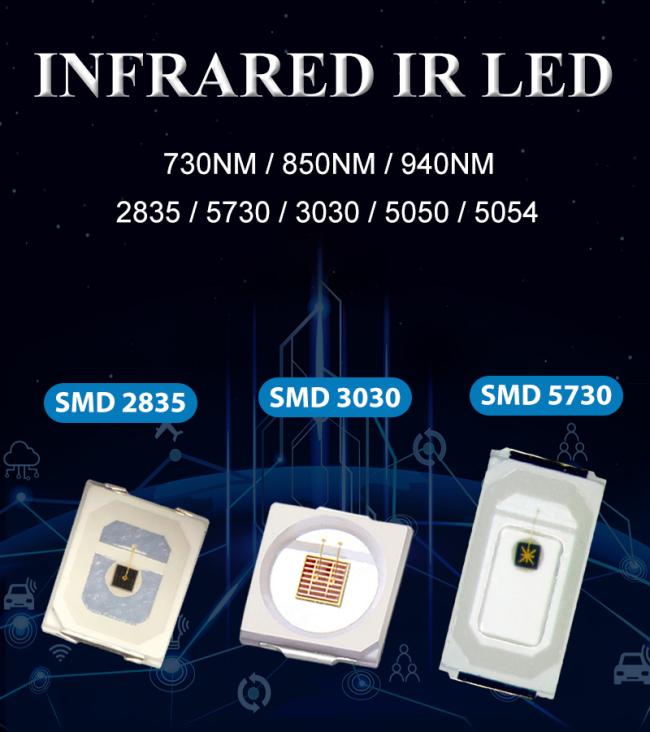

LED SMD 2835 Red Introduction
2835 SMD LED Diode, Plcc-2 Surface Mount SMT 2835, Gold wire, copper bracket, Epistar chip, long lifespan, Super high brightness, Wide Viewing Angle: 120 Degrees
Parameters: DC 3.0V-3.2V Volt 150mA; 2.0-2.2v 60mA (Red/Infared Red), Size: 2.8 X 3.5 X 0.7 (mm), Anode and Cathode Polarity: Please Refer to A+ page, Surface-Mount Device, Pack of 100 Pieces LED diode(mini Chip)
CUSTOMIZE YOUR LIFE: Light up your dashboard with a unique pop of color unlike anyone else. Replace the LEDs in your car dash, truck, motorcycle instrument cluster, xbox controller, or anywhere else. Outstanding value for brightness.
ENDLESS POSSIBILITIES: 4000's of creative uses, whether you want to light up your car, truck, boat, house, our high quality Surface Mount SMD PLCC-2 2835/3030/5050/3528/7070 LEDs are just what you need. The project ideas are endless, and we love seeing new ways our customers use our LEDs. Send us your application photos!
LIFETIME GUARANTEE: We sell products that last. Our rock-solid guarantee means we'll replace you it if there's ever a problem. Pass it on to the next generation with confidence.
LED SMD 5730 Red Dimension (Tolerance:+/-0.1mm. Unit:mm)
LED SMD 2835 Red Details
Initial Electrical/Optical Characteristics (TA=25 ±5ºC)
| Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
|---|---|---|---|---|---|---|
| VF | Forward Voltage | V | 2.0 | 2.4 | IF=150mA | |
| IR | Reverse Current | uA | - | - | 5 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=150mA |
| ø | Luminous flux | lm | 20 | 25 | IF=150mA | |
| IV | Light intensity | mcd | 6500 | 8000 | IF=150mA | |
| WLD | Dominant wavelength | nm | 620 | 625 | 630 | IF=150mA |
Absolute Maximum Ratings (TA=25±5ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
|---|---|---|---|
| Forward Current | IF | 150 | mA |
| Pulse Forward Current | IFP | 200 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 600 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 350ºC | for 10sec. for 3sec. |

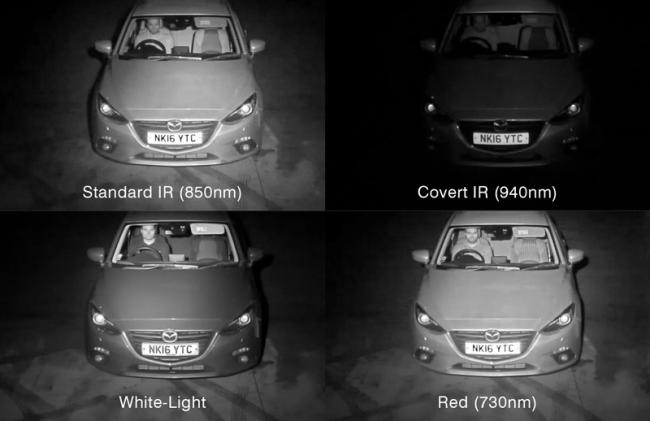

LED SMD 2835 Red Application
- High Power LED Lamp
- Indoor lighting: Fluorescent lamp, tube
- Commercial Illuminate and displays: Advertising words, light box
- Decorative Lighting: Light Strip
- Other illuminations
- Led back lighting
FAQ
Q1: Could I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.
Q2: Are you a factory or a trade company?
A: We are the manufacturer specialize in smd and cob led chips since 2013 in Shenzhen China.
Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 8-15 working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
Q6: How to process the order?
A6: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
6. We will let you know the lead time and update the newly shipping information in time.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
6. We will let you know the lead time and update the newly shipping information in time.
