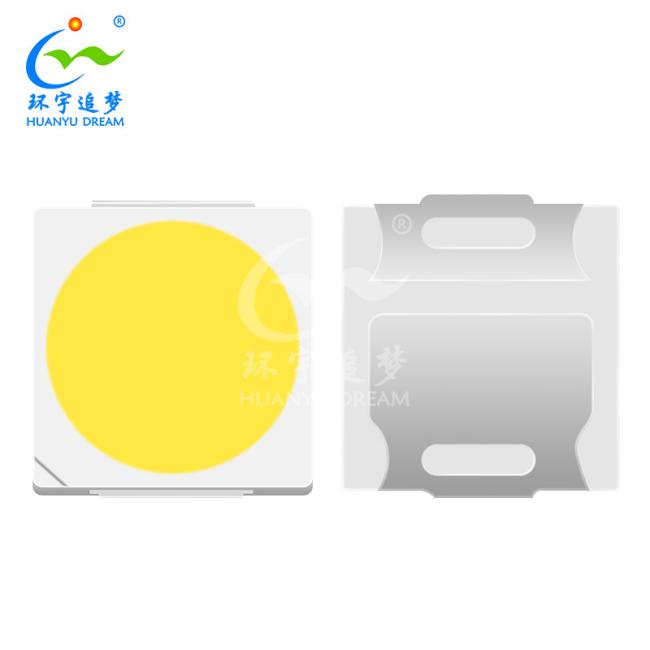

SMD 5054 High Efficiency 225-235LM/W@45mA 18V White LED CHIP
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-9 Work Days
Brand:
HuanYu Dream
Product Description
SMD 5054 High Efficiency 225-235LM/W@45mA 18V White LED CHIP
High-performance SMD 5054 LED chip delivering exceptional luminous efficacy and energy efficiency for professional lighting applications.
Key Features--SMD 5054 High Efficiency LED CHIP
- Model: 5054 packaged LED
- Power Consumption: 2 watts
- Voltage: 18 volts
- Color: Neutral white (4000K)
- High Efficiency: Ultra-high luminous efficacy and extremely energy-efficient (225-235 lumens/watt)
Product Specifications--High Efficiency SMD 5054 LED CHIP
| Attribute | Value |
|---|---|
| Model | HY-5054W40L215-18V6S |
| Current(mA) | 150mA |
| Voltage(V) | 16-18V |
| Color | 4000K(3850-4150K) |
| CRI(Ra) | 70 |
| Efficiency(lm/w) | 225-235LM/W@45mA |
| Substrate | PCT |
| Customizable | Support |
Technical Specifications--SMD High Efficiency 5054 LED
| Parameter | Specification |
|---|---|
| Electronic power | 2W |
| Color Temperature | 4000K(3850-4150K) |
| Current(IF) | 150mA |
| VF | 16-18V |
| Light Efficiency | 225-235lm/w@45mA |
| CRI | 70 |
| Lumen | 215-225LM |
| Whole Size | 5.0*5.4mm |
| Chip | Sanan/Epistar |
| View Angle | 120° |
| Warranty | 3 years |
Package Size--SMD 5054 LED CHIP
Applications--High Efficiency SMD 5054 LED CHIP
Commercial lighting Energy-sensitive applications including office, classroom, and supermarket lighting. Industrial lighting Large spaces with extended operating times such as factories, parking lots, and train stations. High-end residential lighting Critical areas requiring clear and comfortable illumination including kitchens and studies. Series lighting fixtures Lighting fixtures suitable for high-voltage series driving applications such as fluorescent tubes and linear lights.
