2W 4W 5050 5054 SMD LED RGBW 4 In 1 High Brightness LED Chip for Stage and Decorative Lighting
2W 4W 5050 SMD LED Chip RGBW 4-Chip-Built-In RGBW 5050 SMD 4 In 1 SMD 5050 RGBCW LED Light
Product Overview
✅ Lower Cost, High Cost-Effectiveness
The price of a single 5050 LED chip is significantly lower than that of 10W/18W imitation lumen LED chips, reducing the overall material cost of the lamp by 30%~50%.
Suitable for budget-conscious scenarios such as economical stage lights, bar ambient lighting, and wedding color-changing lights.
✅ More Uniform Light Efficiency, No Obvious Light Spots
The small size and high density of 5050 LED chips allow for dense arrangement on the light panel, resulting in softer and more uniform light emission, avoiding the "grainy" light spots common with imitation lumen LED chips.
Ideal for soft PAR lights, wall washer lights, and ambient color-changing lights, providing a more natural transition in lighting for people/scenes.
✅ Lower Heat Dissipation Pressure, More Flexible Structural Design
With a single chip power of only 0.2W~0.5W, the total heat generated by the entire lamp is far lower than high-power LED chip solutions, allowing for a simplified heat dissipation structure and a thinner, lighter lamp body.
Easy to make ultra-thin flat PAR lights, battery-powered wireless lights, and portable stage lights, suitable for mobile performances and small events.
✅ High control precision and delicate color transitions
Supports independent dimming for individual LEDs (DMX512/SPI), enabling pixel-level control for smoother effects such as gradients, running lights, and dynamic visuals.
Suitable for LED matrix lights, background walls, and interactive stage installations, offering enhanced visual impact.
5054 SMD LED RGBW 4in1, available in 0.2W, 0.8W, 2W, 4W power ratings. Features 4-channel separate control with excellent light and color mixing capabilities. Delivers high brightness and superior light efficiency.
- 1W monochrome, 4W total 4-channel separate control
- Superior light and color mixing performance
- High brightness and high light efficiency
- Compact, convenient, and flexible design
| Model No. | RGBW SMD 5054 LED HY-5054W40-2W |
|---|---|
| LED Package | 5.0mm*5.4mm |
| Data Color | Red | Green | Blue | White |
| Wave Length | 625nm-635nm | 520nm-530nm | 465nm-475nm | 2000-7000K |
| Flux | 20-25LM | 33-38LM | 10-12LM | 58-63LM |
| Typical Forward Voltage | 2.0-2.4V | 3.0-3.4V | 3.0-3.4V | 3.0-3.4V |
| DC Forward Current | 150mA*4 |
| Typical Power Dissipation | 2W |
| Model No. | RGBW SMD 5054 LED HY-5054W40-4W |
|---|---|
| LED Package | 5.0mm*5.4mm |
| Data Color | Red | Green | Blue | White |
| Wave Length | 625nm-635nm | 520nm-530nm | 465nm-475nm | 4000-7000K |
| Flux | 38-43LM | 75-80LM | 17-19LM | 120-130LM |
| Typical Forward Voltage | 2.0-2.4V | 3.0-3.4V | 3.0-3.4V | 3.0-3.4V |
| DC Forward Current | 300mA*4 |
| Typical Power Dissipation | 4W |
| Emitting Color | RGB | W |
| Viewing Angle | 120° |
| Operating Temperature | -40℃～+100℃ |
| Storage Temperature | -40℃～+100℃ |
- High Power LED Lamp
- Down light, wall lamp, garden light

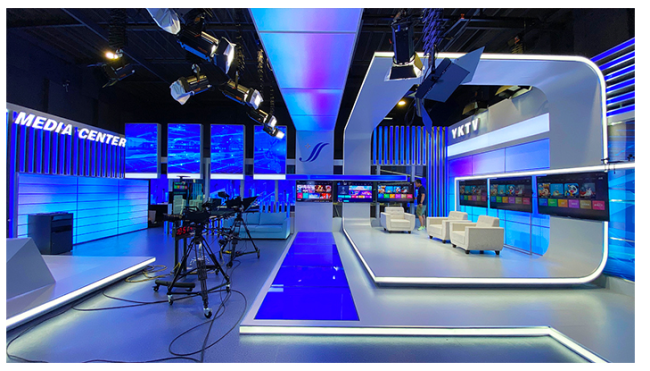

- Stage lighting
- Spot lighting, ceiling light
- Decorative lighting, show lighting
- Landscape lighting, lighting engineering
